Battery ready
UPS-level switching

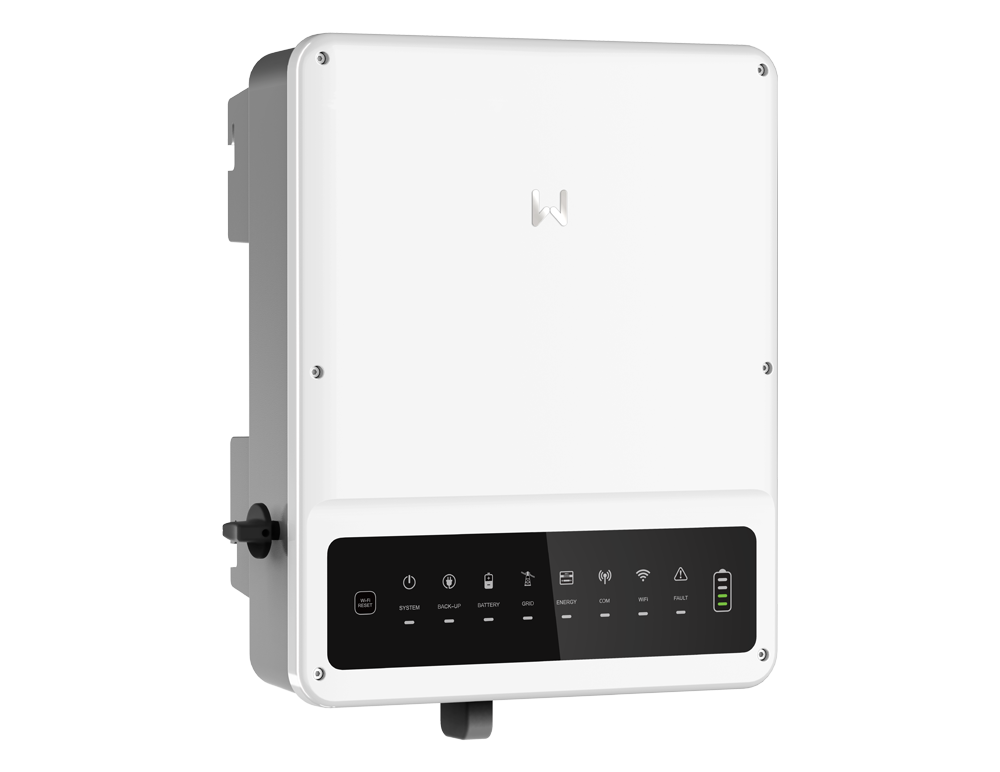

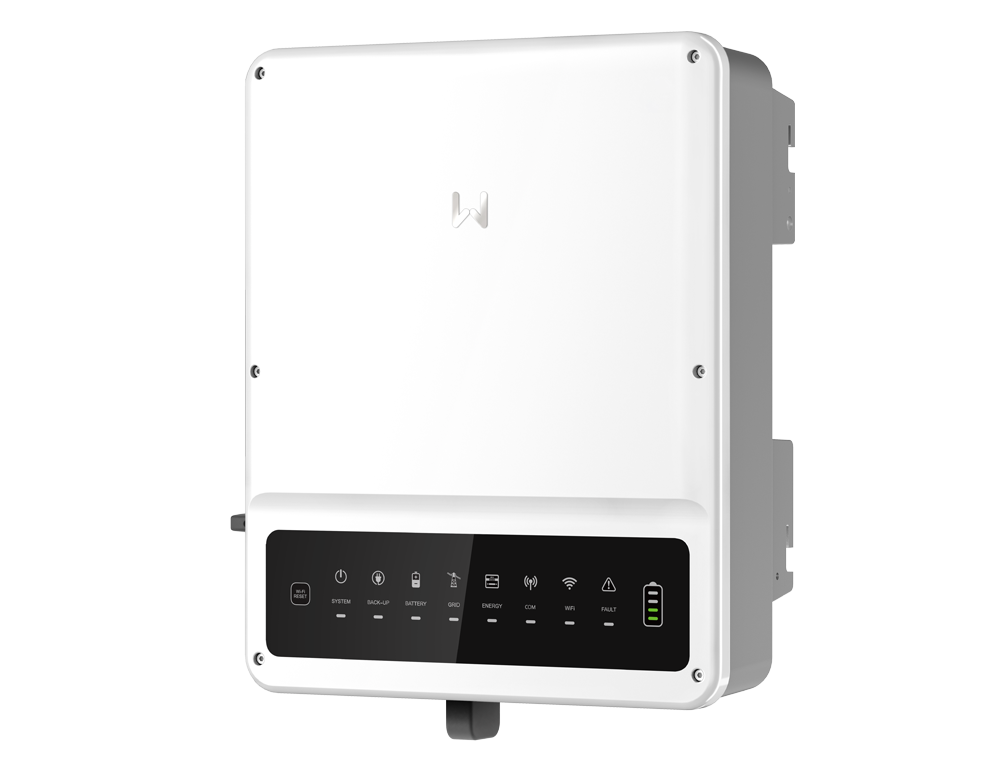

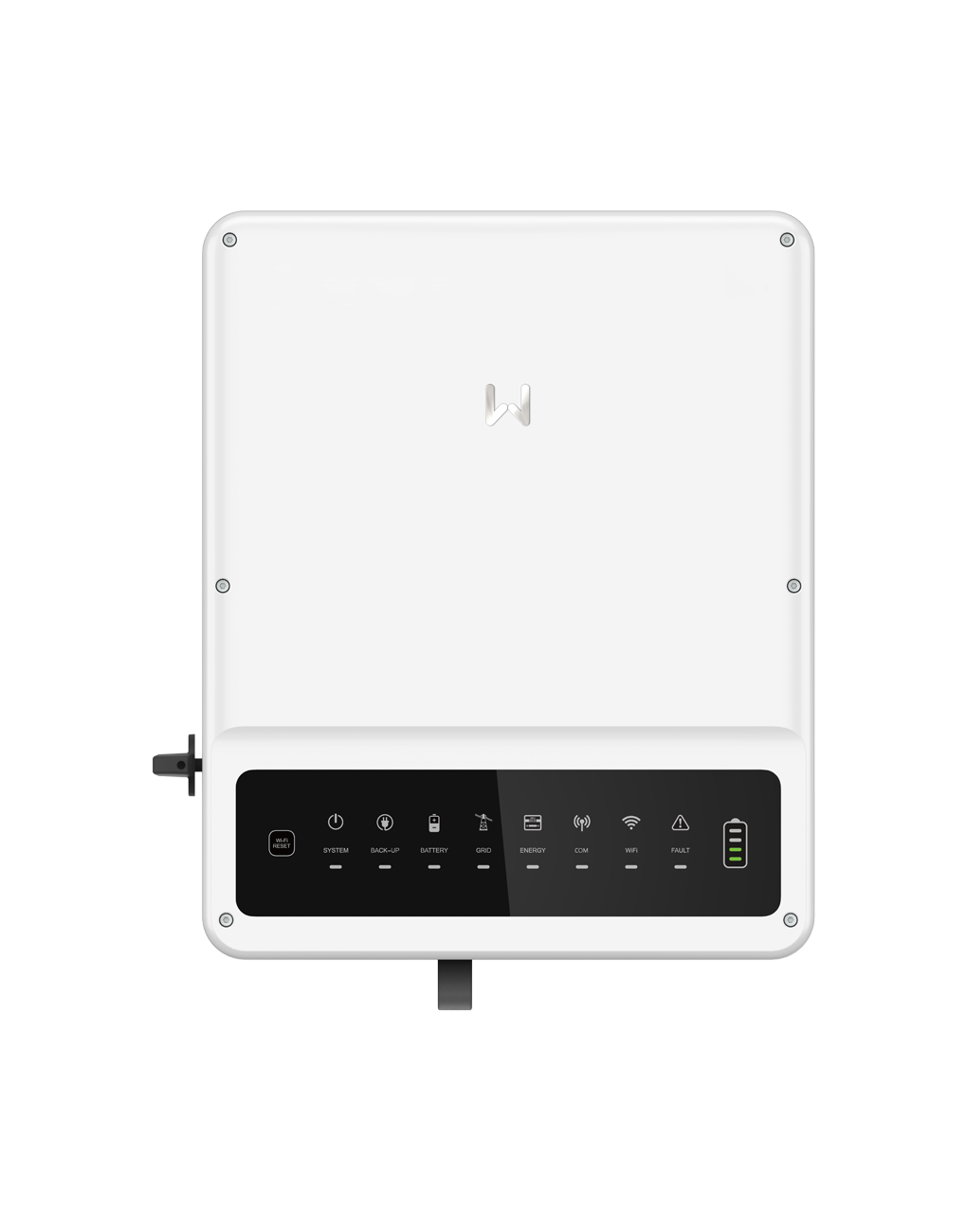

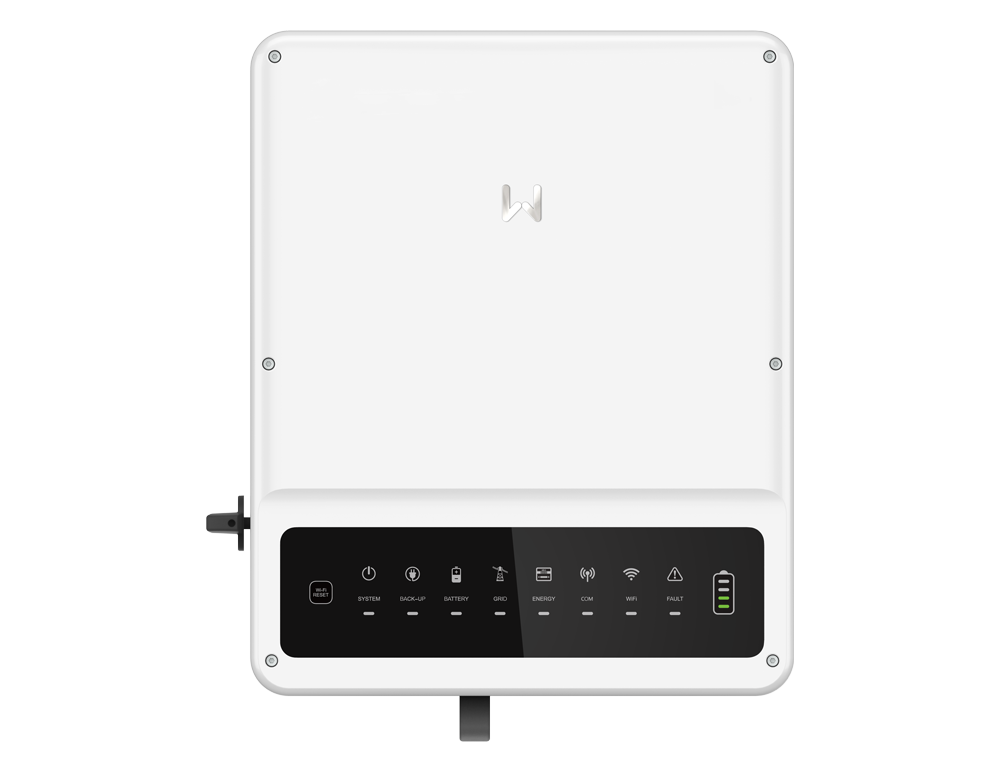

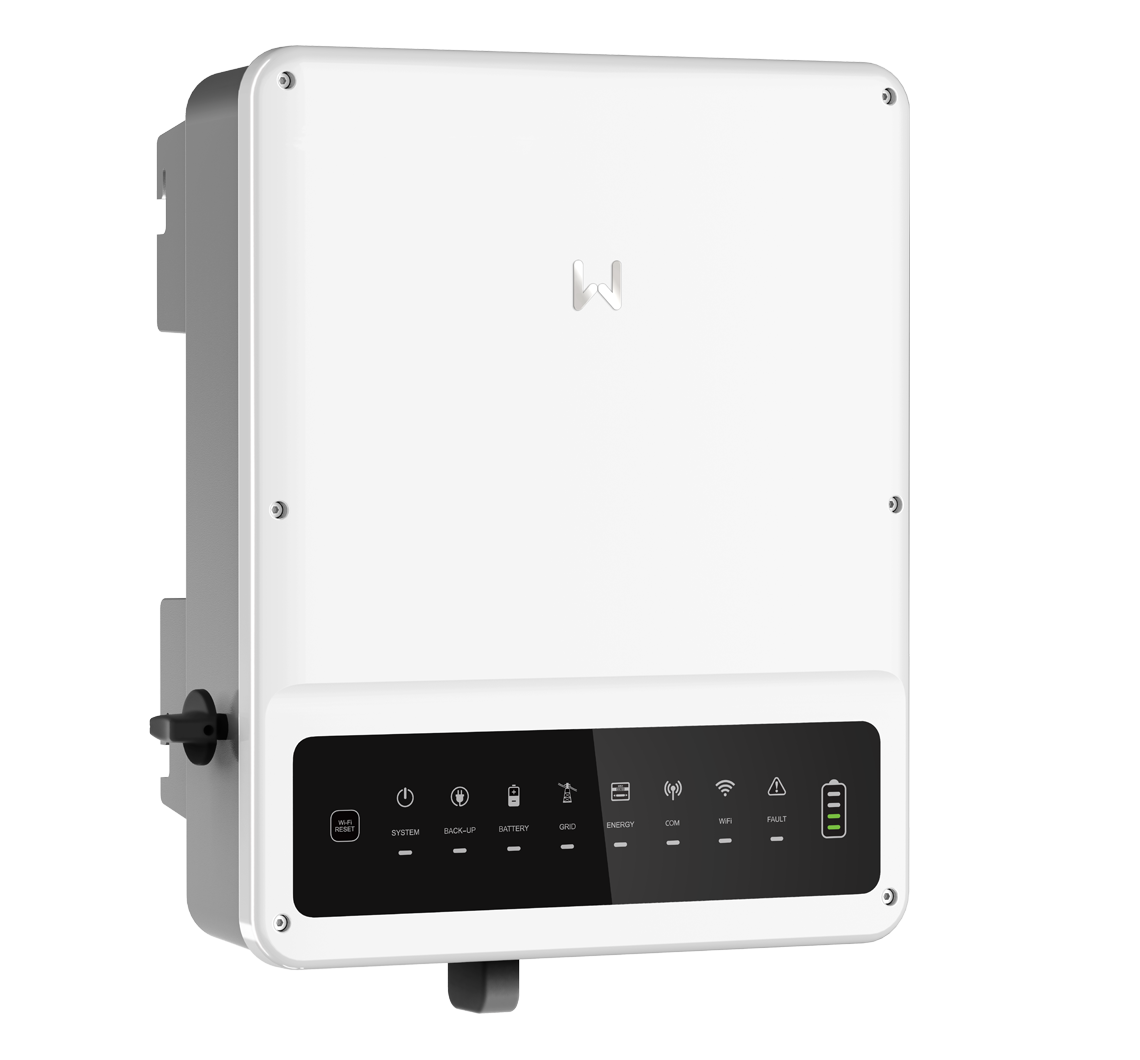

The GoodWe EH Series is a single-phase, grid-tied inverter that includes a “Battery Ready” option for users who might wish to add a full energy storage solution in the future. By simply purchasing an activation code, the EH can easily be upgraded to a complete energy storage solution. The EH is compatible with high voltage batteries (85-450 V) and can automatically switch to back-up mode in less than 10 milliseconds (UPS-level), ensuring that critical loads experience no interruption. With a power deviation lower than 20W, this inverter is designed to maximize self-consumption. In addition, the fact that it takes less than 9 seconds to switch from grid to PV, to supply power for heavy loads, helps users to avoid expensive intakes from the grid. The communication cables come pre-wired, reducing installation time significantly. The Plug & Play AC connector also makes operation and maintenance much more convenient.
Maximize self-consumption
Large loads on back-up
<10 ms UPS-level switching
Wide battery voltage range 85~450V
Battery ready
UPS-level switching
Maximize Self-consumption
The power deviation from the inverter’s AC output to load consumption can be as low as 20W, maximizing solar energy consumption.
Besides, it takes less than 10 ms to switch from grid power supply to PV supply when heavy loads start up, reducing expensive power intakes from the grid.
Easy to Install and Maintain
The pre-wired communication cables reduce installation time significantly. The Plug & Play AC connector also makes operation and maintenance much more convenient.
Compact design
Pre-wired communication cables
Plug & Play AC connectors
OVERVIEW
Model
GW6000-EH
Battery Voltage Range (V)
85~460
Max. Continuous Charging Current (A)
25/25
Max. Continuous Discharging Current (A)
12.5/12.5
Number of MPP Trackers
6000/6600 (CEI 0-21)
Number of Strings per MPPT
6000
Model
GW5000-EH
Battery Voltage Range (V)
85~460
Max. Continuous Charging Current (A)
25/25
Max. Continuous Discharging Current (A)
12.5/12.5
Number of MPP Trackers
5000/5500 (CEI 0-21)
Number of Strings per MPPT
5000
Model
GW3600-EH
Battery Voltage Range (V)
85~460
Max. Continuous Charging Current (A)
25/25
Max. Continuous Discharging Current (A)
12.5/12.5
Number of MPP Trackers
3600/3960 (CEI 0-21)
Number of Strings per MPPT
3600
