Plug & Play
IP55

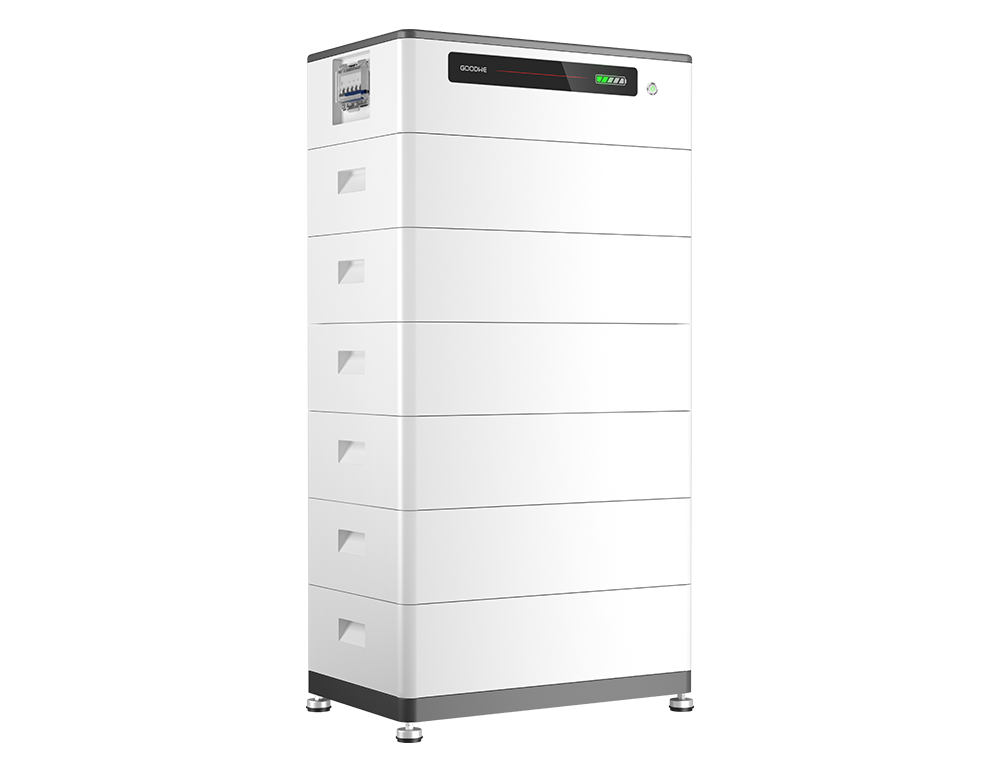

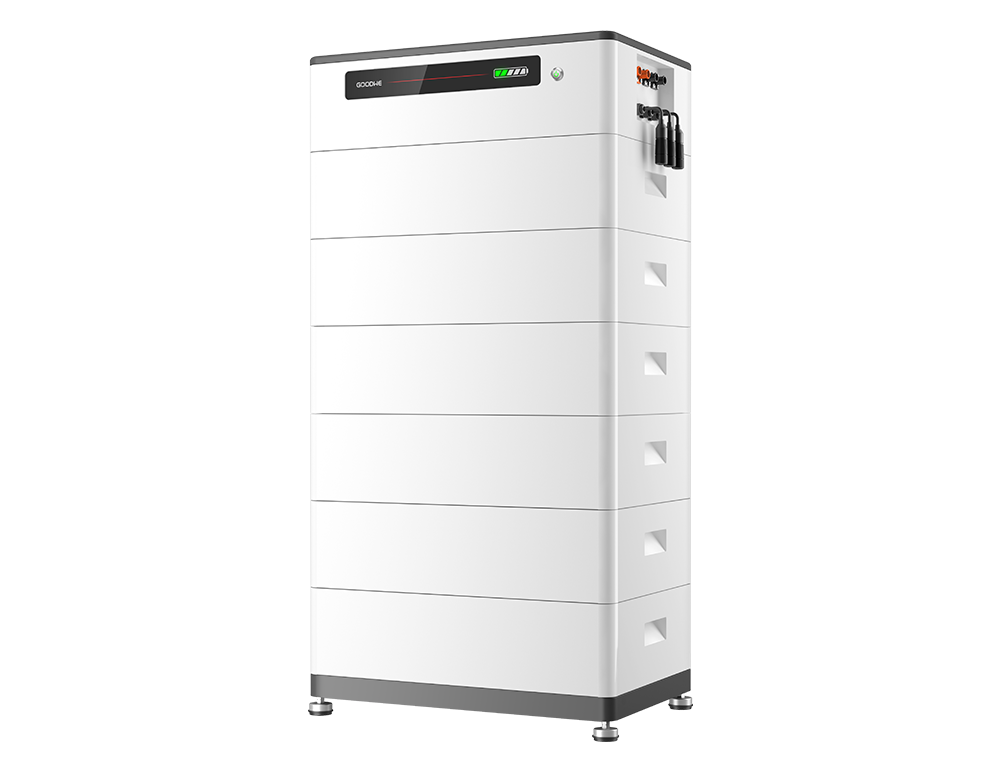

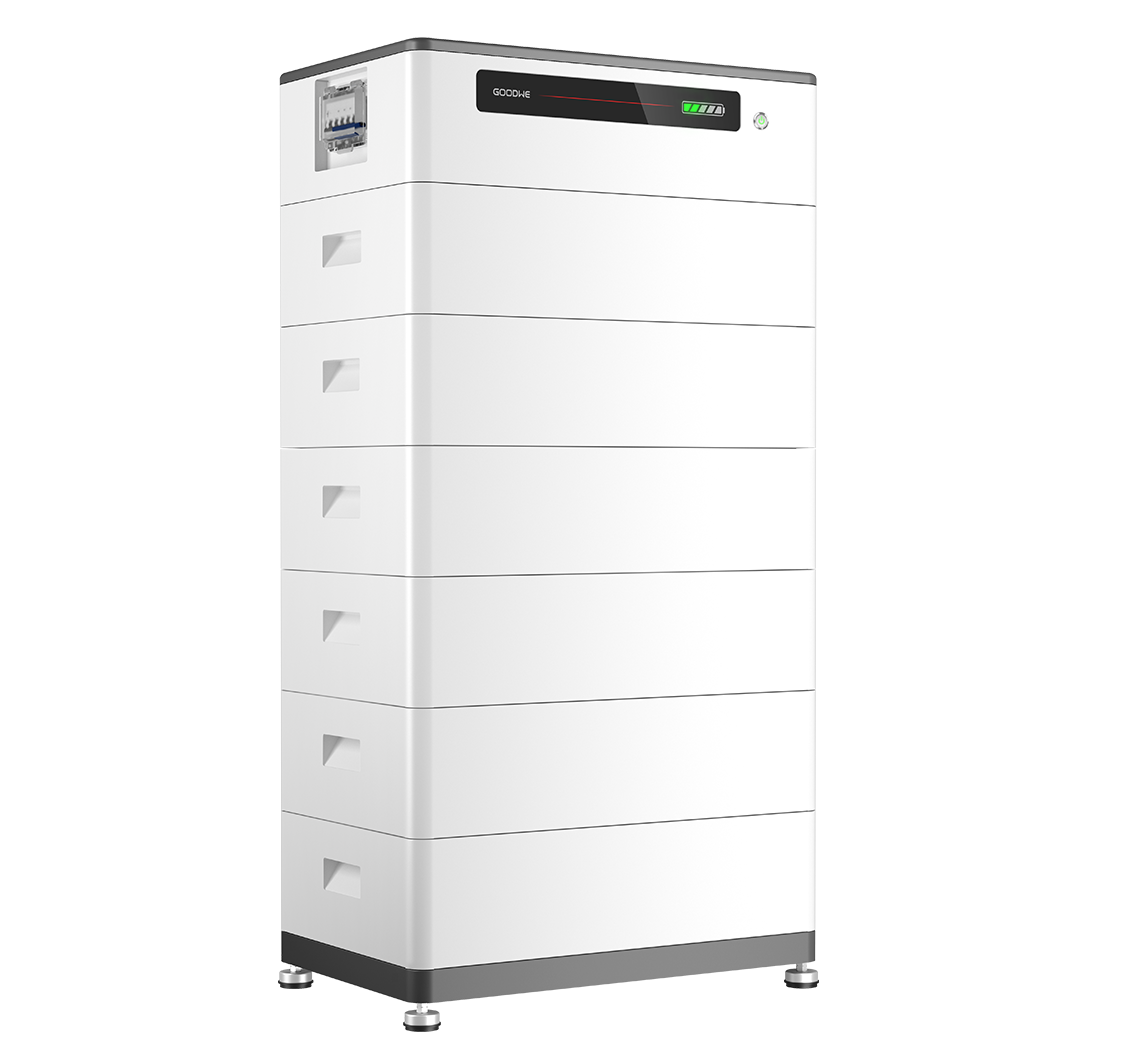

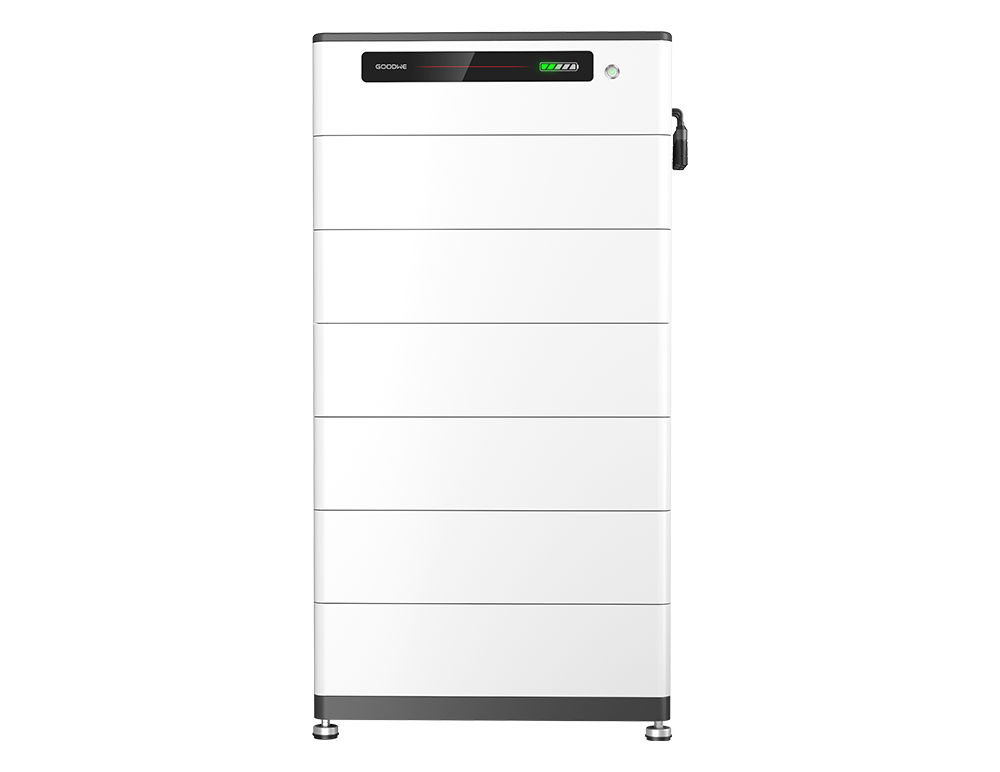

The GoodWe Lynx F G2 Series high-voltage battery provides the ideal modular energy storage solution, when combined with the compatible GoodWe EH and ET series inverters . With a capacity range of 6.4 kWh to 28.8 kWh and the option to expand through parallel connection of up to 8 towers, the Lynx F G2 Series provides a battery solution for systems of all sizes, from residential homes to commercial properties.
Installation and maintenance of the system are made easy with the stackable self-detecting modules. The reliable lithium iron phosphate (LFP) battery cell technology ensures maximum safety and a longer life cycle.
Remote diagnosis & update via inverter
Reliable LFP technology with high cycle stability
Flexible capacity and stackable modules
Up to 8 towers in parallel (230 kWh)
Plug & Play
IP55
Smart Control for Smart Energy
Lynx F G2 Series accommodates smart remote monitoring of the whole energy storage system and remote update. It can also automatically reboot if the supply voltage is high enough again after an undervoltage fault occurs. Take smart control of your smart energy.
Remote diagnosis & update
Auto reboot after undervoltage
Friendly & Thoughtful Design
The stackable auto-recognition modules are built for ultra-simplified assembly, and pre-wired communication cables provide Plug & Play wiring to skip the complex internal wiring and commissioning, bringing fast installations for an easy start.
Stackable auto-recognition modules
Plug & Play wiring
Flexible & Adaptable Applications
Featuring compatibility with GoodWe EH/ET energy storage inverters, Lynx F G2 Series is an ideal choice to support the GoodWe one-stop energy storage solution. It accommodates remote monitoring of the whole energy storage system with a single App on-the-go, saving the bother of cross-platform management.
28.8
6.4– 28.8 kWh wide capacity range
230
Up to 8 towers in parallel (230 kWh)
1, 3
Suitable for 1 and 3 phase, hybrid and retrofit inverters
OVERVIEW
Model
LX F28.8-H-20
Usable Energy (kWh)
28.8
Nominal Voltage (V)
576
Nominal Charging / Discharging Current (A)
35/35
Installation Location
Grounded
Enclosure Type
IP55
Model
LX F25.6-H-20
Usable Energy (kWh)
25.6
Nominal Voltage (V)
512
Nominal Charging / Discharging Current (A)
35/35
Installation Location
Grounded
Enclosure Type
IP55
Model
LX F22.4-H-20
Usable Energy (kWh)
22.4
Nominal Voltage (V)
448
Nominal Charging / Discharging Current (A)
35/35
Installation Location
Grounded
Enclosure Type
IP55
Model
LX F19.2-H-20
Usable Energy (kWh)
19.2
Nominal Voltage (V)
384
Nominal Charging / Discharging Current (A)
35/35
Installation Location
Grounded
Enclosure Type
IP55
Model
LX F16.0-H-20
Usable Energy (kWh)
16.0
Nominal Voltage (V)
320
Nominal Charging / Discharging Current (A)
35/35
Installation Location
Grounded
Enclosure Type
IP55
Model
LX F12.8-H-20
Usable Energy (kWh)
12.8
Nominal Voltage (V)
256
Nominal Charging / Discharging Current (A)
35/35
Installation Location
Grounded
Enclosure Type
IP55
Model
LX F9.6-H-20
Usable Energy (kWh)
9.6
Nominal Voltage (V)
192
Nominal Charging / Discharging Current (A)
35/35
Installation Location
Grounded
Enclosure Type
IP55
