Global
Language
200V-950V
Fuse-free

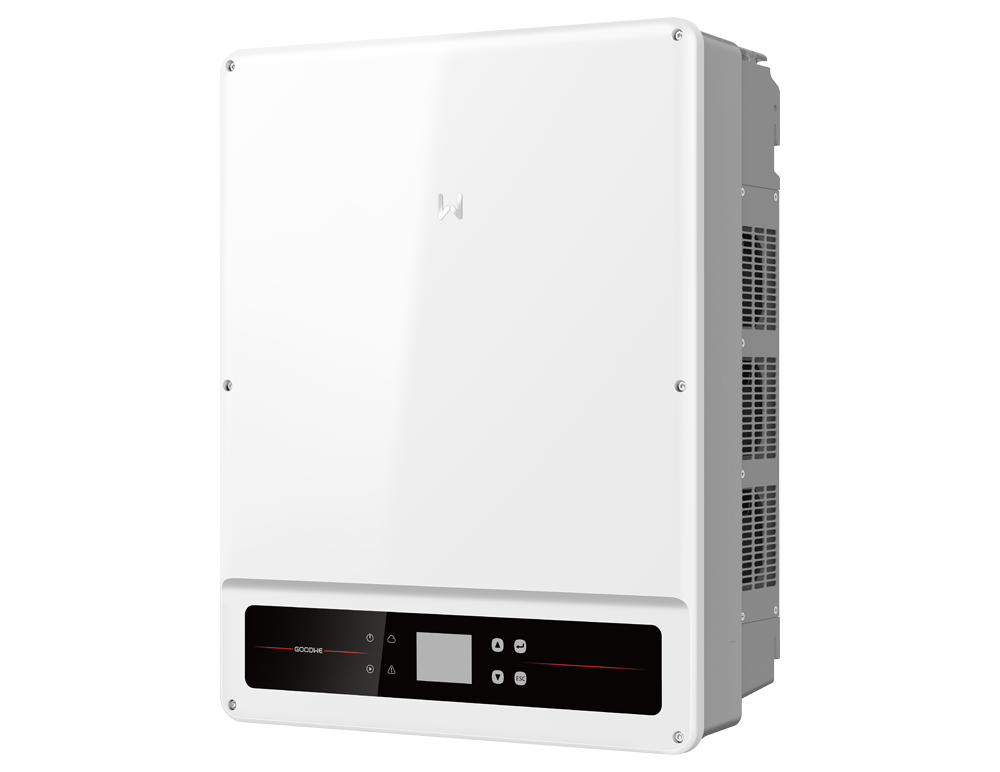

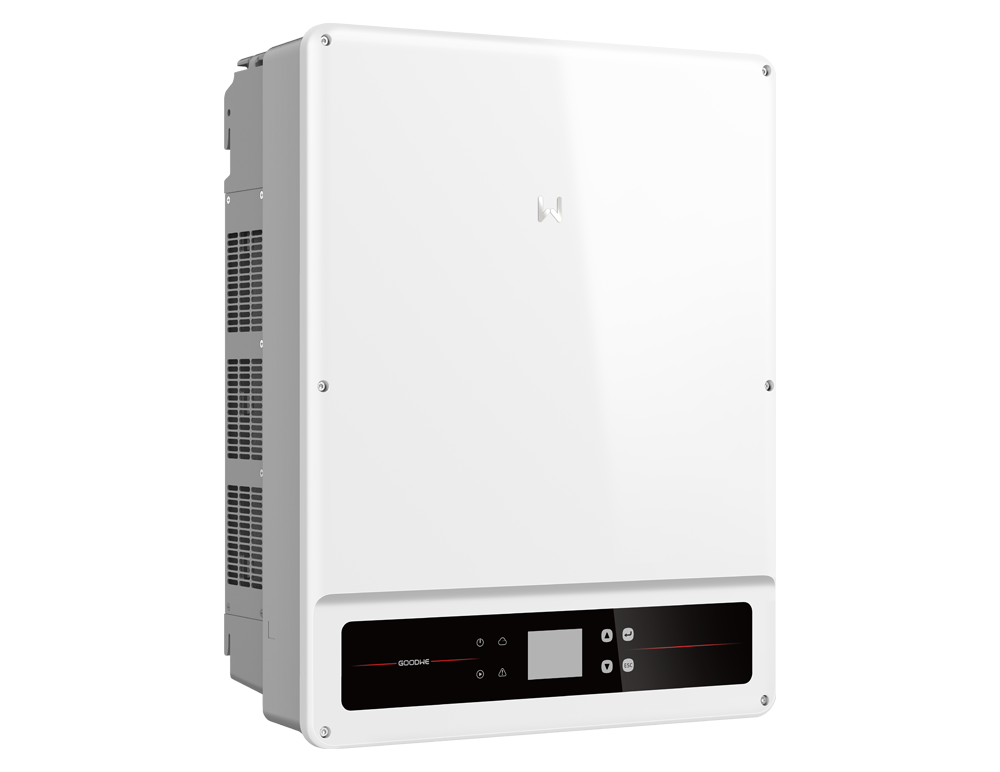

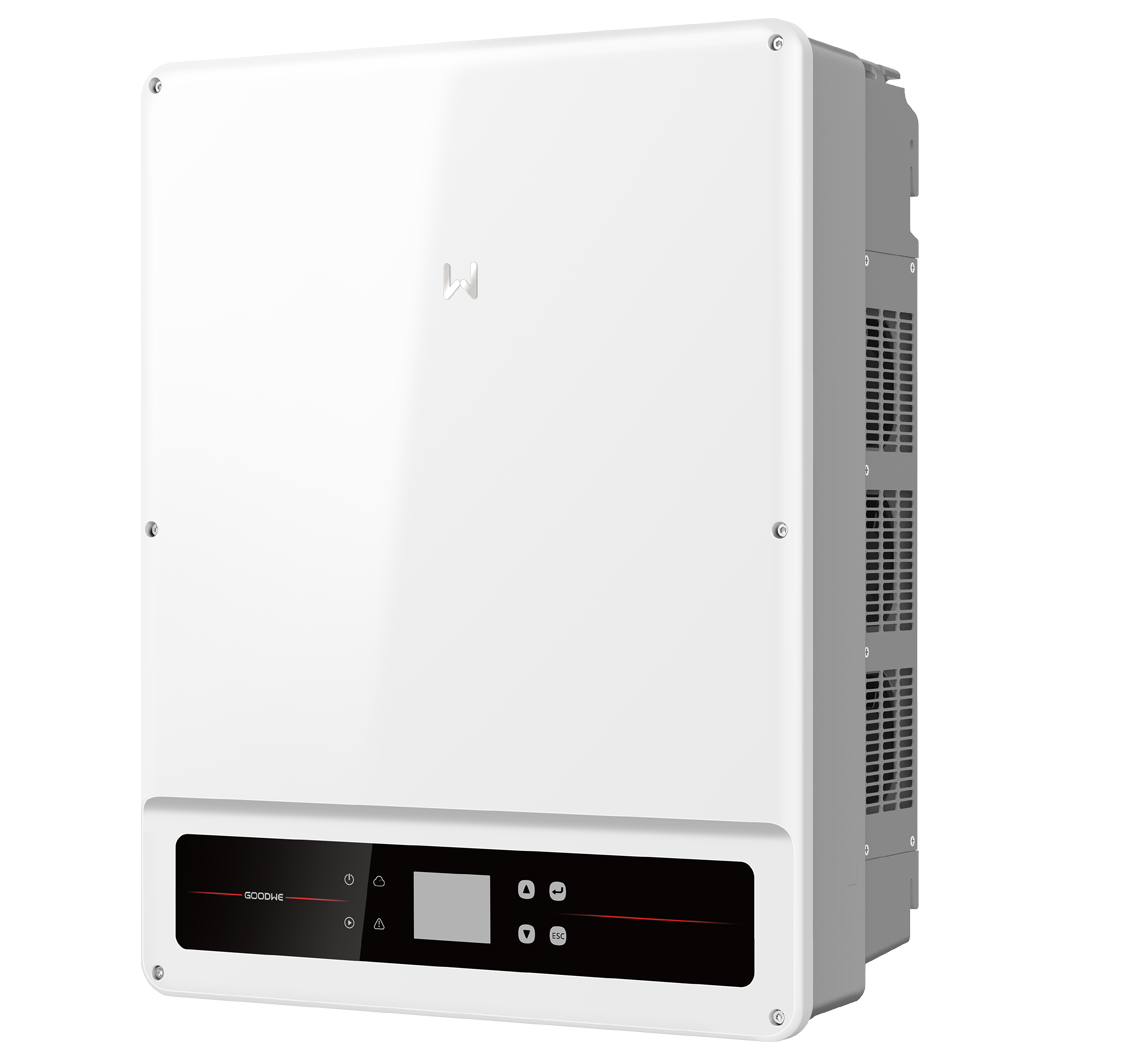

The GoodWe SMT 50-60kW Series inverter is ideal for medium and large-scale commercial installations.
Its unique fuse-free design makes it exceptionally easy to maintain for operators, saving time and money. The superb safety design provides reliable protections in outdoor installation and guarantees stable usage and generation even in extreme conditions. SMT 50-60kW Series is a pioneering inverter that guarantees an earlier generation of power and a longer working time in order to maximise long-term returns and profitability in safe operating conditions.
Remote data monitoring
IP65 ingress protection
Type II Surge Protection for both DC and AC
Multi-protocol compatibility
200V-950V
Fuse-free
Friendly & Thoughtful Design
200V-950V wide input operating voltage range allows the solar system to start at an early stage, fully utilizing the daytime to maximizing solar powered energy generation. The fuse-free design without consumable parts significantly reduces the operating time and costs.
200V-950V wide input operating voltage range
Fuse-free design
High Power Generation for High Return
With max. 15A DC input current per string, the SMT 50-60kW Series is compatible with different types of high-power modules, which ensures more solar power absorption making it one of the most productive inverters on the market. Up to 6 MPP trackers guarantee optimal energy production even in shade. The maximum energy yields brings you high return of investment (ROI) for your business.
15
Maximum 15 A DC input current per string
110%
110% AC output overloading
6
Up to 6 MPPTs
150%
150% DC input oversizing
OVERVIEW
Model
GW60KS-MT
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
30
Number of MPP trackers/Number of Strings per MPPT:
6/2
Max. Efficiency :
98.6%
Nominal Output Voltage (V) :
230/400, 3L/N/PE or 3L/PE
Model
GW50KS-MT
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
30
Number of MPP trackers/Number of Strings per MPPT:
5/2
Max. Efficiency :
98.6%
Nominal Output Voltage (V) :
230/400, 3L/N/PE or 3L/PE
