BH Series
3.6-6 kW | Single phase | AC-coupled retrofit inverter (HV)
DOWNLOAD PDF >>
HV Battery
Plug & Play

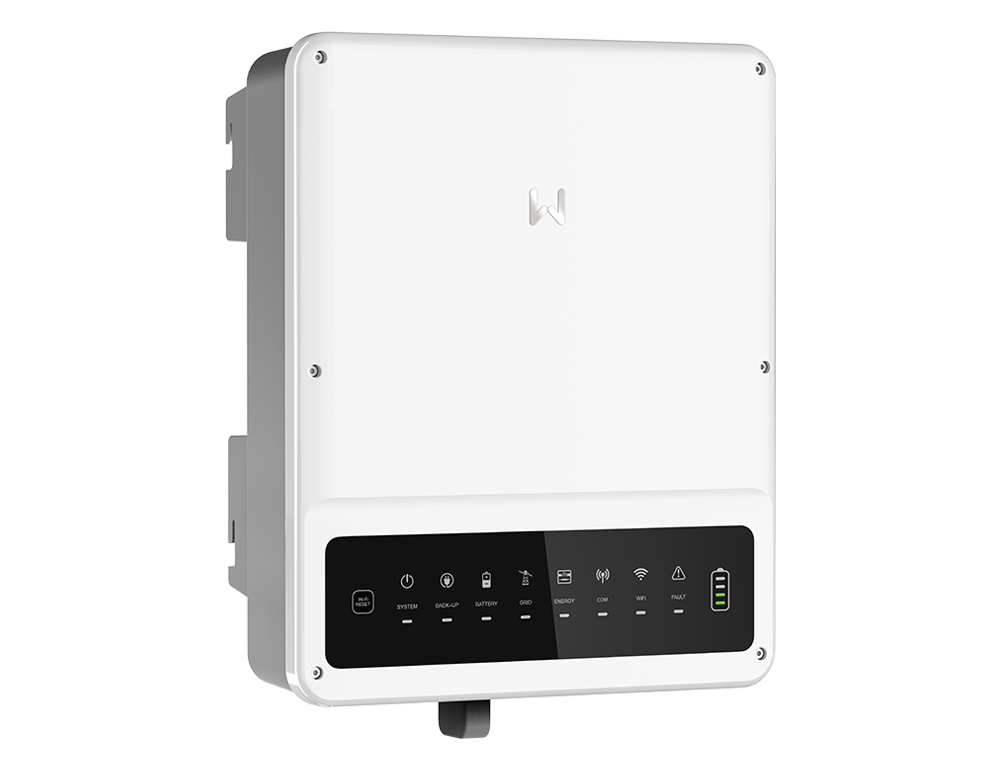

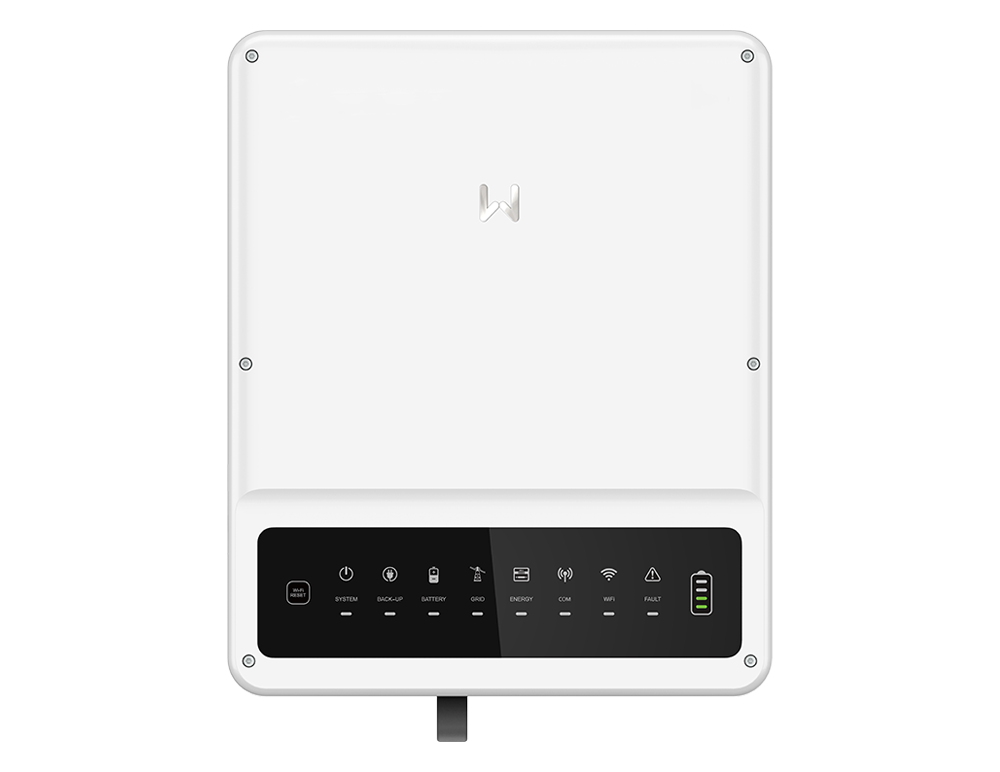

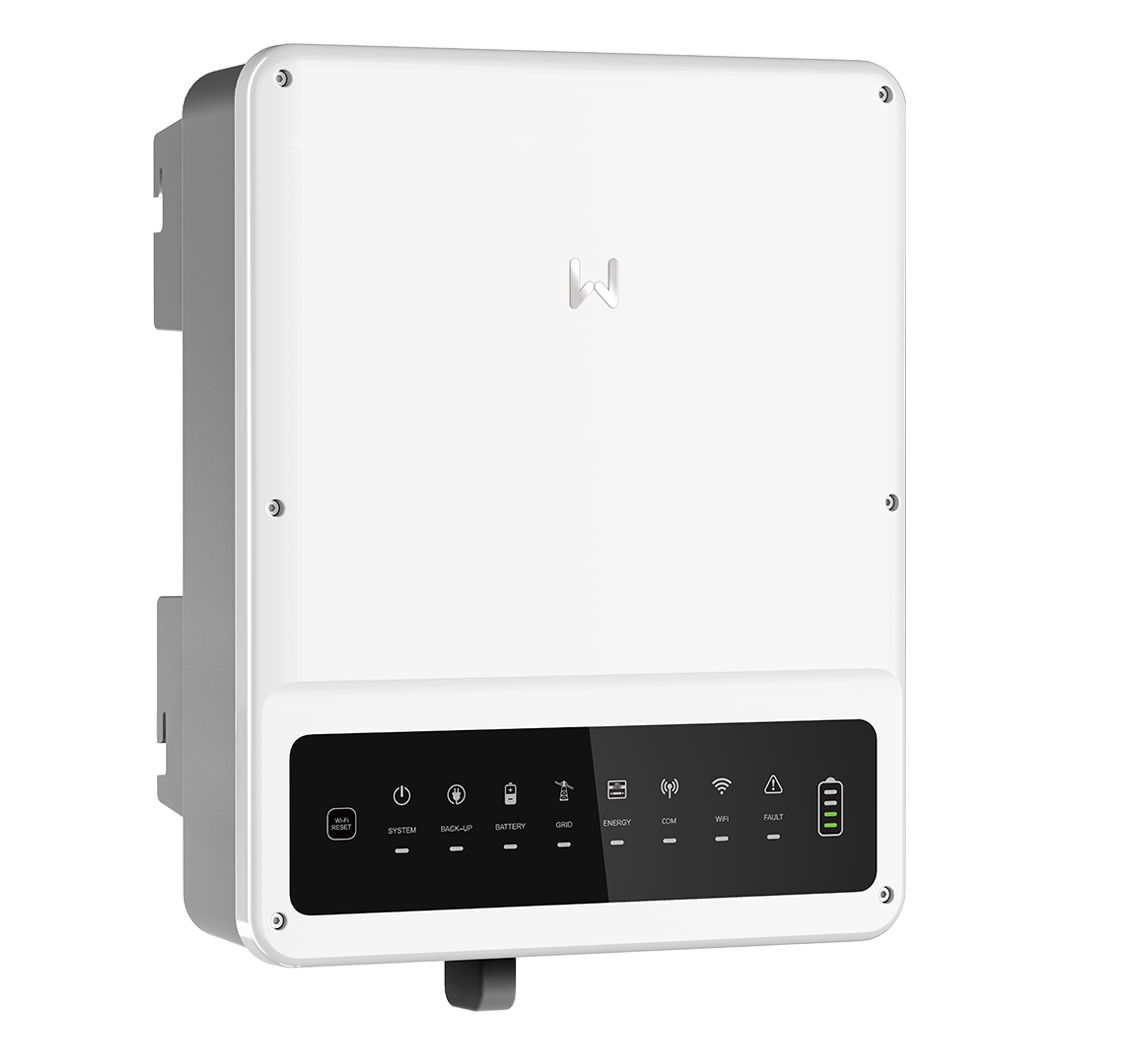

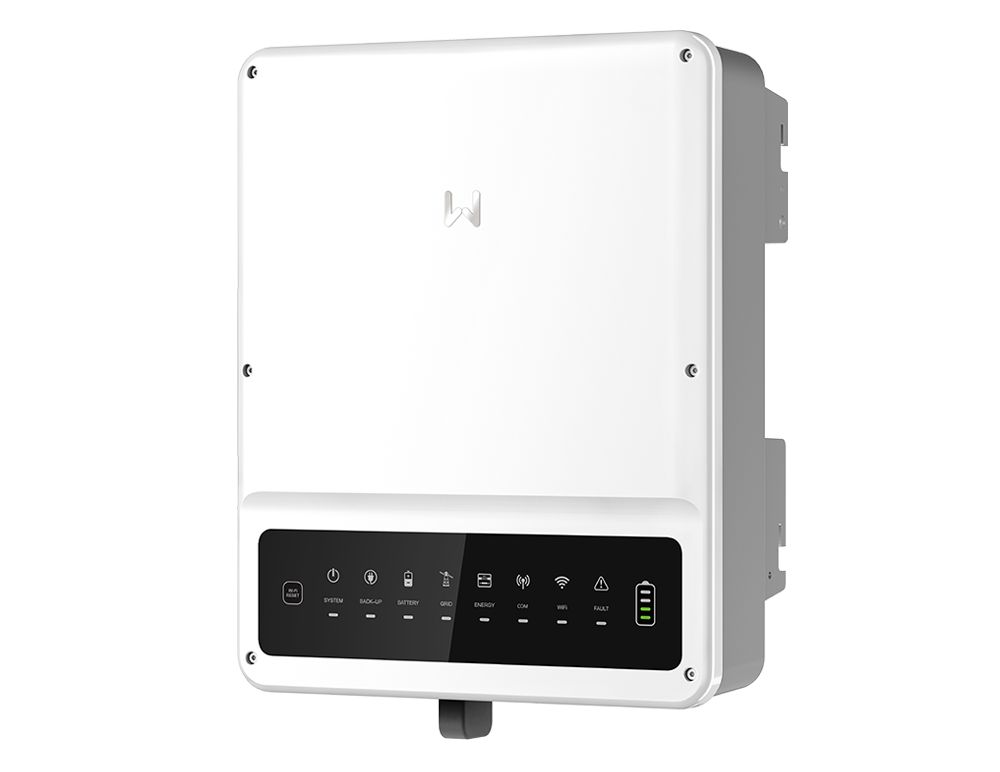

The GoodWe BH Series inverter is a single-phase, AC-coupled retrofit inverter compatible with a wide range of high voltage batteries from 85V to 450V. It is designed to maximize self-consumption with UPS-level switching backup function. The pre-wired communication cables and AC connector’s ‘Plug & Play’ simplify installation, operation and maintenance.
Maximize self-consumption
Wide battery voltage range 85~450V
Pre-wired communication cables
Plug & Play AC connectors
Hybrid systems converted
<10 ms UPS-level switching
HV Battery
Plug & Play
85~450V Wide Battery Voltage Range
Compatible with various high voltage batteries (GoodWe, BYD, Pylon, etc.) Flexibility and affordability to fulfill different customers’ energy storage requirements.
Easy to Install and Maintain
Pre-wired communication cables greatly shorten installation time. Plug & Play AC connector simplifies O&M.
Compact design
Pre-wired communication cables
Plug & Play AC connectors
OVERVIEW
Model
GW3K-BH
Battery Voltage Range (V)
85~400
Max. Charging Current(A)
32
Max. Discharging Current (A)
32
Nominal Output Voltage (V)
230
Protection Degree
IP65
Model
GW3600-BH
Battery Voltage Range (V)
85~400
Max. Charging Current(A)
25
Max. Discharging Current (A)
25
Nominal Output Voltage (V)
230
Protection Degree
IP65
Model
GW5000-BH
Battery Voltage Range (V)
85~400
Max. Charging Current(A)
25
Max. Discharging Current (A)
25
Nominal Output Voltage (V)
230
Protection Degree
IP65
Model
GW6000-BH
Battery Voltage Range (V)
85~400
Max. Charging Current(A)
25
Max. Discharging Current (A)
25
Nominal Output Voltage (V)
230
Protection Degree
IP65
