BT Series
5-10 kW | Three phase | AC-coupled retrofit inverter (HV)
DOWNLOAD PDF >>
AC-coupled retrofit
HV battery

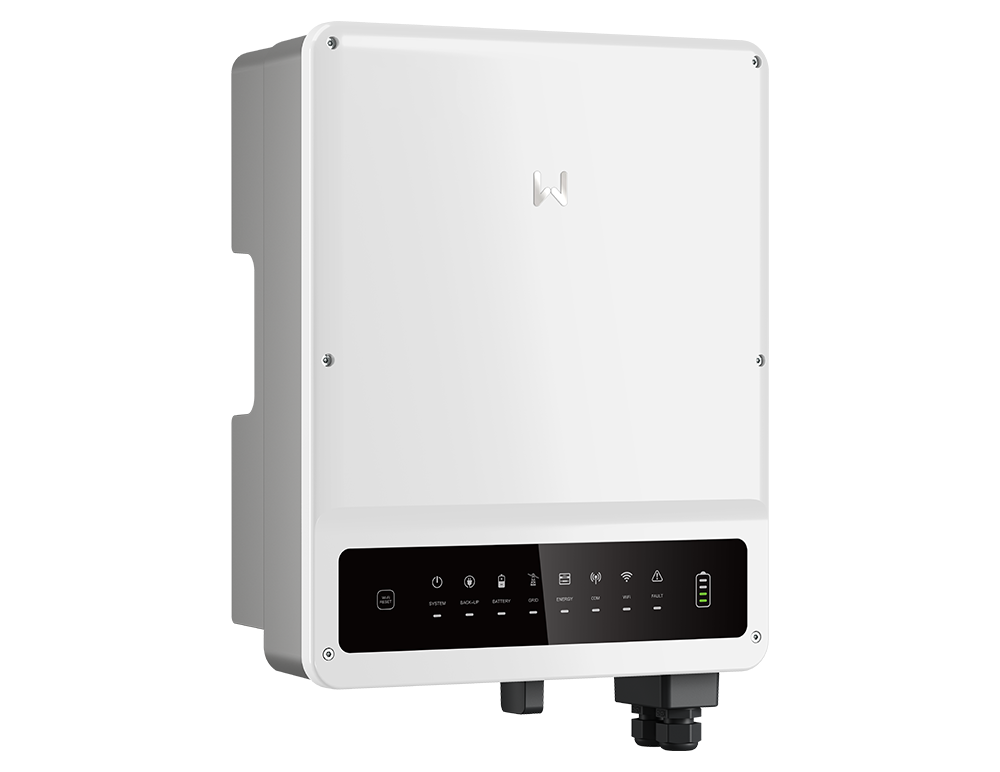

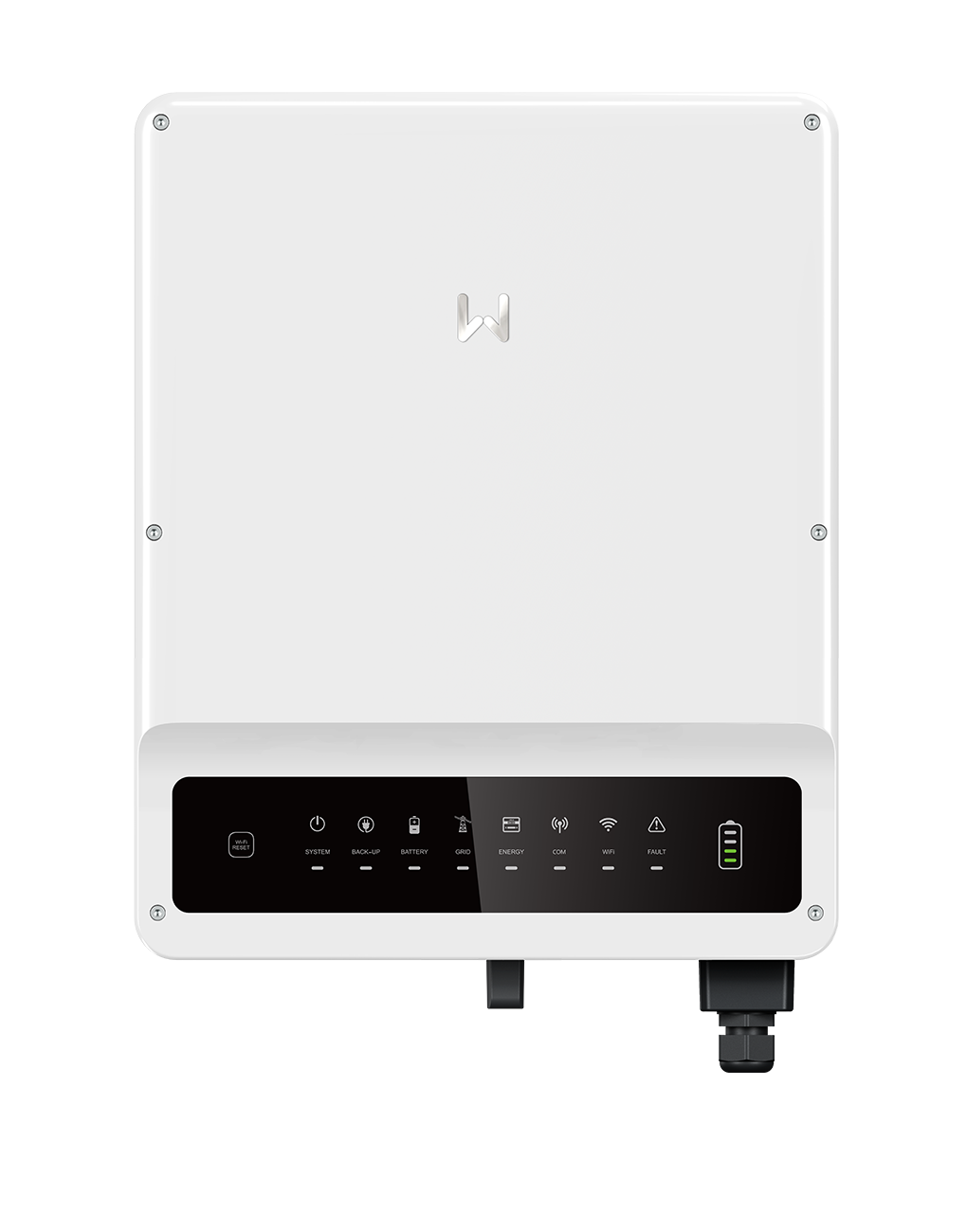

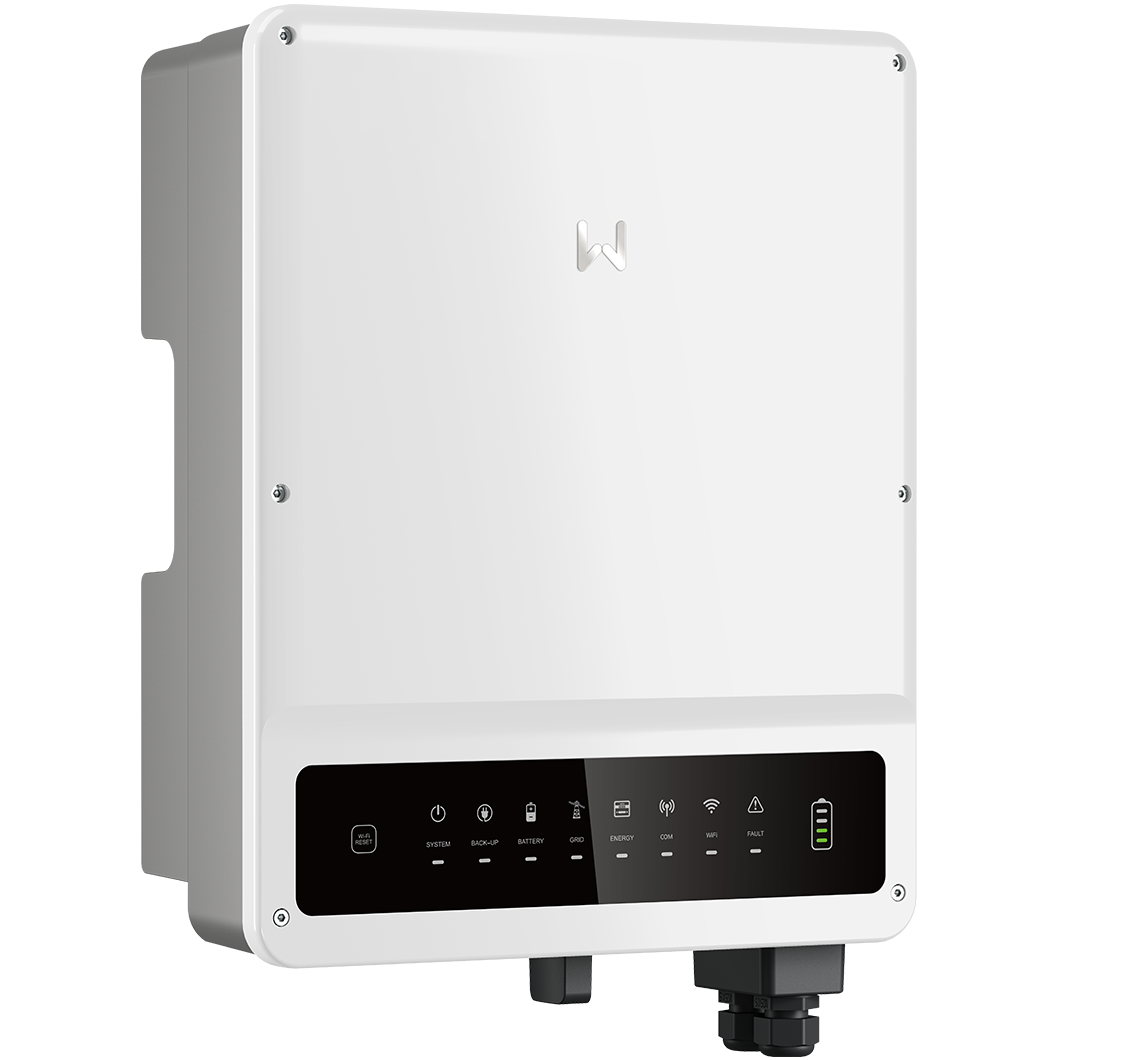

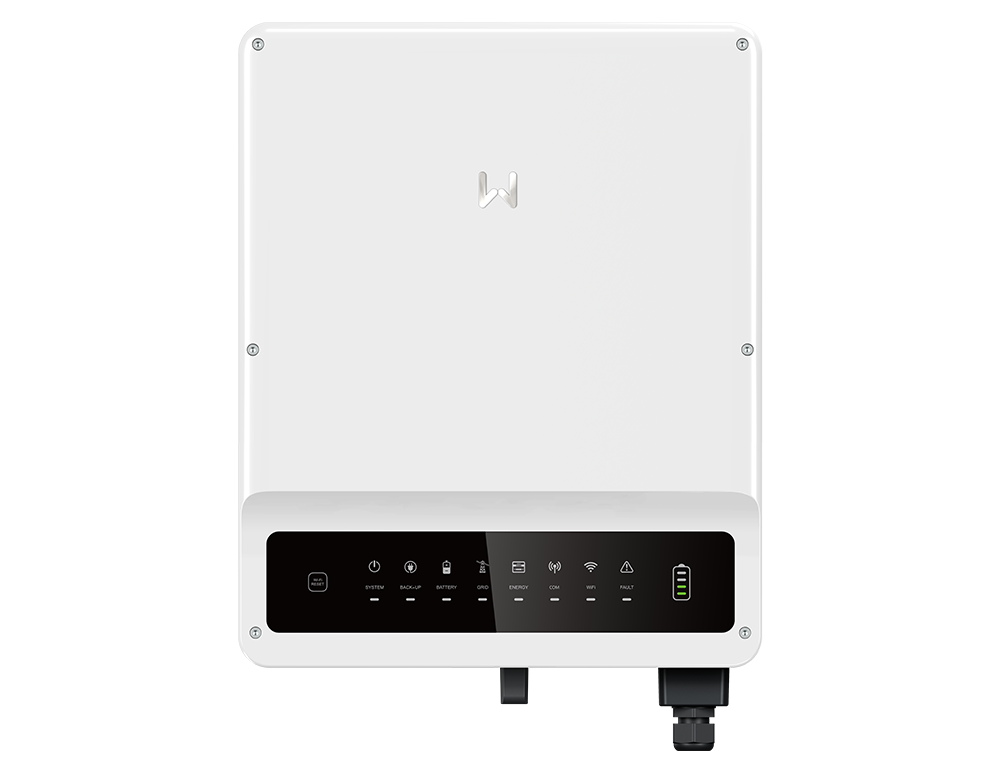

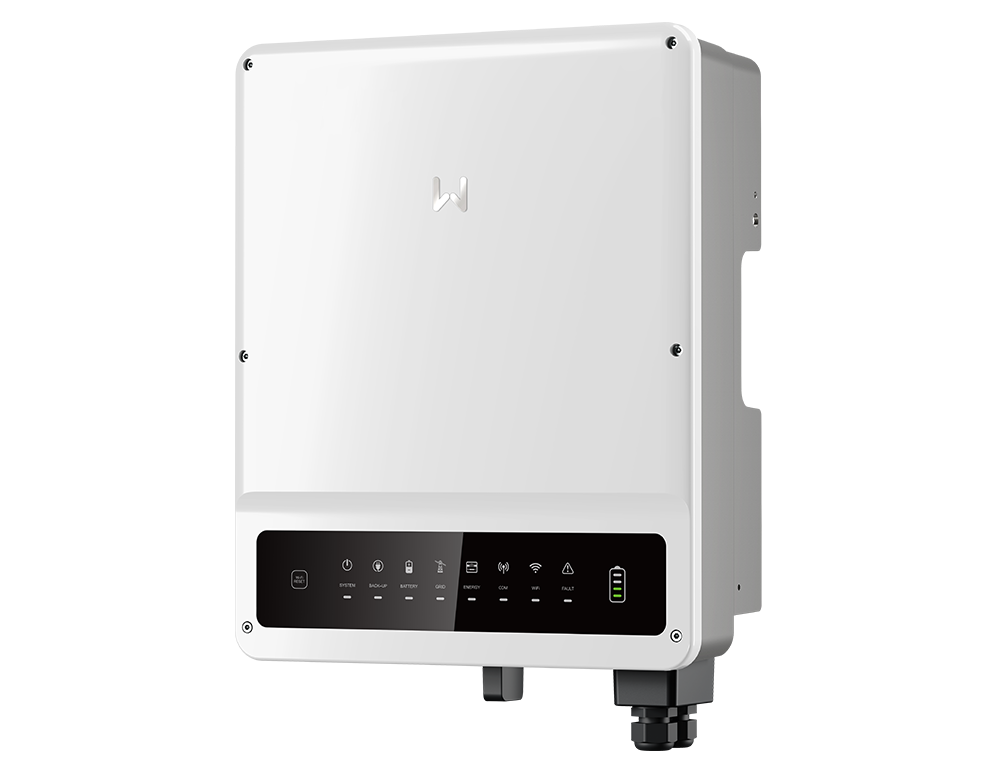

The GoodWe BT series is an AC-coupled retrofit inverter, which is able to upgrade existing three-phase on-grid PV systems to storage systems. The AC-coupled solution is able to transform any three-phase on-grid PV system into an energy storage system with batteries, enhancing grid independence and self-consumption. It is compatible with high voltage Li-Ion batteries ranging from 180 to 600V and is also equipped with UPS function. As part of its set of protections, it incorporates a Battery Input Reverse Polarity Protection.
<10 ms UPS-level switching
110% AC output overloading
High voltage battery (180V-600V)
Battery input reverse polarity protection
AC-coupled retrofit
HV battery
180~600V Wide Battery Voltage Range
It is compatible with various high voltage batteries and offers flexibility and affordability to fulfil various customer demands. Currently, the BT Series is able to work with BYD and Pylontech high voltage batteries.
97.5% Max. Efficiency System Efficiency
Thanks to GoodWe’s cutting-edge technology, the maximum efficiency of the elegant BT Series reaches 97.5%, which surpasses all competitors. With superior efficiency, solar energy generation will be fully utilized, creating the best savings for end users. Again, GoodWe manifests its innovative strength and technological breakthrough all over the world!
97.5%
MAXIMUM SYSTEM EFFICIENCY
OVERVIEW
Model
GW6K-BT
Battery Voltage Range (V)
180~600
Max. Charging Current(A)
25
Max. Discharging Current (A)
25
Nominal Output Voltage (V)
400/380
Protection Degree
IP66
Model
GW8K-BT
Battery Voltage Range (V)
180~600
Max. Charging Current(A)
25
Max. Discharging Current (A)
25
Nominal Output Voltage (V)
400/380
Protection Degree
IP66
Model
GW5K-BT
Battery Voltage Range (V)
180~600
Max. Charging Current(A)
25
Max. Discharging Current (A)
25
Nominal Output Voltage (V)
400/380
Protection Degree
IP66
Model
GW10K-BT
Battery Voltage Range (V)
180~600
Max. Charging Current(A)
25
Max. Discharging Current (A)
25
Nominal Output Voltage (V)
400/380
Protection Degree
IP66
