IP66
Light & compact
Fanless cooling

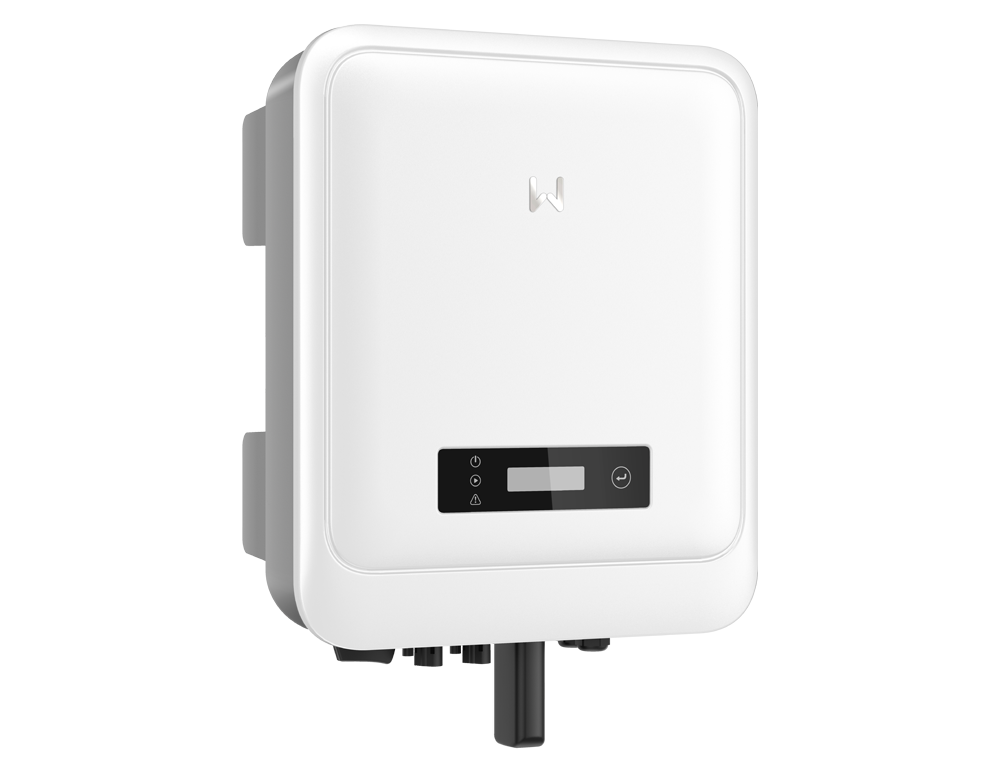

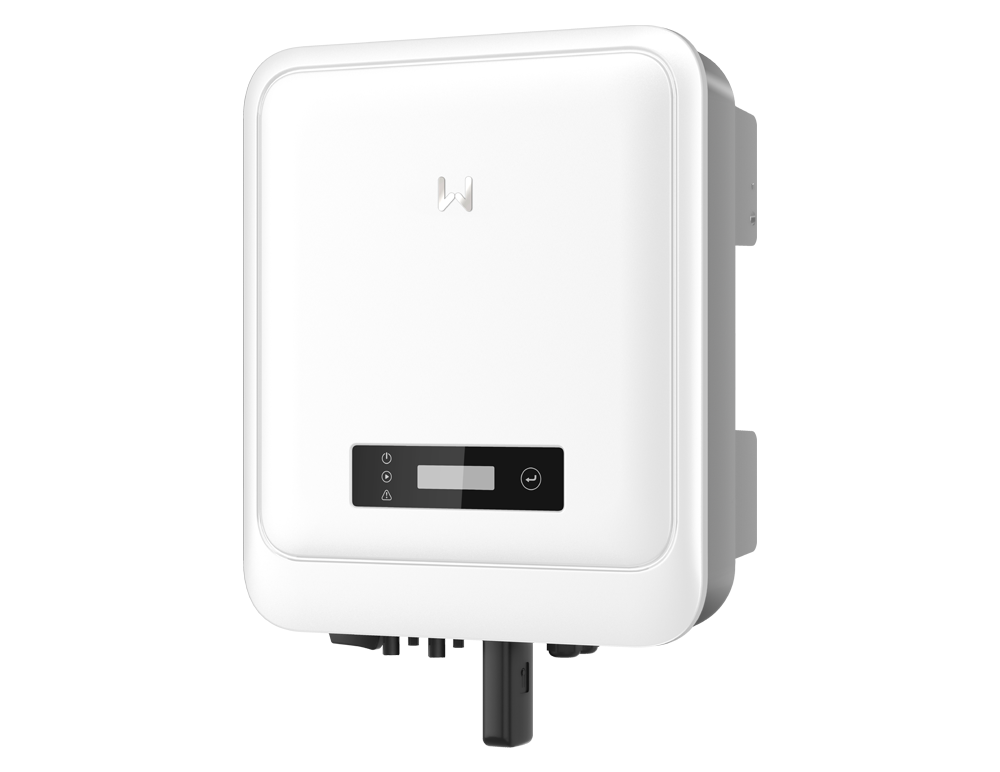

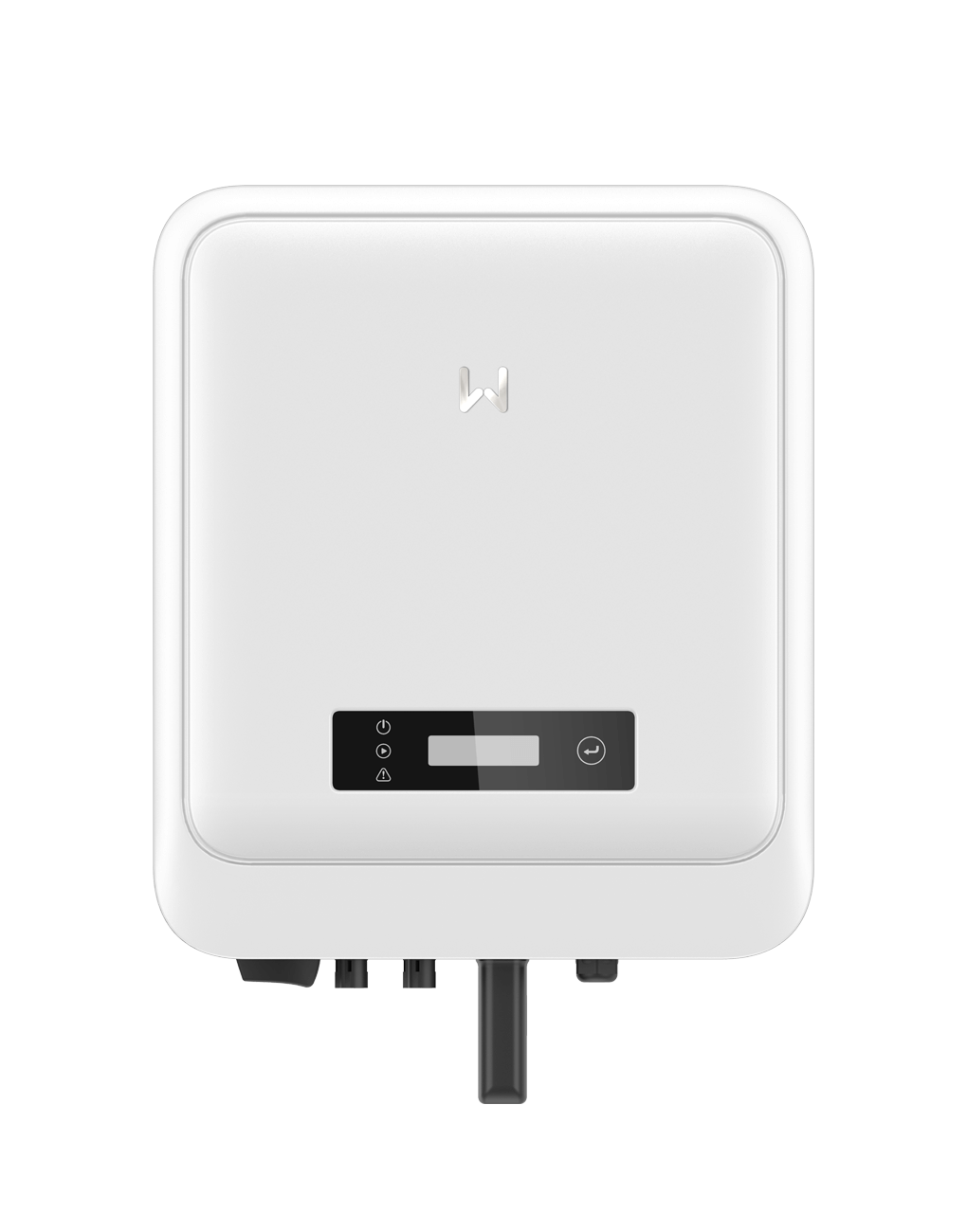

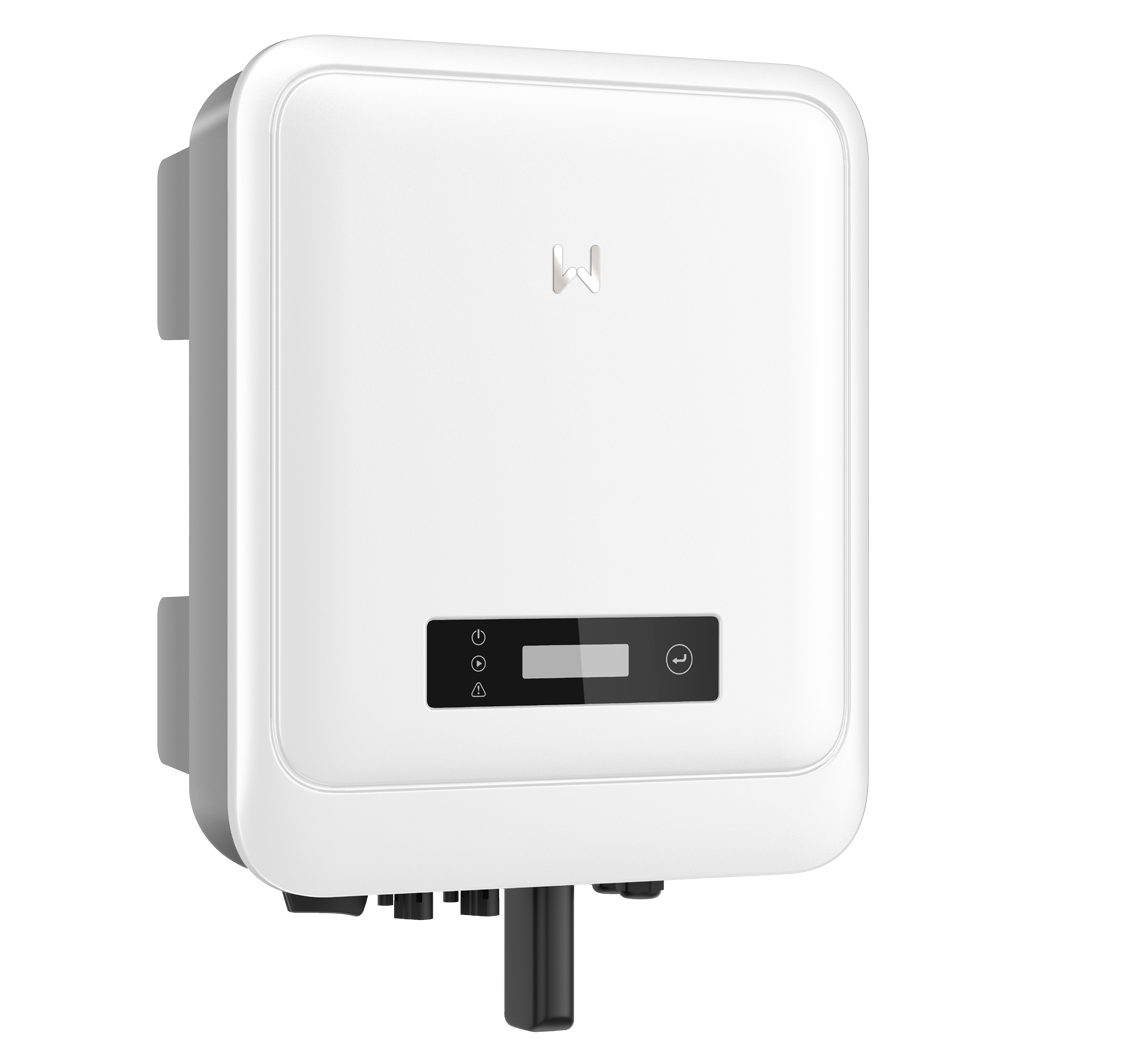

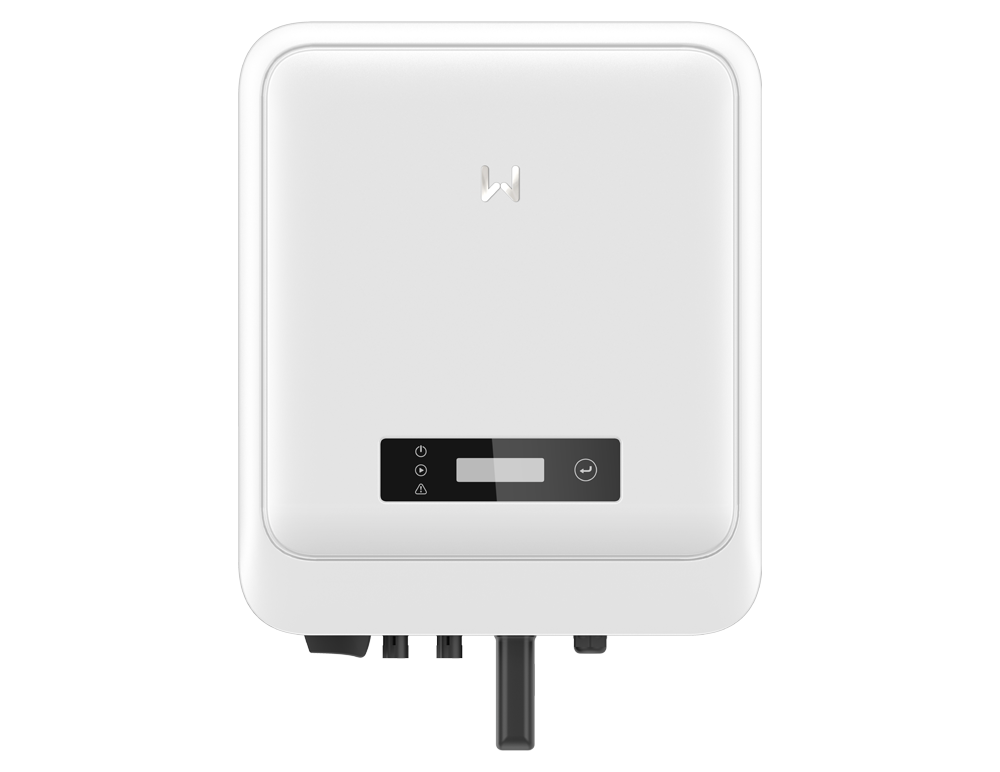

The GoodWe DNS G3 series inverter is designed for single-phase residential applications. Integrated with high-current input and DC input oversizing capabilities, the DNS G3 provides optimised power generation and substantial return on investment. With its lighter and fanless compact design, the DNS G3 inverter provides a reliable power supply that runs at a super quiet operation of less than 25dB. The inverter also takes safety measures including optional Arc Fault Current Interrupter (AFCI) and Type II Surge Protection Device (SPD) on both sides to protect the system from electrical fire and lightning hazards in extreme environments, for guaranteed safety.
24/7 load consumption monitoring
Multiple communication protocols supported
Optional AFCI preventing electrical fires
Optional AC & DC Type II SPD & SPD failure alarm
IP66
Light & compact
Fanless cooling
Superb Safety & Reliability
The DNS G3 series boasts enhanced safety features, including an IP66 rating for outdoor installation, smart SPD failure alarm, Type II surge protector on both sides and an optional Arc Fault Current Interrupter (AFCI). This provides continuous protection in extreme conditions and peace of mind for the system owner.
Optional AFCI
Optional AC & DC Type II SPD & SPD failure alarm
Smart Control & Monitoring
The DNS G3 series supports dry contact connection and multiple protocols, including Modbus RTU and Sunspec for amazing communication flexibility. In addition, users can take control of energy management with 24-hour load consumption monitoring enabled by GoodWe HomeKit 1000.
Dry contact connection
Multiple communication protocols
24-hour load consumption monitoring
Optimal Generation
This third generation model of the DNS series has been improved for compatibility with high power modules, with a maximum 16 A input current per string. The 150% DC input oversizing, 110% AC output overloading capability and 97.9% maximum efficiency, drive your inverter to its full capacity to increase your power output in lower solar radiation conditions.
16 A
Max. 16 A input current per string
150%
DC input oversizing
110%
AC output overloading
97.9%
Max. Efficiency
OVERVIEW
Model
GW3000-DNS-30
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
16
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
12.8
Nominal Output Voltage (V) :
220/230/240
Model
GW3600-DNS-30
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
16
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
12.8
Nominal Output Voltage (V) :
220/230/240
Model
GW4200-DNS-30
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
16
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
12.8
Nominal Output Voltage (V) :
220/230/240
Model
GW5000-DNS-30
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
16
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
12.8
Nominal Output Voltage (V) :
220/230/240
Model
GW6000-DNS-30
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
16
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
13.4
Nominal Output Voltage (V) :
220/230/240
