150% DC oversizing
16A

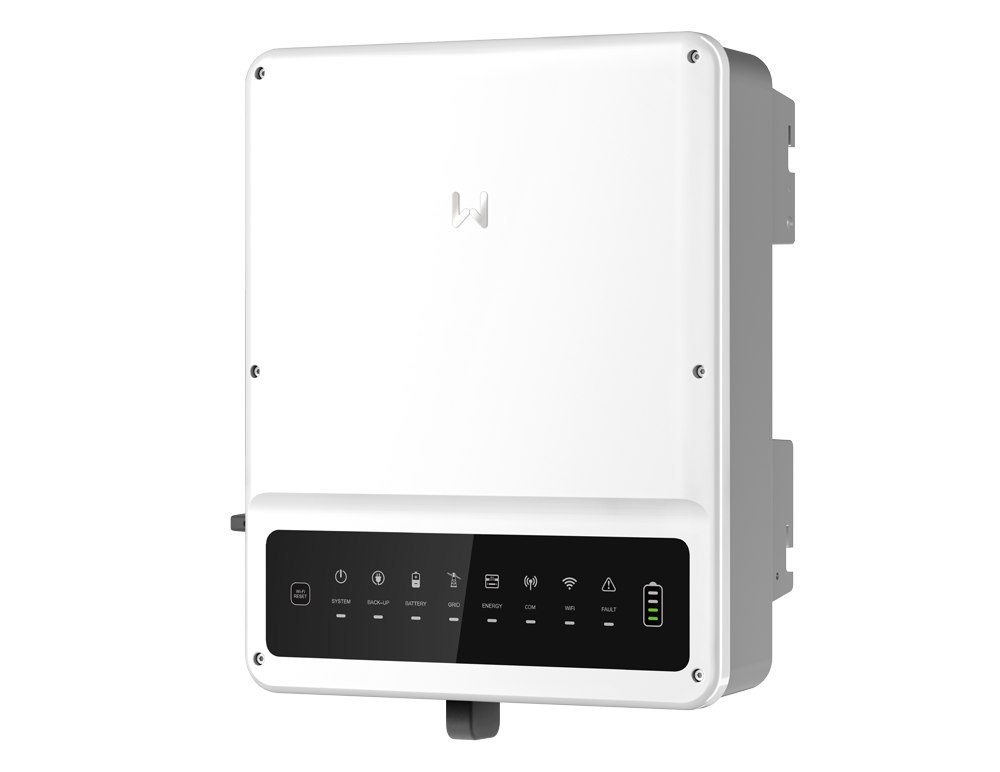

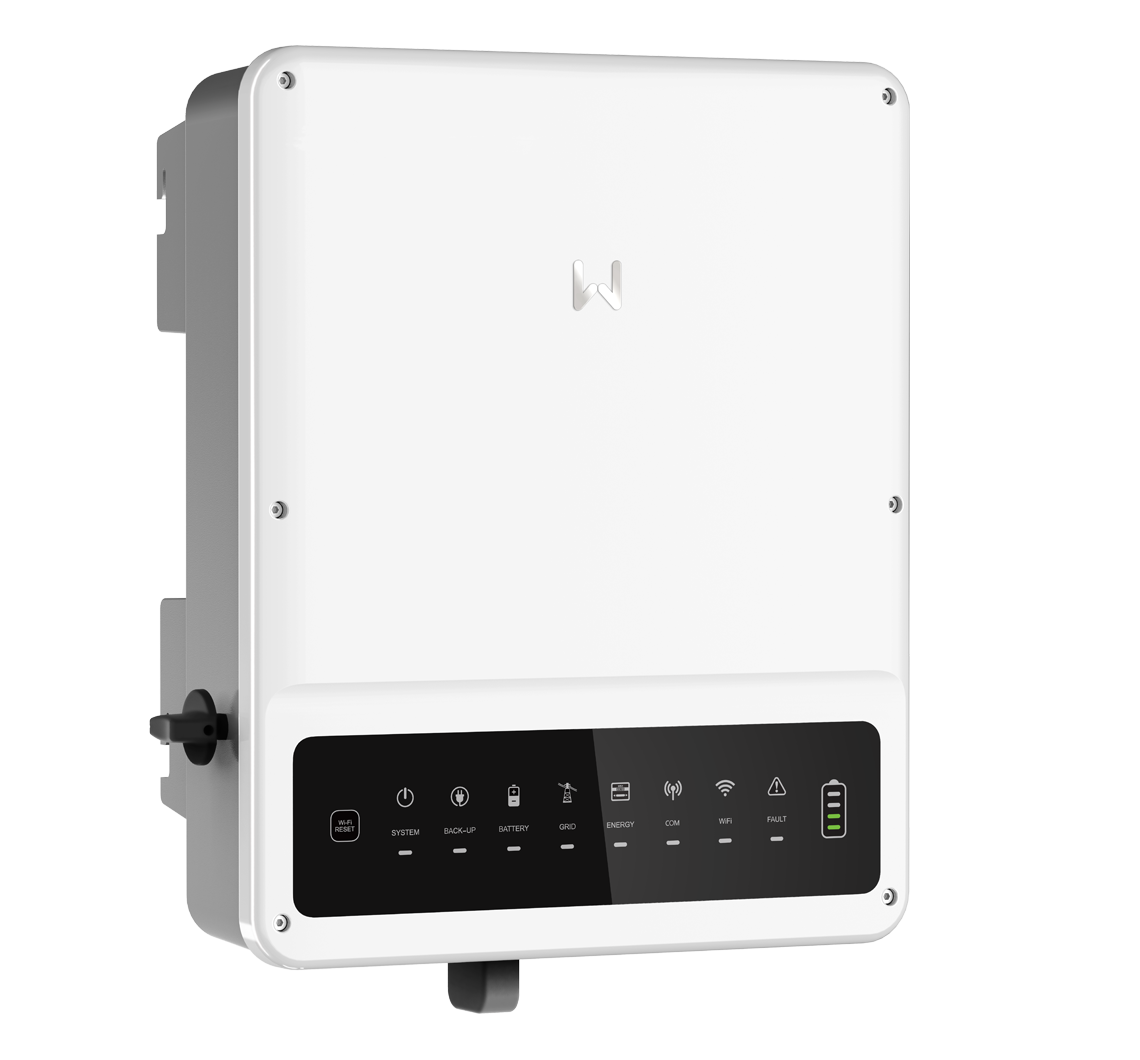

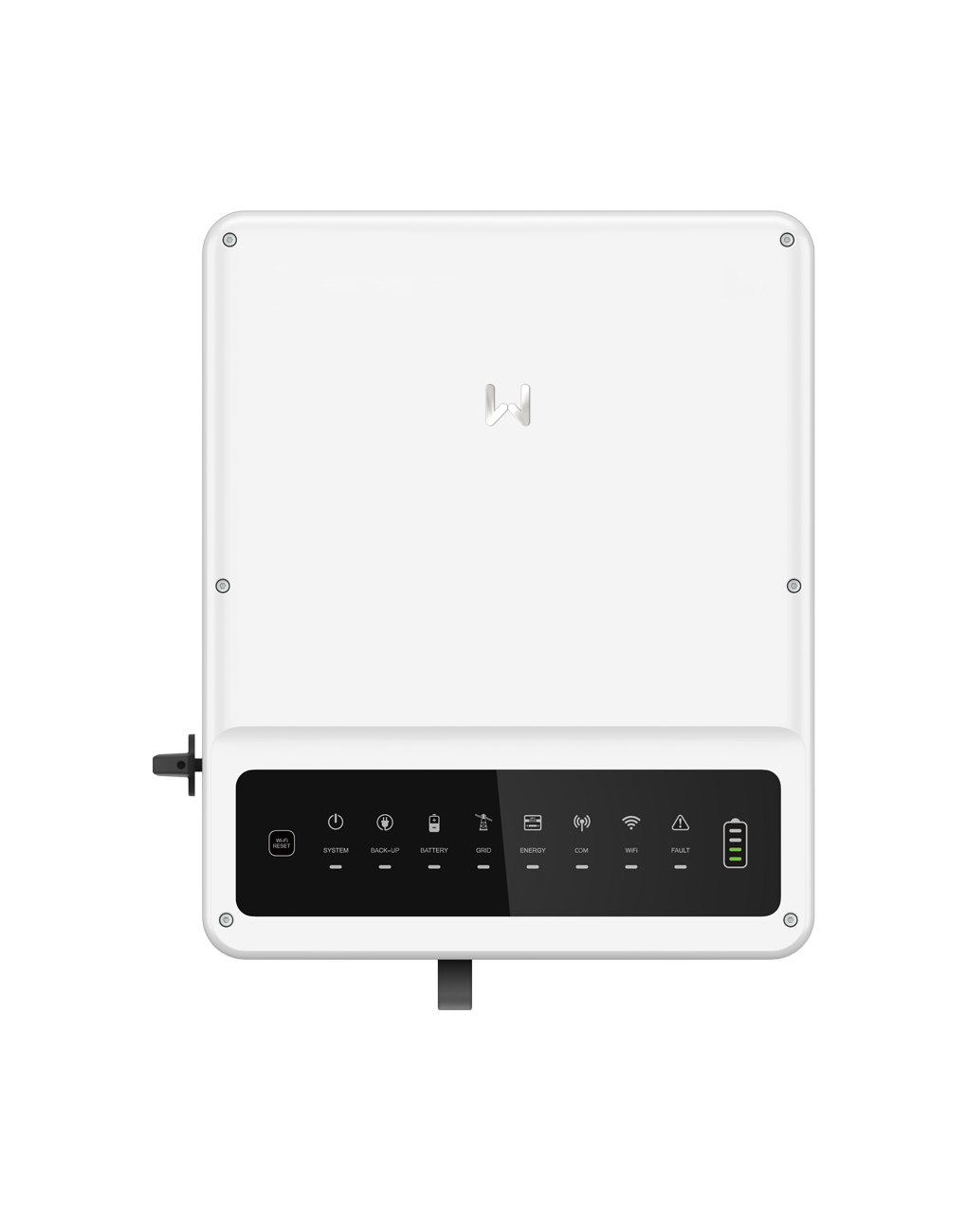

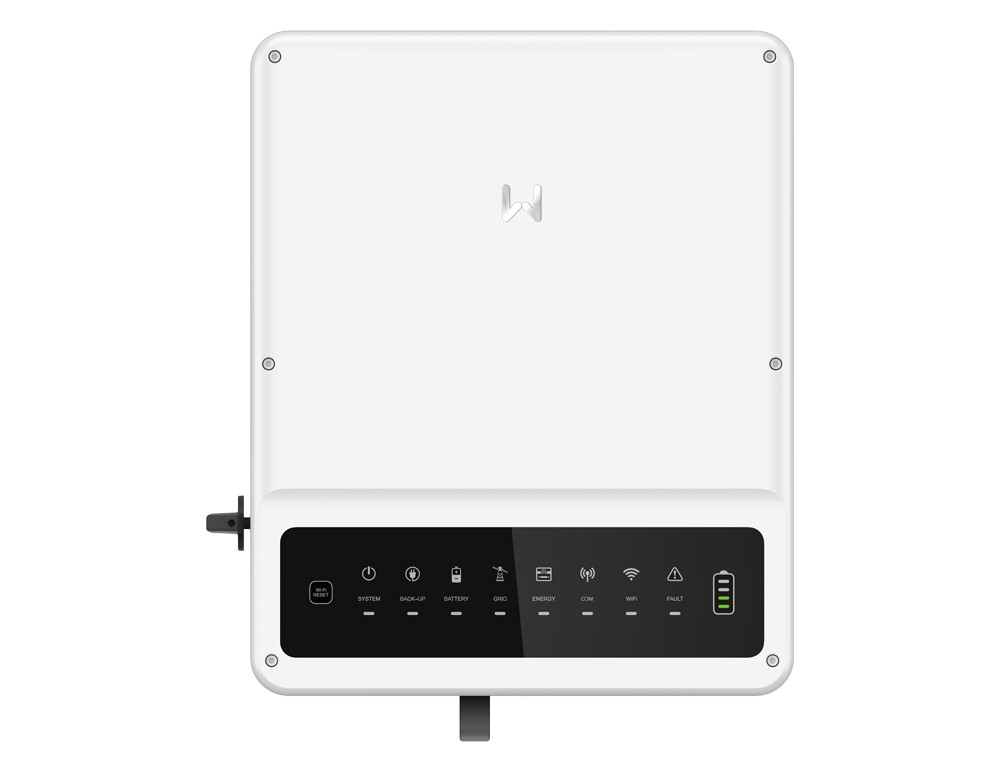

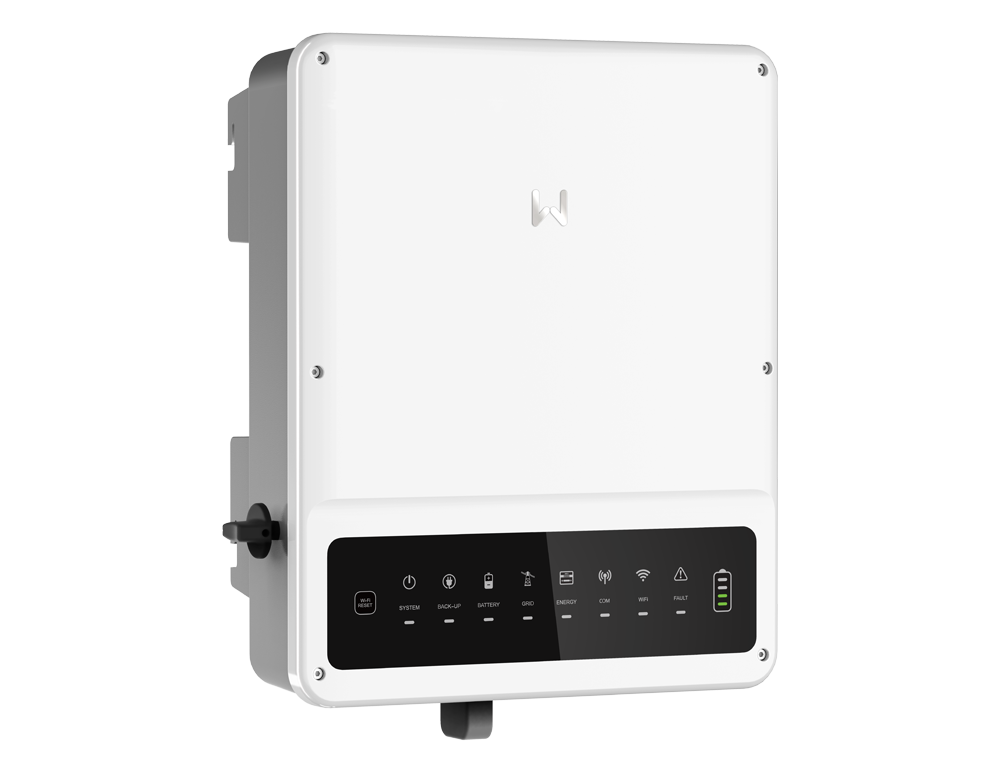

The EH Series is an energy storage inverter that is compatible with high voltage Li-Ion batteries ranging from 85 to 460V to provide a highly flexible system design. Its "Battery Ready" design provides a future-proof solution for users who may want to add battery storage in the future, simply by purchasing an activation code. Designed as a highly adaptable and flexible option for residential PV systems, the inverter has its maximum DC input current reached 16A for each string and combines well with high-power PV modules. Featuring UPS-level switching (switching time <10 ms) and peak shaving, EH Series ensures a stable and reliable power supply.
Peak shaving
Built-in Type II SPD on DC side
<10 ms UPS-level switching
IP65 ingress protection
150% DC oversizing
16A
Smart Control for Smart Energy
Take smart load control to customize the power generation to accommodate your load consumption needs. The EH Series can make a smart UPS-level switching to the backup mode in less than 10 ms, ensuring essential loads experience no interruption. Peak shaving is also supported to reduce power consumption during periods of high demand, which would reduce peak demand charges.
Smart load control
<10 ms UPS-level switching
Peak shaving
Flexible & Adaptable Applications
The EH Series offers a grid-connected version featuring GoodWe Battery Ready option to activate energy storage with one activation code — a simple way to future-proof your home for an energy storage system. To use even more self-generated solar energy in your home, its maximum DC input current of 16A and compatibility with high-power modules help generate more power and reduce the amount of electricity purchased from the grid to adapt to your needs.
Battery ready option
Maximum 16A DC input current per string
High-power module compatibility
OVERVIEW
Model
GW3600-EH
Battery Voltage Range (V)
85~460
Max. Continuous Charging / Discharging Current(A)
25/25
Max. Input Current per MPPT (A)
12.5
Max. Apparent Power Output to Utility Grid (VA)
3600/3960
Back-up Nominal Apparent Power (VA)
3600
Model
GW5000-EH
Battery Voltage Range (V)
85~460
Max. Continuous Charging / Discharging Current(A)
25/25
Max. Input Current per MPPT (A)
12.5
Max. Apparent Power Output to Utility Grid (VA)
5000/5500
Back-up Nominal Apparent Power (VA)
5000
Model
GW6000-EH
Battery Voltage Range (V)
85~460
Max. Continuous Charging / Discharging Current(A)
25/25
Max. Input Current per MPPT (A)
12.5
Max. Apparent Power Output to Utility Grid (VA)
6000/6600
Back-up Nominal Apparent Power (VA)
6000
Model
GW6000N-EH
Battery Voltage Range (V)
85~460
Max. Continuous Charging / Discharging Current(A)
25/25
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
6000/6600
Back-up Nominal Apparent Power (VA)
6000
Model
GW5000N-EH
Battery Voltage Range (V)
85~460
Max. Continuous Charging / Discharging Current(A)
25/25
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
5000/5500
Back-up Nominal Apparent Power (VA)
5000
Model
GW3600N-EH
Battery Voltage Range (V)
85~460
Max. Continuous Charging / Discharging Current(A)
25/25
Max. Input Current per MPPT (A)
16
Max. Apparent Power Output to Utility Grid (VA)
3600/3960
Back-up Nominal Apparent Power (VA)
3600
