UPS-level switching
100% unbalanced

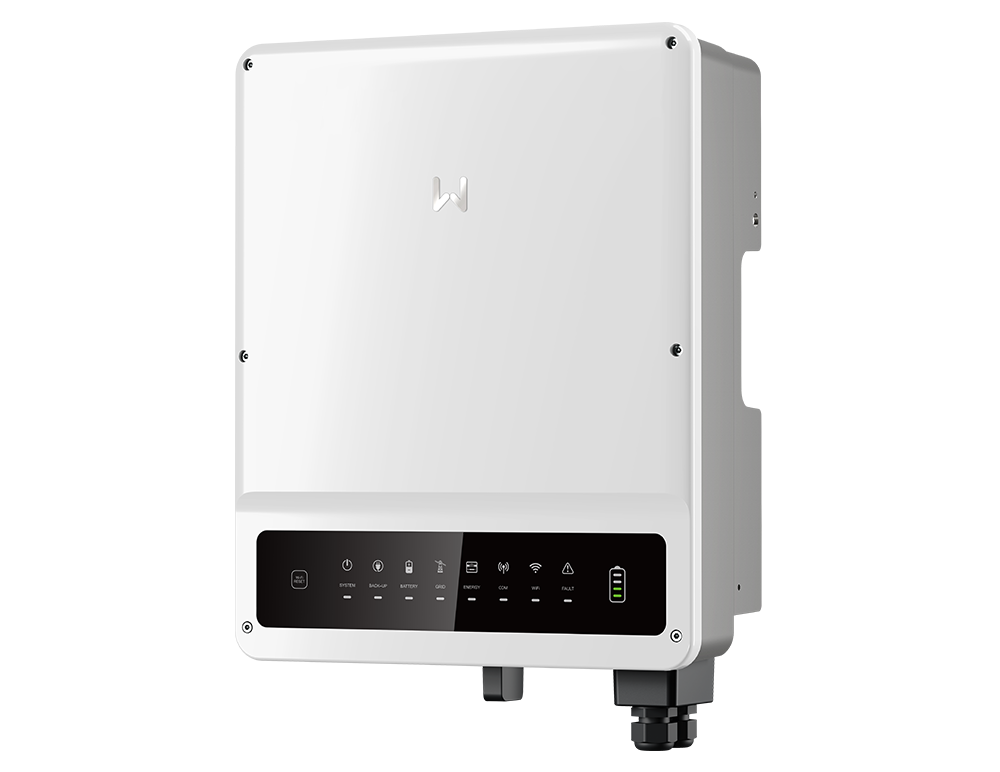

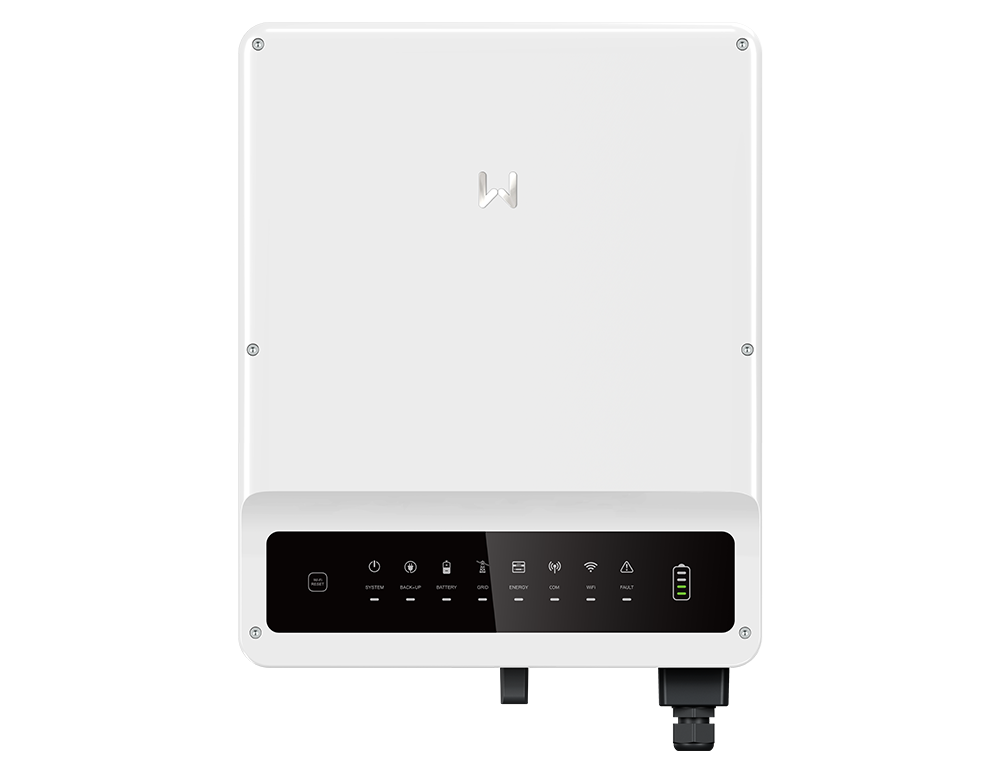

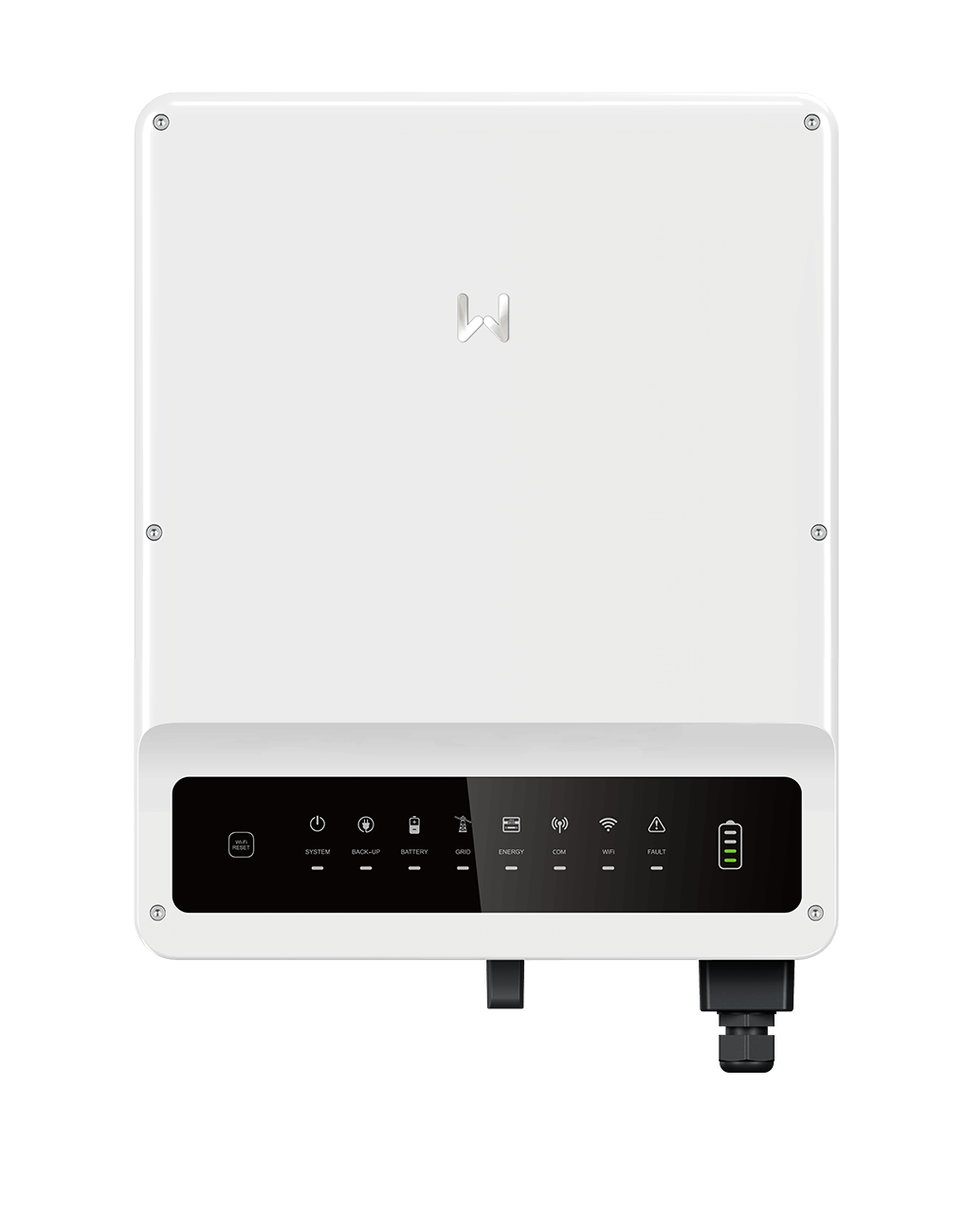

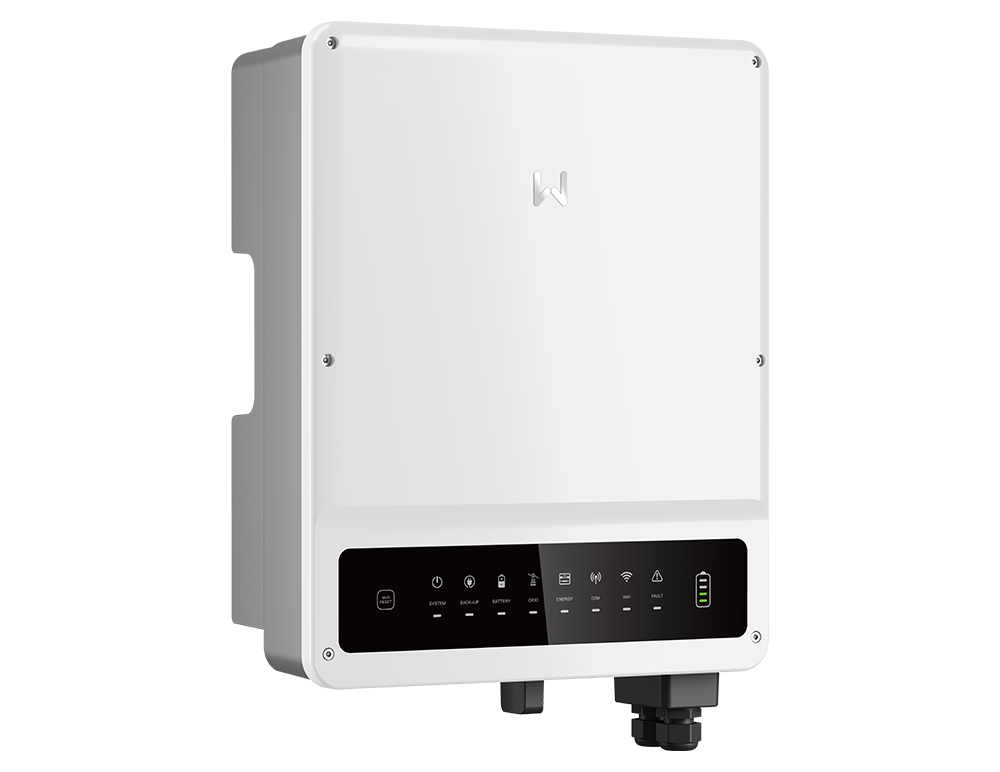

The GoodWe ET series is a Three-Phase, high-voltage, energy storage inverter that provides enhanced energy independence and maximises self-consumption for reduced electricity bills, through an export limit feature and time-of-use shifts. Covering a power range of 5 kW to 10 kW, the ET series allows up to 110% overloading to maximize power output and features Uninterruptible Power Supply (UPS) to critical loads, such as air conditioners or refrigerators within 10 milliseconds. With UPS-level switching, the ET can provide savings when connected to the grid, or off-grid independence and security when the grid is down.
98.2% maximum system efficiency
<10 ms UPS-level switching
100% unbalanced load
Wide battery voltage from 180V to 600V
UPS-level switching
100% unbalanced
180~600V Wide Battery Voltage Range
Compatible with various high voltage batteries and offers flexibility and affordability to fulfil various customer demands.
98.2% Maximum System Efficiency
Due to GoodWe’s cutting-edge patented technology, combined with high voltage batteries, the system’s efficiency can reach up to 98.2%, fully making use of solar energy.
98.2%
MAXIMUM SYSTEM EFFICIENCY
OVERVIEW
Model
GW10KL-ET
Battery Voltage Range (V)
180~600
Max. Continuous Charging Current (A)
25
Max. Continuous Discharging Current (A)
25
Max. Apparent Power Output to Utility Grid (VA)
11000
Max. Input Current per MPPT (A)
12.5/22
Model
GW8KL-ET
Battery Voltage Range (V)
180~600
Max. Continuous Charging Current (A)
25
Max. Continuous Discharging Current (A)
25
Max. Apparent Power Output to Utility Grid (VA)
8800
Max. Input Current per MPPT (A)
12.5/22
Model
GW6KL-ET
Battery Voltage Range (V)
180~600
Max. Continuous Charging Current (A)
25
Max. Continuous Discharging Current (A)
25
Max. Apparent Power Output to Utility Grid (VA)
6600
Max. Input Current per MPPT (A)
12.5/12.5
Model
GW5KL-ET
Battery Voltage Range (V)
180~600
Max. Continuous Charging Current (A)
25
Max. Continuous Discharging Current (A)
25
Max. Apparent Power Output to Utility Grid (VA)
5500
Max. Input Current per MPPT (A)
12.5/12.5
