21A
IP66

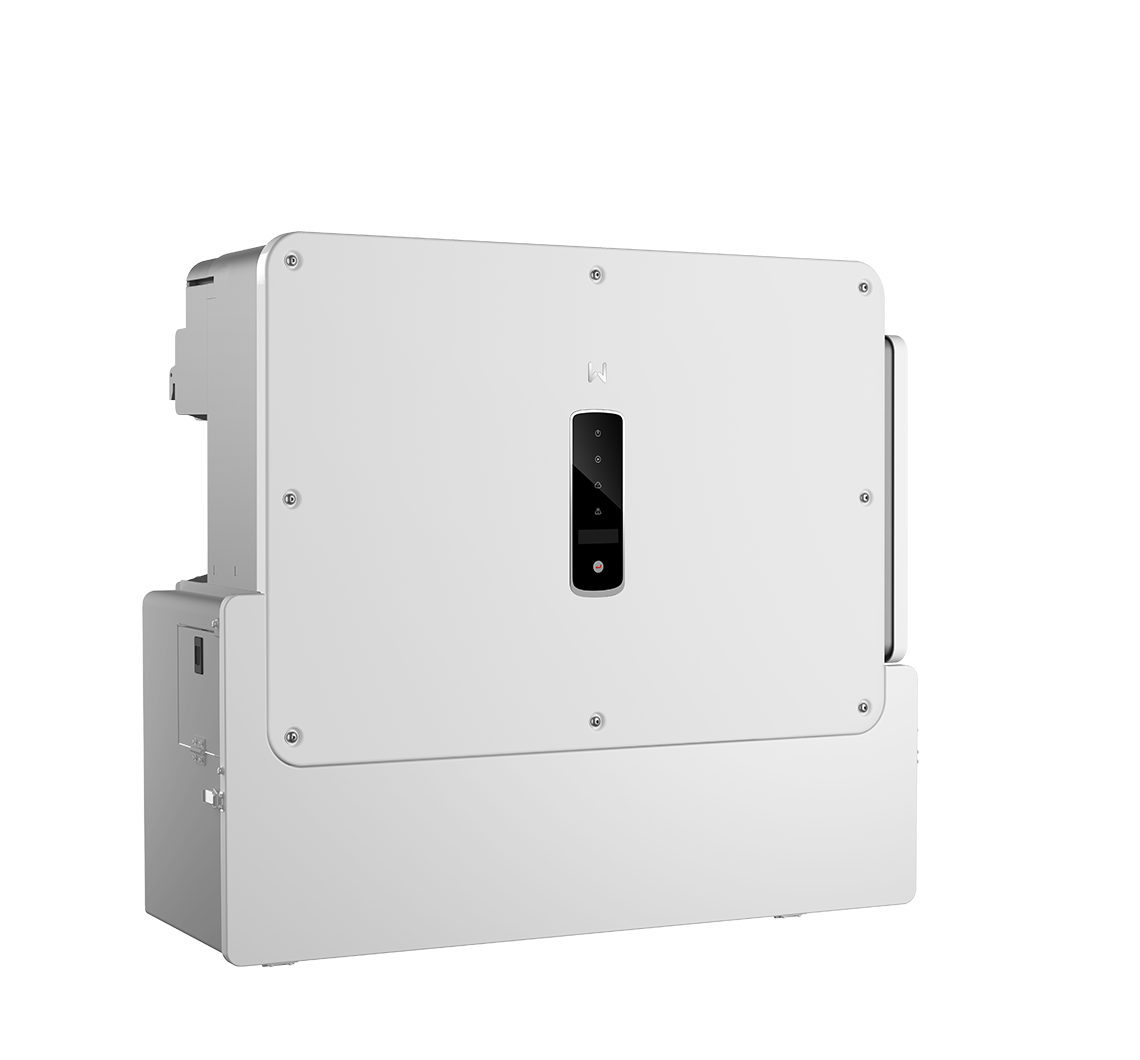

The GT Series string inverter is an ideal choice for commercial and industrial (C&I) applications to enhance productivity and realize high power density. Up to 10 MPPTs and high input current of 21A per DC string increase the overall yield with high-power PV modules. A new designed DC & AC cover, plus a flexible AC entry box is compatible with 95mm2 AC cable to make installations faster and easier. The optional PID (Potential Induced Degradation) recovery function is also supported for better module performance. Safety is always the first priority. Both the DC and AC sides are equipped with Type II surge protection to protect the inverter from lightning, providing upgraded safety and reliability for the PV system. With a noise level of 70dB, IP66 rating, 150% DC input oversizing and paralleling capabilities of up to 60 units, the GT Series offers an unrivaled set of features to deliver increased return on investment (ROI) for C&I PV projects.
8/10 MPPTs, max. Efficiency 99.0%
Type II Surge Protection & AFCI as standard
21A DC input current per string
String level monitoring
21A
IP66
Superb Safety & Reliability
Equipped with IP66 and C5 protection, GT Series endures harsh environments for stable performance throughout its life cycle. Both the DC side and AC side are equipped with Type II surge protection to protect the inverter from lightning, providing upgraded safety and reliability for the PV system.
IP66 and optional C5 protection
Type II Surge Protection & AFCI as standard
-2.png)
Optimal Generation for Higher Return
With the compatibility with bi-facial modules and maximum 21A DC input current per string, GT can deliver comprehensive commercial energy yields for increased ROI.
150%
DC input oversizing
110%
AC output overloading
99.0%
Max. Efficiency
OVERVIEW
-31.png)
-32.png)
-33.png)
Model
GW125K-GT
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
42
Number of MPP trackers/Number of Strings per MPPT:
10/2
Max. Efficiency :
99%
Nominal Output Voltage (V) :
220/380, 230/400, 3L/N/PE or 3L/PE
Model
GW110K-GT
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
42
Number of MPP trackers/Number of Strings per MPPT:
10/2
Max. Efficiency :
98.8%
Nominal Output Voltage (V) :
220/380, 230/400, 3L/N/PE or 3L/PE
Model
GW100K-GT
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
42
Number of MPP trackers/Number of Strings per MPPT:
8/2
Max. Efficiency :
98.8%
Nominal Output Voltage (V) :
220/380, 230/400, 3L/N/PE or 3L/PE
