HCA Series

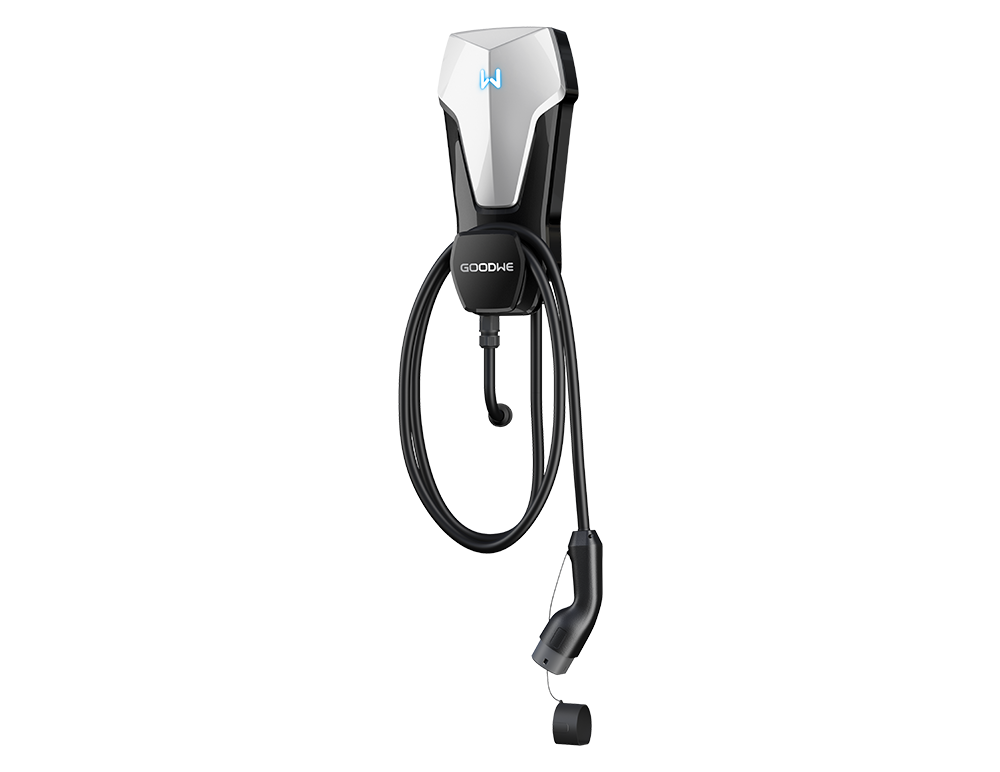

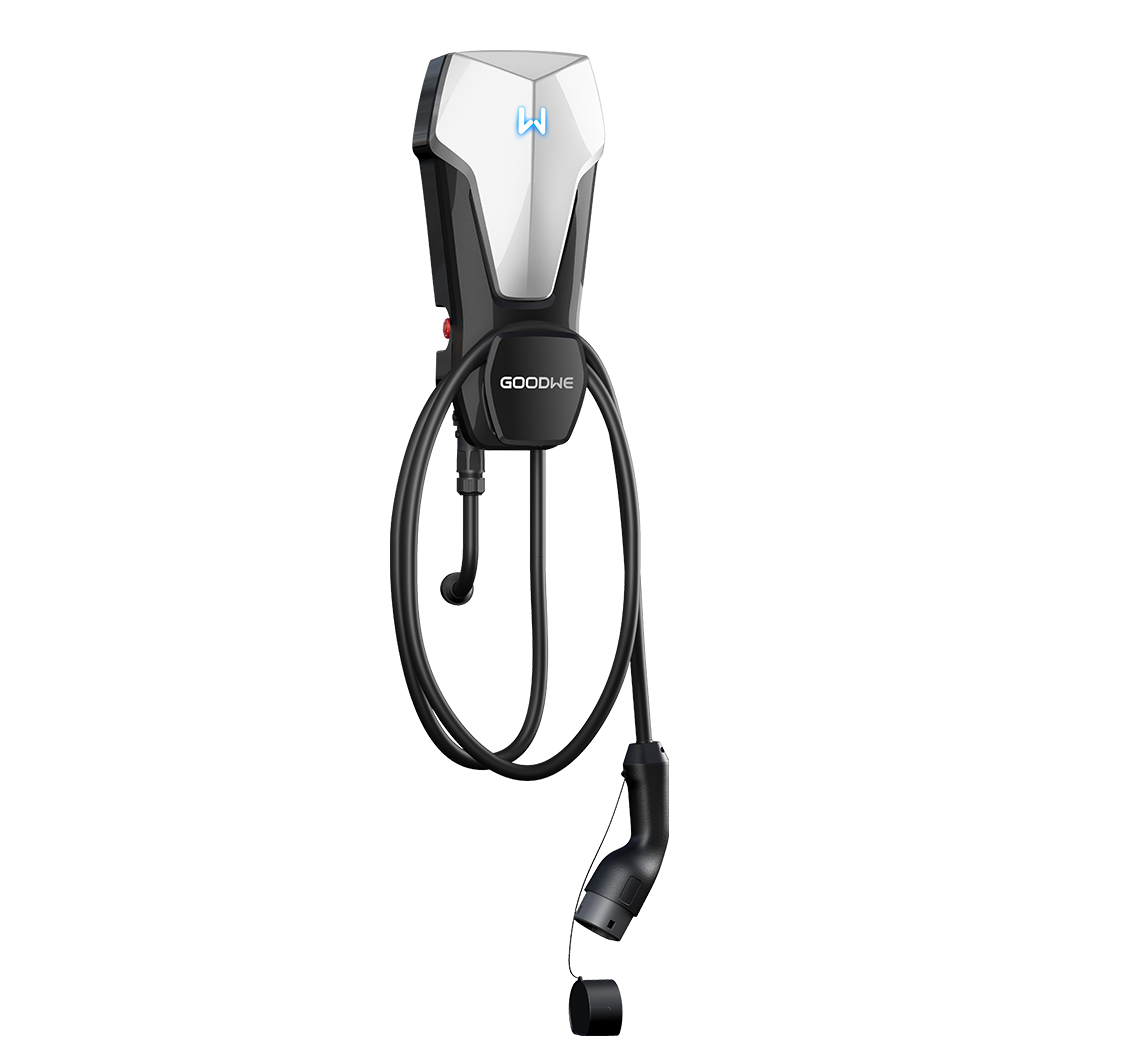

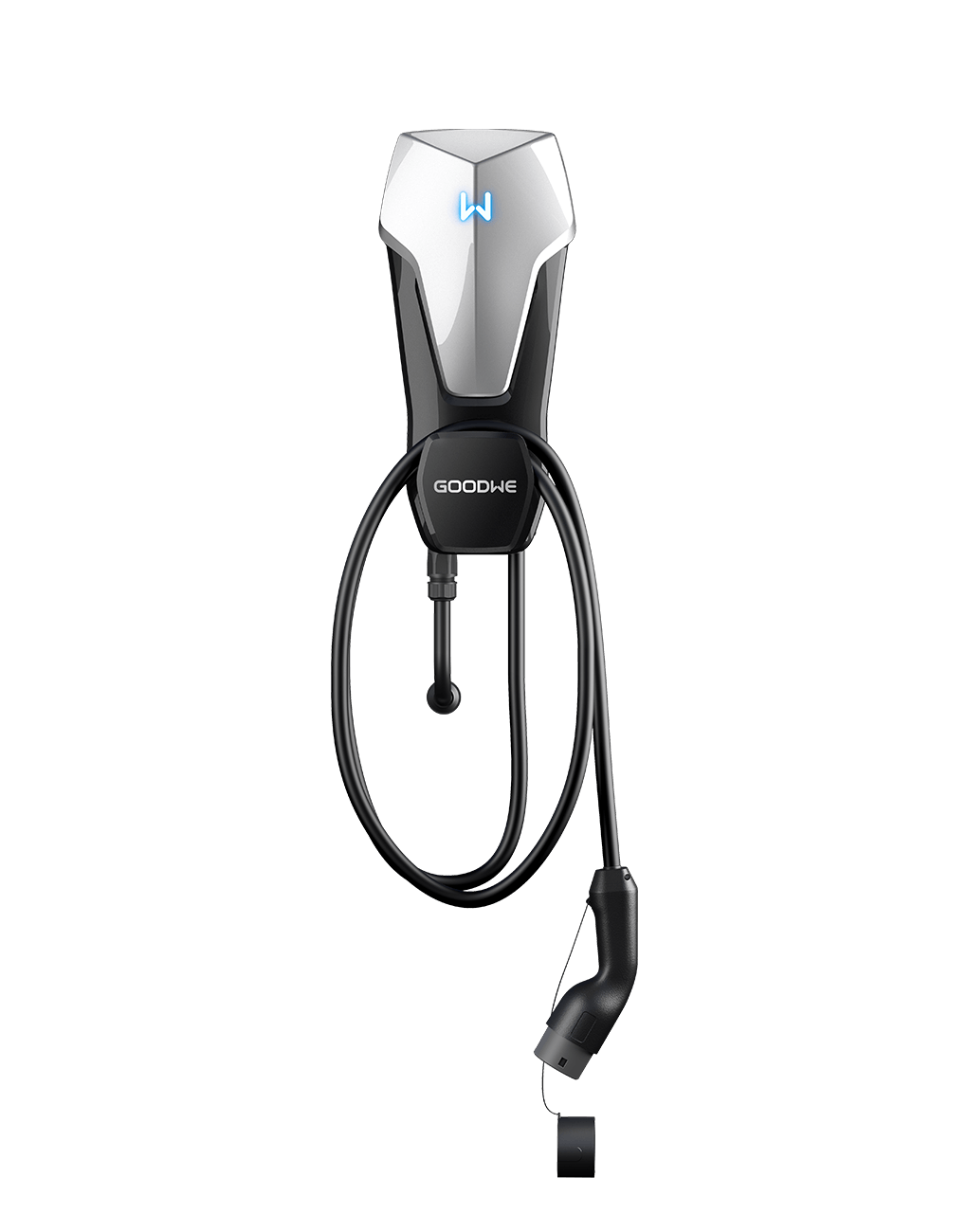

AC Charger | Single Phase - 7kW | Three Phase - 11/22kW
DOWNLOAD PDF >>
Compact & Lightweight
IP66 Design
With rising energy prices and lower feed-in-tariffs, solar system owners are now looking to maximise self-consumption and back-up of PV power, by combining GoodWe inverters and our Lynx Home Series battery options for a smart and highly efficient energy storage system. Owners with an electric vehicle (EV) can expand their system even further by including a GoodWe EV Charger to maximise their energy independence.
Easy to install and maintain
Compatible with all branded EVs
Intelligent monitoring & scheduling
IP66 design for indoor/outdoor use
Compact & Lightweight
IP66 Design
Remote Control & Monitoring
The GoodWe EV Charger provides various communication options and integrates seamlessly with the cost-free monitoring platform SEMS. Therefore, system owners are able to intelligently monitor both the PV and charging systems, schedule charging processes, and optimize all household energy.
Intelligent monitoring & scheduling
Manage PV and charging systems via SEMS
Modern & User-friendly Design
With wall-mounted and pole-mounted design as well as IP66 protection against all weather conditions, the GoodWe EV Charger is a great option whether you want to install it indoors or outdoors. Small, lightweight, and compact, the EV Charger can be installed and maintained in a hassle-free manner.
Easy to install and maintain
Wall-mounted or pole-mounted design
IP66 design for indoor/outdoor use
OVERVIEW
Model
GW22K-HCA
Nominal Input Voltage (V)
400, 3L / N / PE
Nominal AC Grid Frequency (Hz)
50 / 60
Nominal Output Power (W)
22000
Nominal Output Current (A)
32
Dimension (W × H × D mm)
208 × 450 × 150
Model
GW11K-HCA
Nominal Input Voltage (V)
400, 3L / N / PE
Nominal AC Grid Frequency (Hz)
50 / 60
Nominal Output Power (W)
11000
Nominal Output Current (A)
16
Dimension (W × H × D mm)
208 × 450 × 150
Model
GW7K-HCA
Nominal Input Voltage (V)
230, L / N / PE
Nominal AC Grid Frequency (Hz)
50 / 60
Nominal Output Power (W)
7000
Nominal Output Current (A)
32
Dimension (W × H × D mm)
208 × 450 × 150
