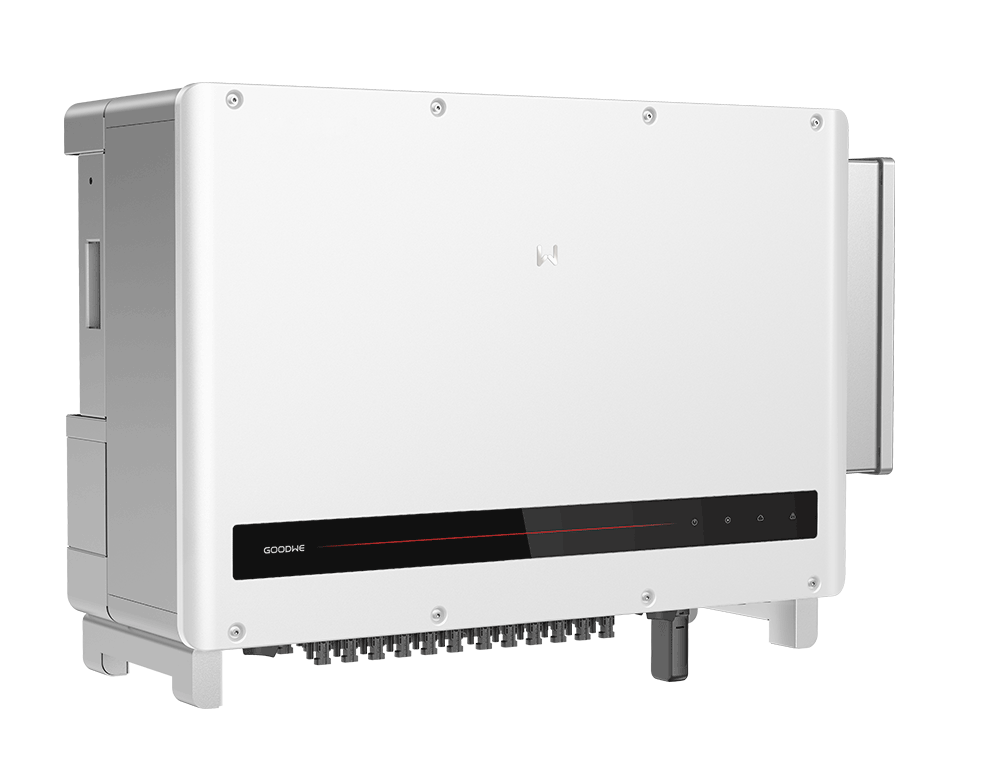

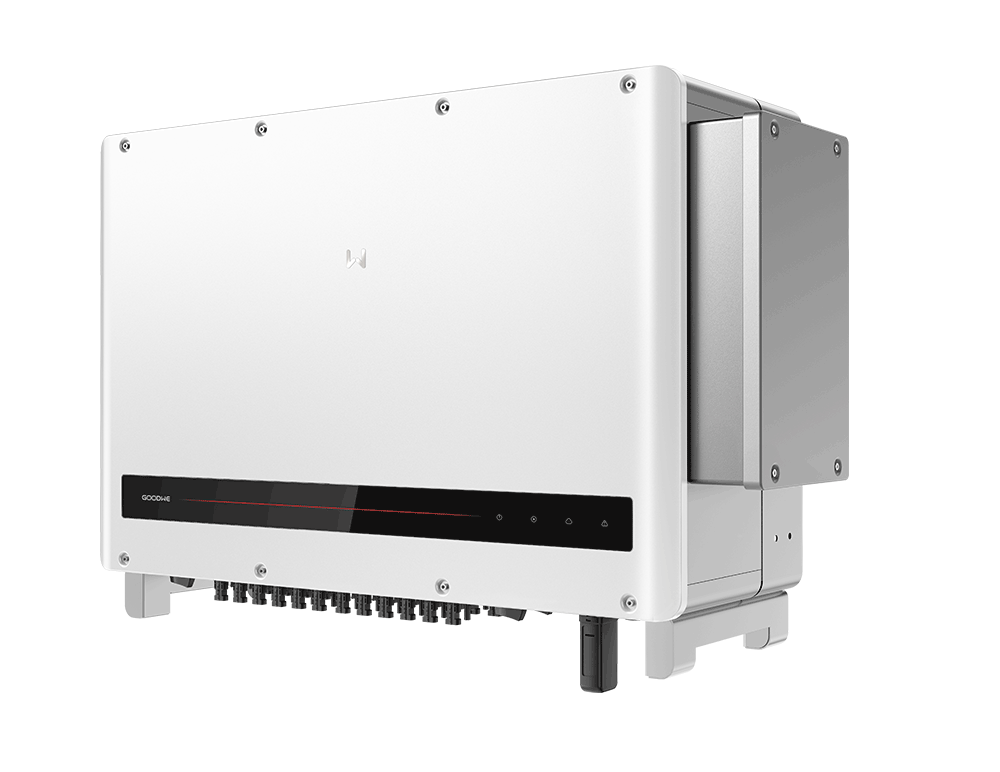

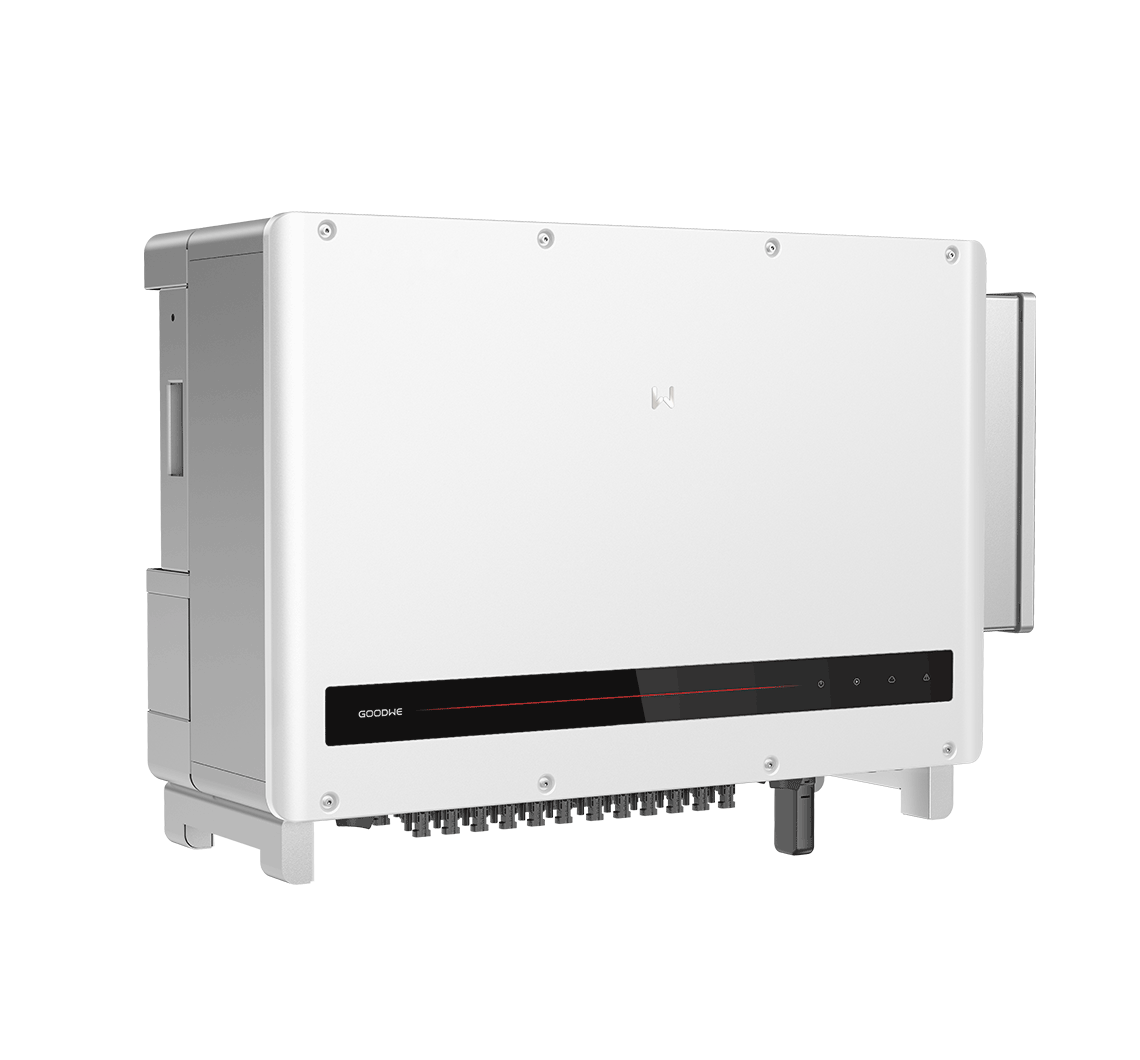

HT Series

100-120 kW | Three phase ∣ Up to 12 MPPTs

DOWNLOAD PDF >>

Scroll

PLC

Type I

The new HT 1100Vdc series (100-136kW) of inverters are suited for Commercial and small utility scale applications and is compatible with bifacial modules, with a higher threshold of DC current (Max. 15A per string). It also includes PLC communication and internal humidity detection and up to 12 MPPTs for the most complex rooftop configurations. The HT series seamlessly incorporates different sets of technical strengths designed to achieve higher savings in the installation, enhance productivity and diversify available monitoring options, taking safety to the maximum possible level in accordance with the strictest industry standards. This inverter comes with an optional AC switch for reduced overall costs and reduced installation time. Configuration can be easily done via Bluetooth, while firmware diagnosis and upgrading can be operated remotely. These features and specifications were conceived to ensure the lowest levelized cost of energy (LCOE) and a utility that runs efficiently.


Compatible with bifacial module


Power line communication


Easy and quick configuration via bluetooth


Internal temperature humidity monitoring


PLC

Type I

Optional Type I Surge Protection

Both the DC side and AC side are equipped with optional Type I surge protection to protect the inverter from lightning, providing upgraded safety and reliability for the PV system.


Easy & Quick Setup via Bluetooth

Configuration can be easily done via Bluetooth and firmware diagnosis & upgrading can be operated remotely, offering you convenience and reliability.

OVERVIEW


Model

GW120K-HT

Max. Input Voltage (V):

1100

Max. Input Current per MPPT (A):

30

Number of Strings per MPPT:

2

Nominal Output Power (kW):

120

Nominal Output Voltage (V):

400, 3L/N/PE or 3L/PE

Model

GW110K-HT

Max. Input Voltage (V):

1100

Max. Input Current per MPPT (A):

30

Number of Strings per MPPT:

2

Nominal Output Power (kW):

110

Nominal Output Voltage (V):

400, 3L/N/PE or 3L/PE

Model

GW100K-HT

Max. Input Voltage (V):

1100

Max. Input Current per MPPT (A):

30

Number of Strings per MPPT:

2

Nominal Output Power (kW):

100

Nominal Output Voltage (V):

400, 3L/N/PE or 3L/PE
