PLC 2.0
I-V diagnosis

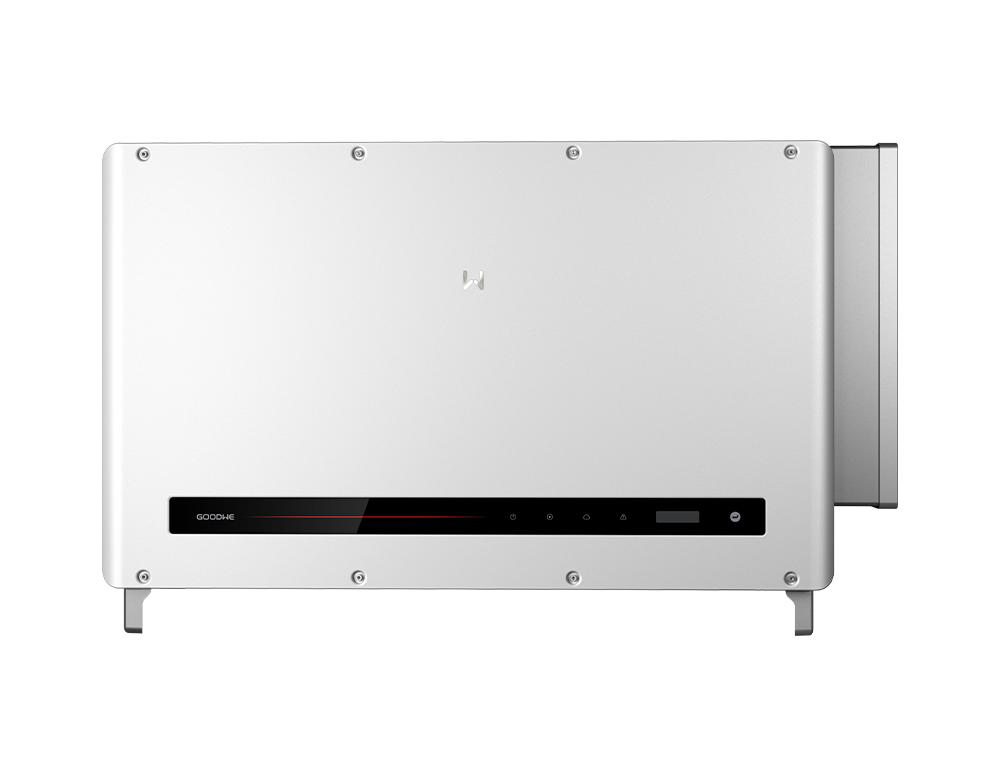

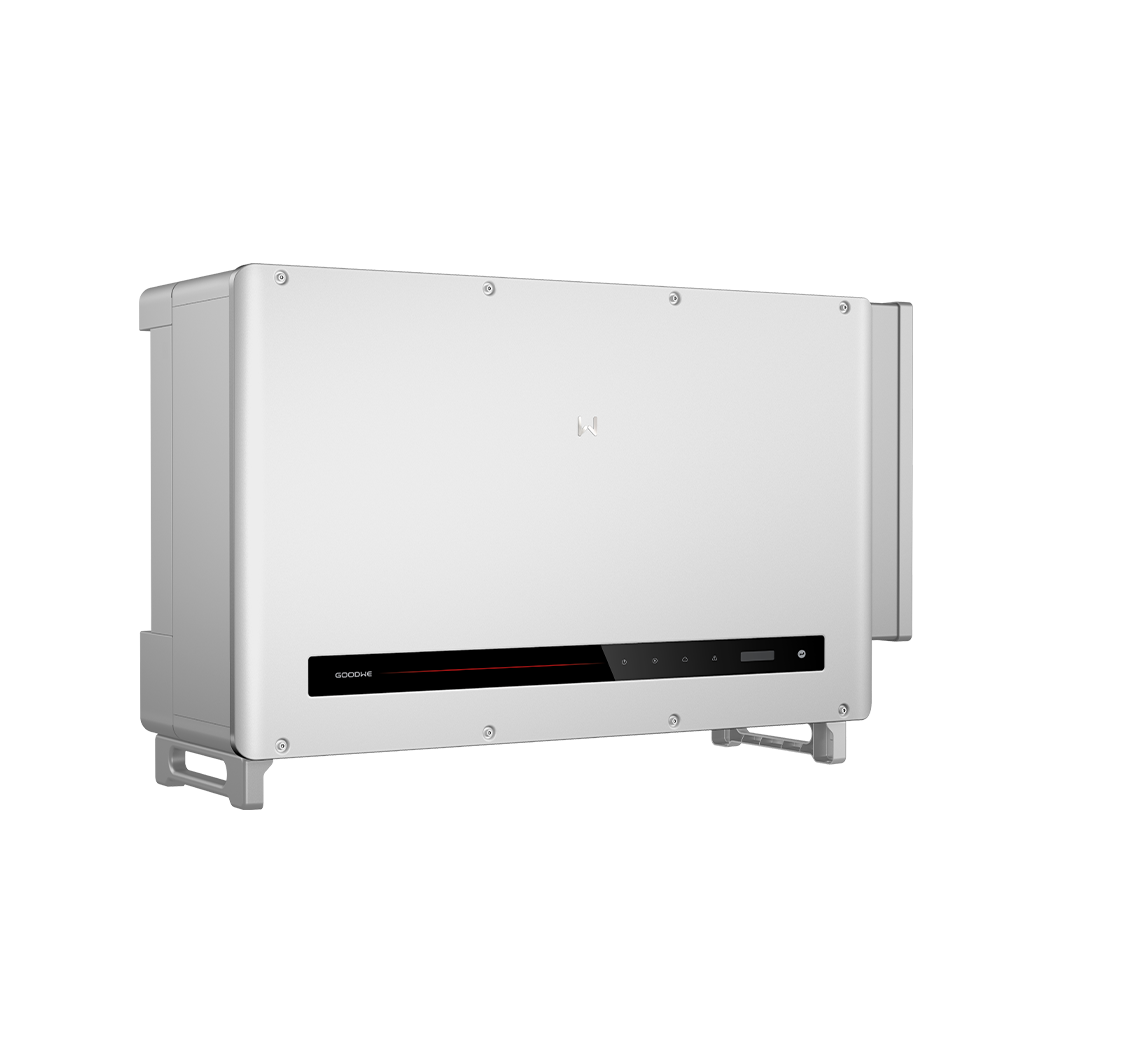

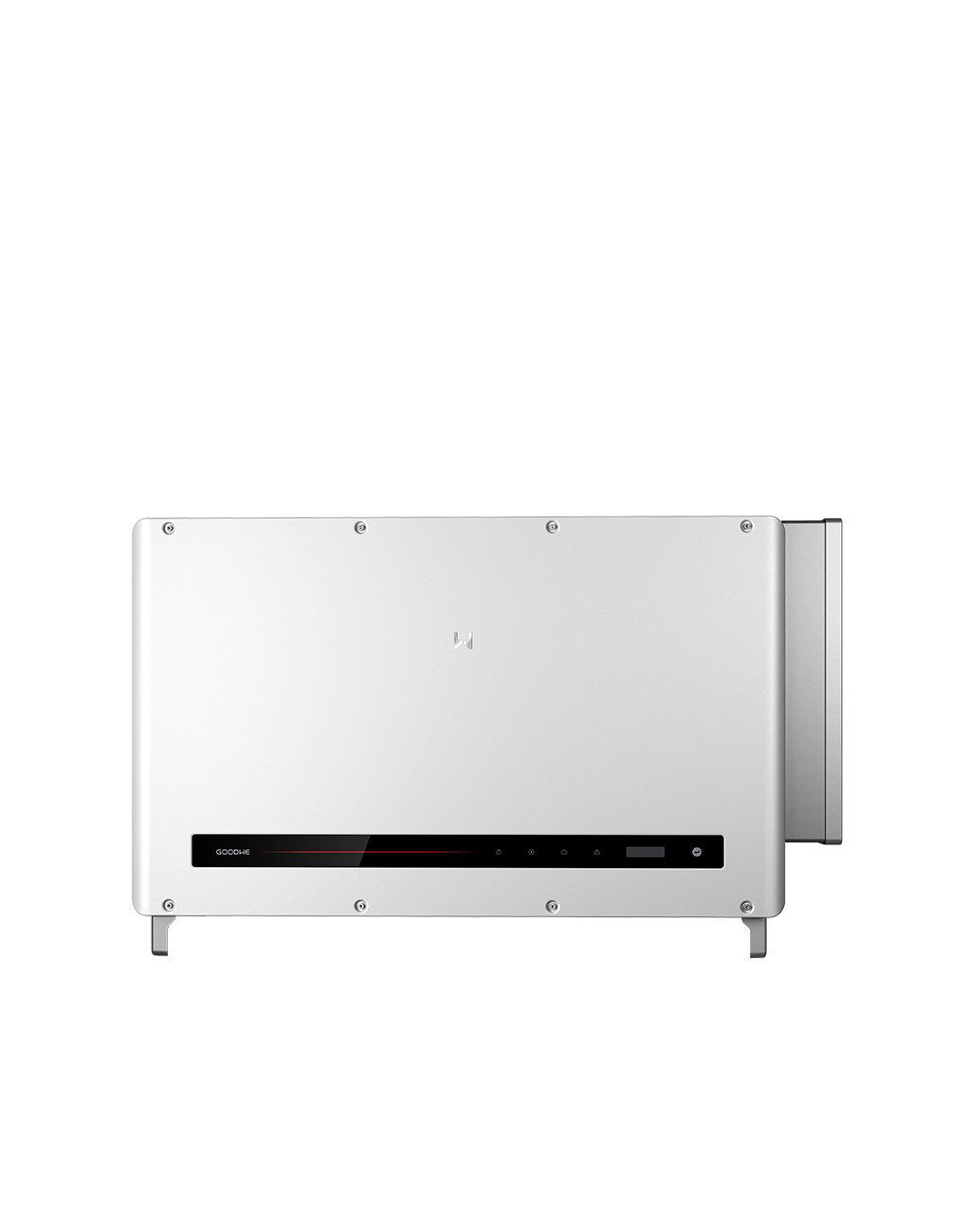

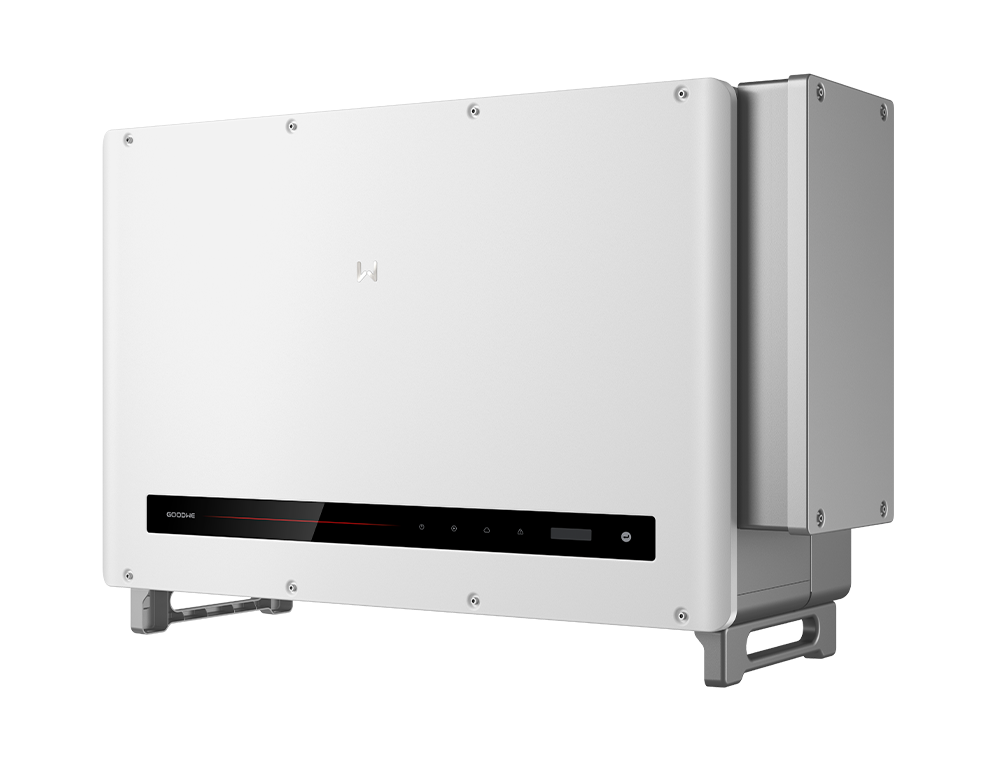

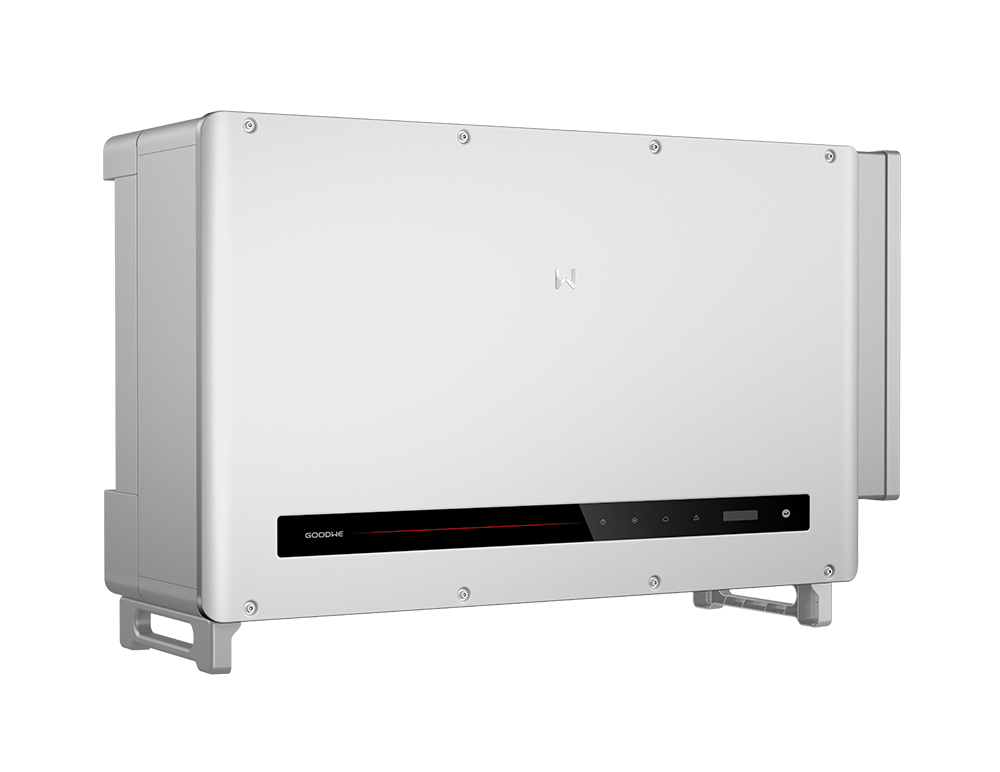

The new HT 1500V series (225/250kW) is GoodWe’s largest inverter, with an extensive list of features designed to reduce system, operation and maintenance costs. It is a perfect choice for utility-scale solar plants, to maximise the return on investment. The series boasts options of 6 MPPTs or 12 MPPTs, power line communication 2.0 and is compatible with bi-facial 182mm/210mm modules. String level monitoring and incorporated I-V curve diagnosis features, provide intelligent detection of voltage and current issues. The series is also equipped with 24 hour monitoring an optional PID recovery function. Configuration of the HT 1500V can be easily done via Bluetooth, while firmware diagnosis and upgrading can be operated remotely. These features and specifications were conceived to ensure the lowest levelized cost of energy (LCOE) and a utility that runs efficiently.
Smart string protection switch
20 A max. current per string
String level monitoring
Power line communication 2.0
PLC 2.0
I-V diagnosis
20 A Max. Current Per String
The HT Series is ideal for high-power 182mm/210mm PV modules on the market, featuring MPPT-level maximum 30 A DC input current and supports max. 15 A DC input current per string, making full use of power generated and guarantees LCOE for clients.
Guaranteed Safety
The HT Series features a smart string protection switch that activates when the inverter detects a short circuit or reverse connection, stop the corresponding MPPTs and reports the fault at the same time to ensure both safety and efficiency. The HT Series also allows for string level monitoring and supports intelligent detection of voltage and current issues, guaranteeing fast troubleshooting.
Smart string protection switch
Data security and fault recording
OVERVIEW
Model
GW250KN-HT
Max. Input Voltage (V):
1500
Max. Input Current per MPPT (A):
60
Number of MPP trackers/Number of Strings per MPPT:
6/3
Max. Efficiency :
99.0%
Nominal Output Voltage (V) :
800, 3L/PE
Model
GW225KN-HT
Max. Input Voltage (V):
1500
Max. Input Current per MPPT (A):
60
Number of MPP trackers/Number of Strings per MPPT:
6/3
Max. Efficiency :
99.0%
Nominal Output Voltage (V) :
800, 3L/PE
Model
GW250K-HT
Max. Input Voltage (V):
1500
Max. Input Current per MPPT (A):
30
Number of MPP trackers/Number of Strings per MPPT:
12/2
Max. Efficiency :
99.0%
Nominal Output Voltage (V) :
800, 3L/PE
Model
GW225K-HT
Max. Input Voltage (V):
1500
Max. Input Current per MPPT (A):
30
Number of MPP trackers/Number of Strings per MPPT:
12/2
Max. Efficiency :
99.0%
Nominal Output Voltage (V) :
800, 3L/PE
