Black Start
100% DOD

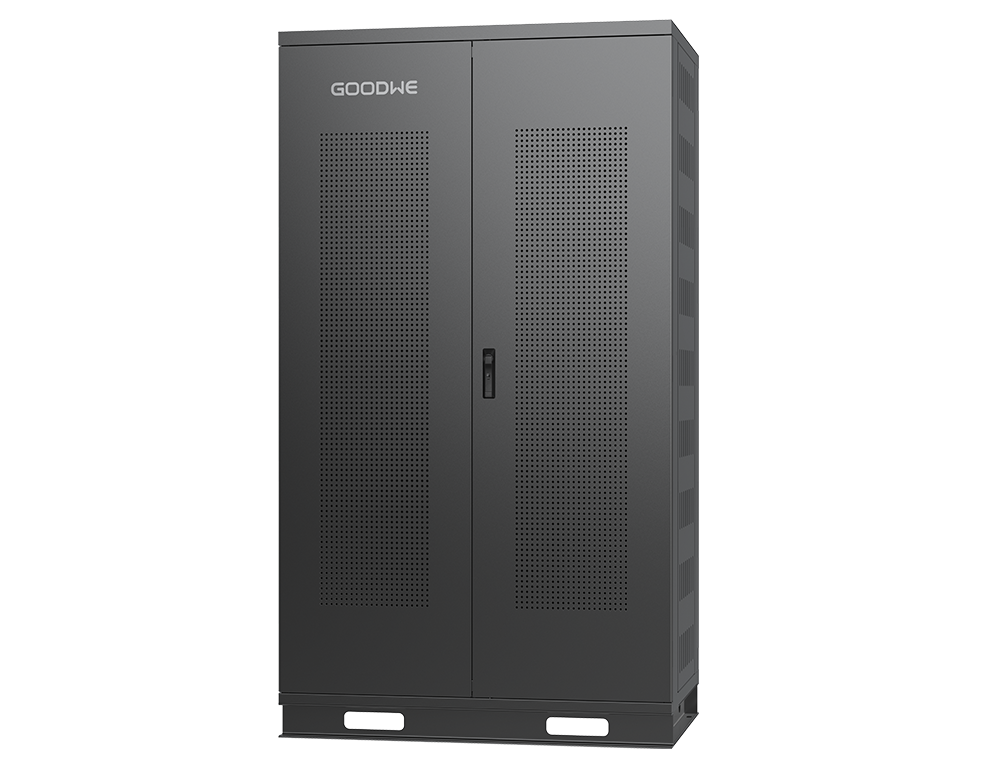

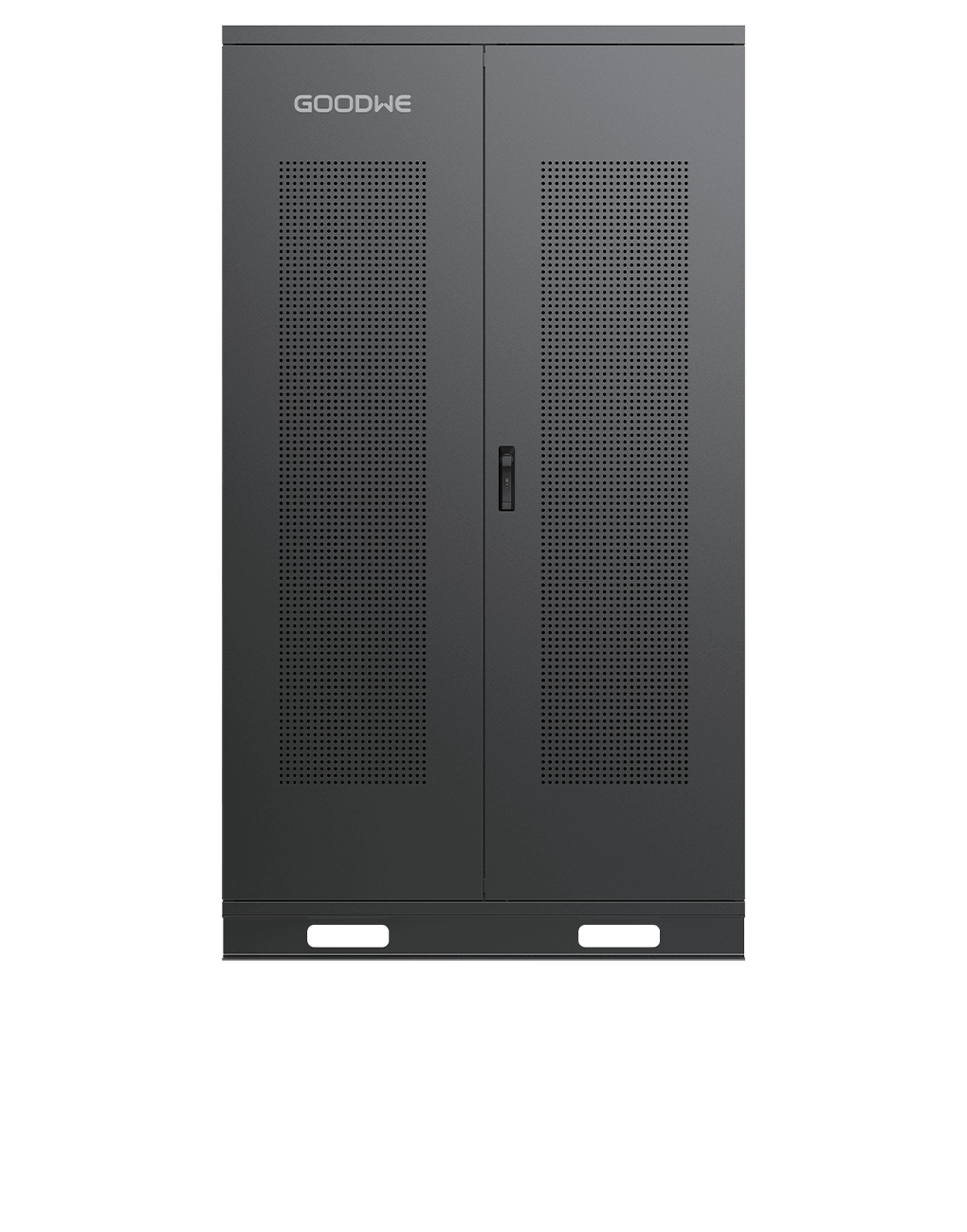

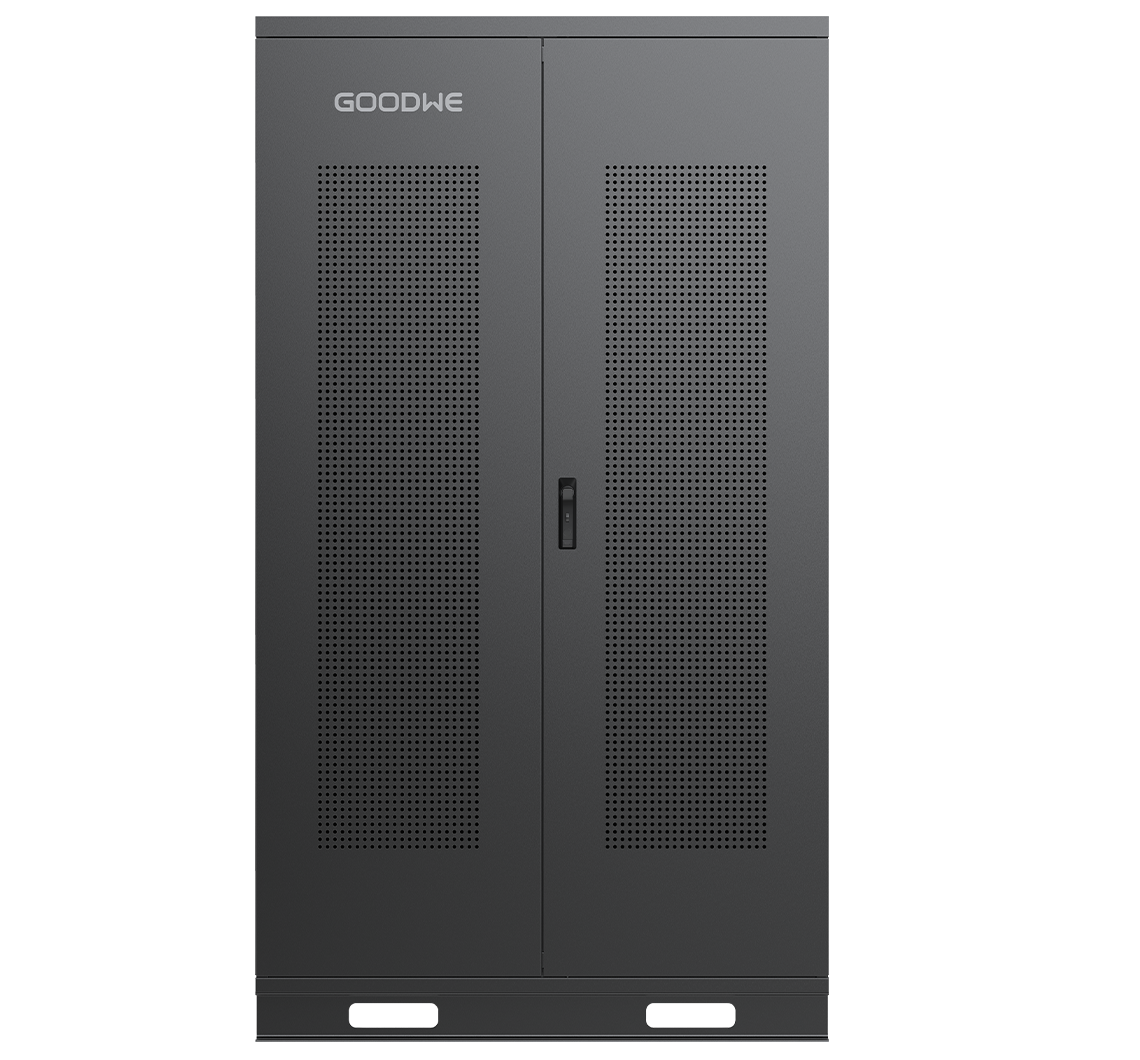

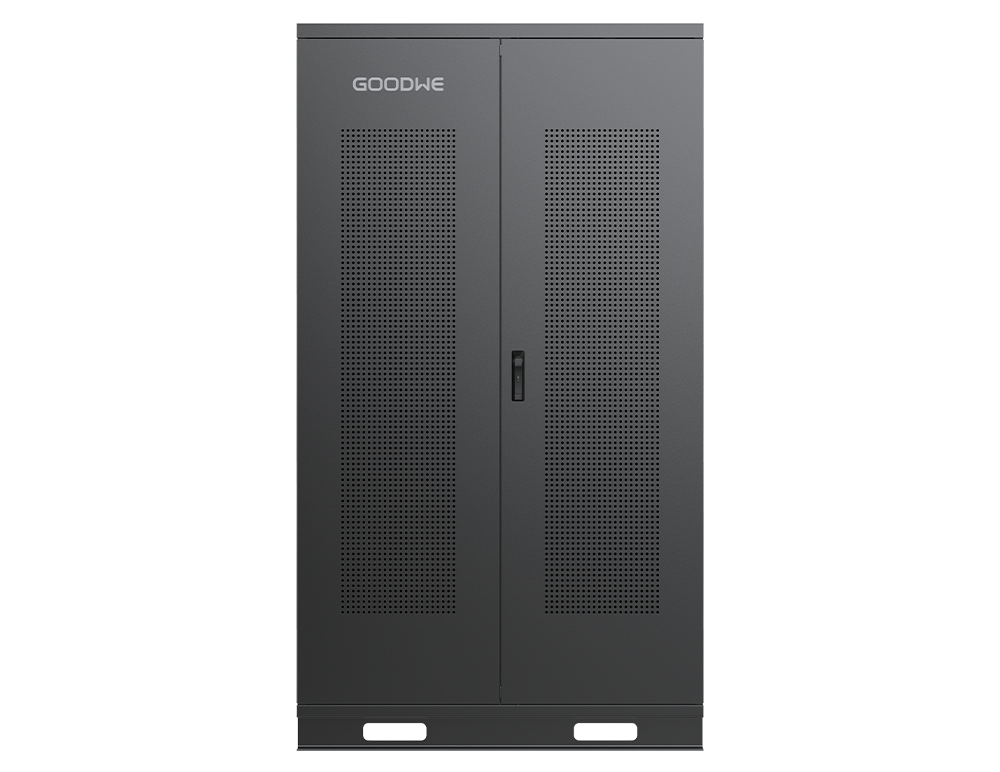

GoodWe's Lynx C Series is a high-voltage battery with capacities ranging from 101 kWh to 156 kWh. Compatible with GoodWe inverters such as BTC and ETC Series, Lynx C Series provides comprehensive energy storage options to meet project requirements for commercial and industrial scale applications. The designs and moderate size of the Lynx C Series allows for easier tranportation and faster installation, and also automatically identifies PV module series for faster system commissioning. In addition, insulation resistance testing is supported to prevent electrical shocks, ensuring greater safety and reducing or eliminating down time. The integrated black start capability and off-grid application, also enables the Lynx C Series to provide reliable power for a wide variety of scenarios.
Remote monitoring & updates via inverter
Easy to transport
LiFePO4 (LFP) battery cells
Auto-recognition modules
Black Start
100% DOD
Smart Control for Smart Energy
Lynx C accommodates smart remote monitoring of the whole energy storage system and remote updates. When the battery is running at a low voltage, it automatically enters the low-power sleep mode, which reduces the standby power consumption and guarantees a longer standby time. Take smart control of your smart energy.
Remote monitoring & updates via inverter
Low-power sleep mode
Superb Safety & Reliability
The integrated black start capability ensures the solar plus storage system can continue to run at a certain level even if the rest of the electricity grid is out of service, resulting in system reliability and safety for various scenarios. Insulation resistance test is supported to prevent electrical shocks, ensuring the safety of personnel and reducing or eliminating downtime. Furthermore, the reliable lithium iron phosphate (LFP) battery cell technology ensures maximum safety and a longer life cycle.
Black start capability
Reliable LFP technology with high cycle stability
Insulation resistance test
OVERVIEW
Model
LX C156-10
Usable Energy (kWh)
156.67
Nominal Voltage (V)
652.8
Nominal Charging / Discharging Current (A)
100/100
Installation Location
Ground-Mounted
Enclosure Type
IP21
Model
LX C138-10
Usable Energy (kWh)
138.24
Nominal Voltage (V)
576.0
Nominal Charging / Discharging Current (A)
100/100
Installation Location
Ground-Mounted
Enclosure Type
IP21
Model
LX C120-10
Usable Energy (kWh)
119.81
Nominal Voltage (V)
499.2
Nominal Charging / Discharging Current (A)
100/100
Installation Location
Ground-Mounted
Enclosure Type
IP21
Model
LX C101-10
Usable Energy (kWh)
101.38
Nominal Voltage (V)
422.4
Nominal Charging / Discharging Current (A)
100/100
Installation Location
Ground-Mounted
Enclosure Type
IP21
