IP65
Auto recognition

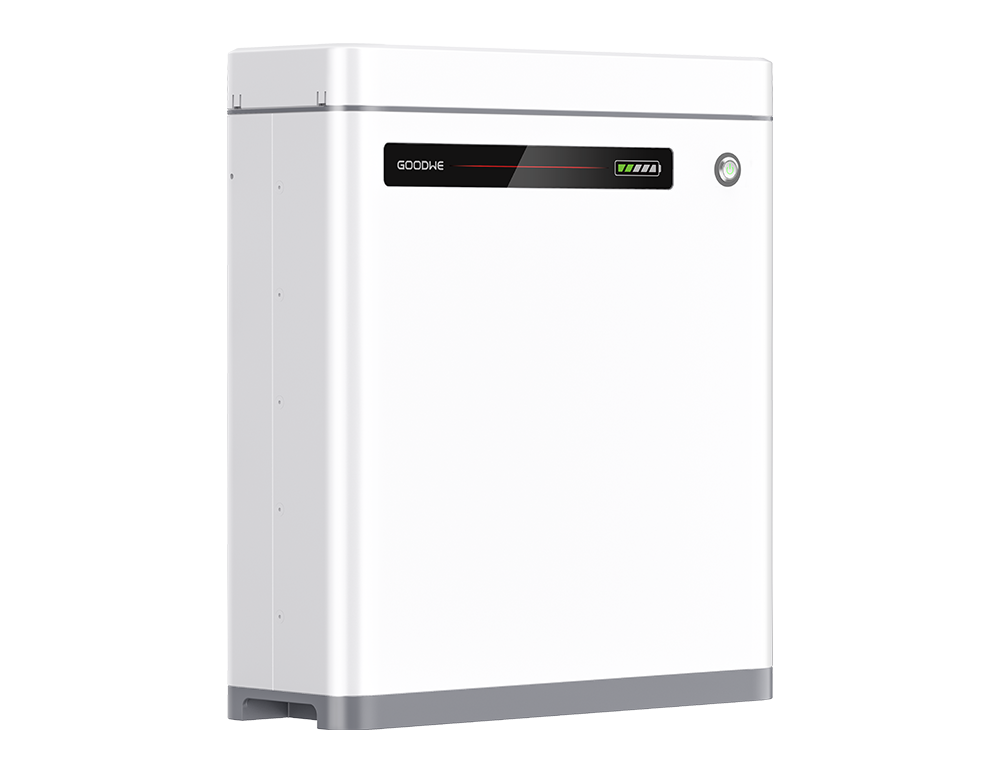

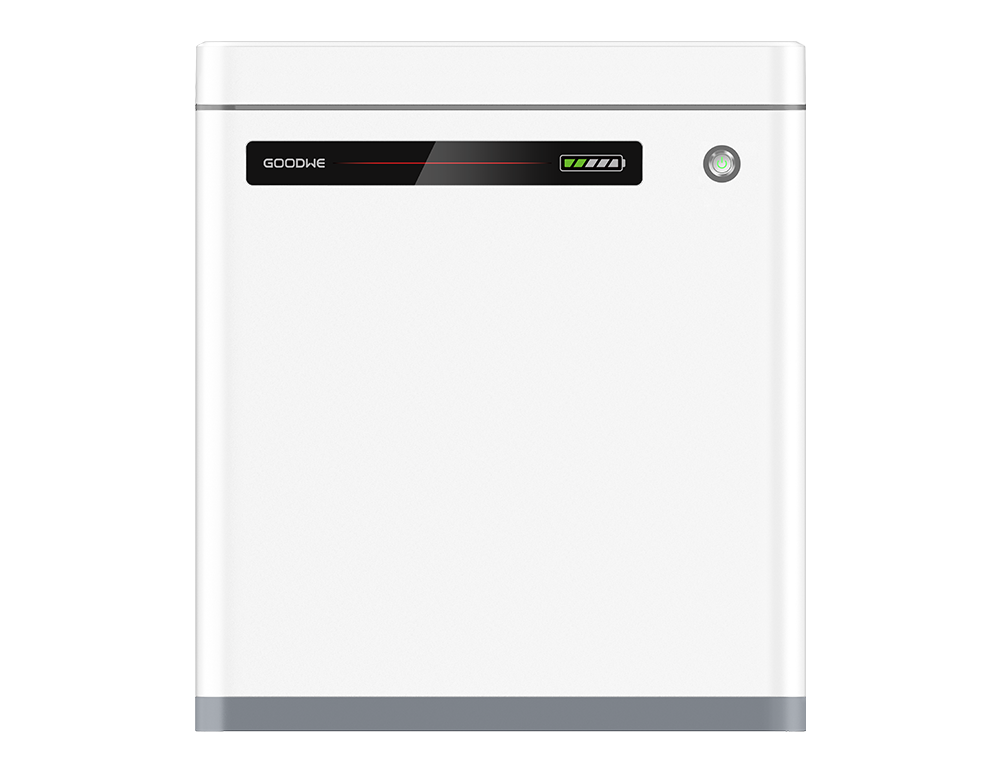

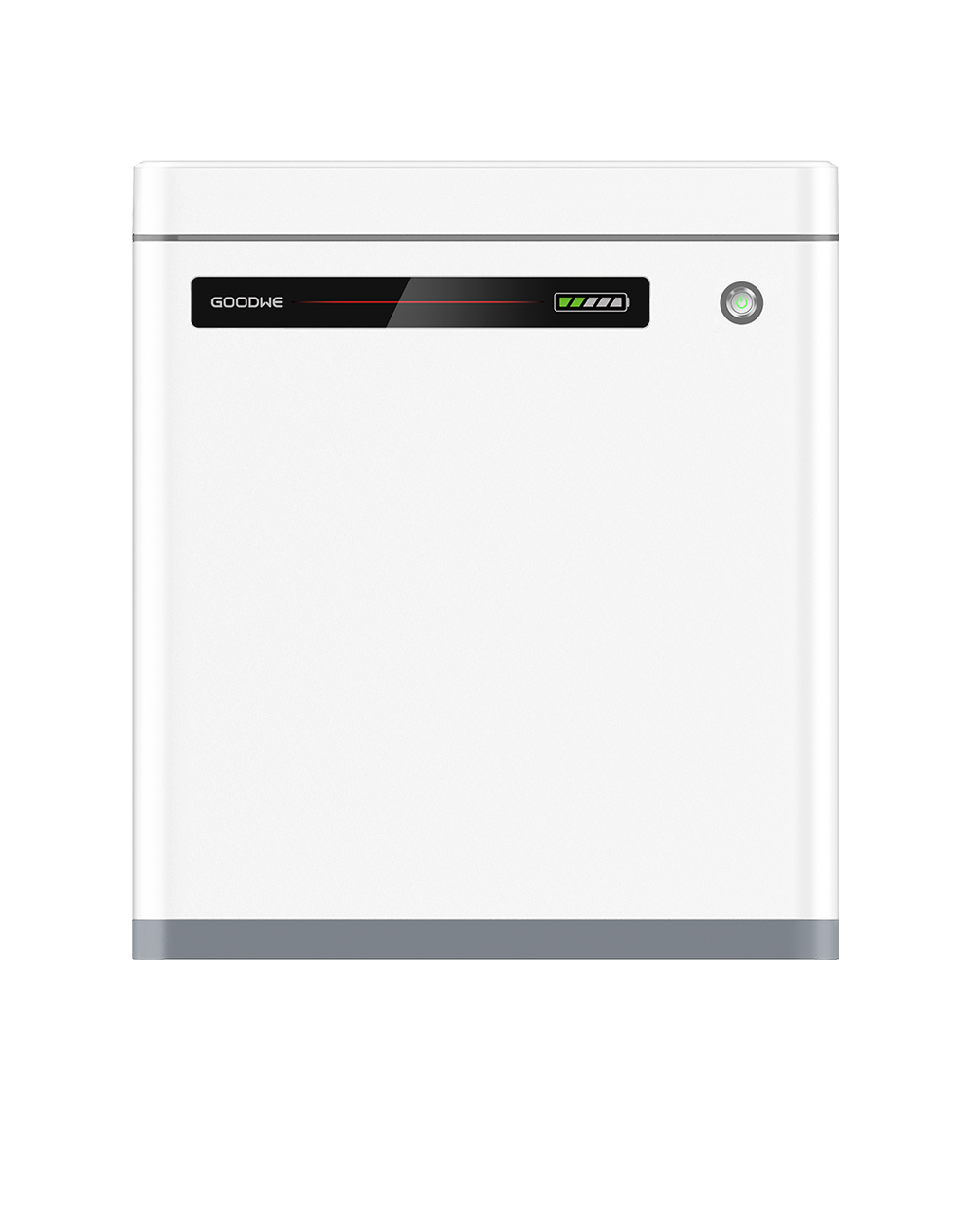

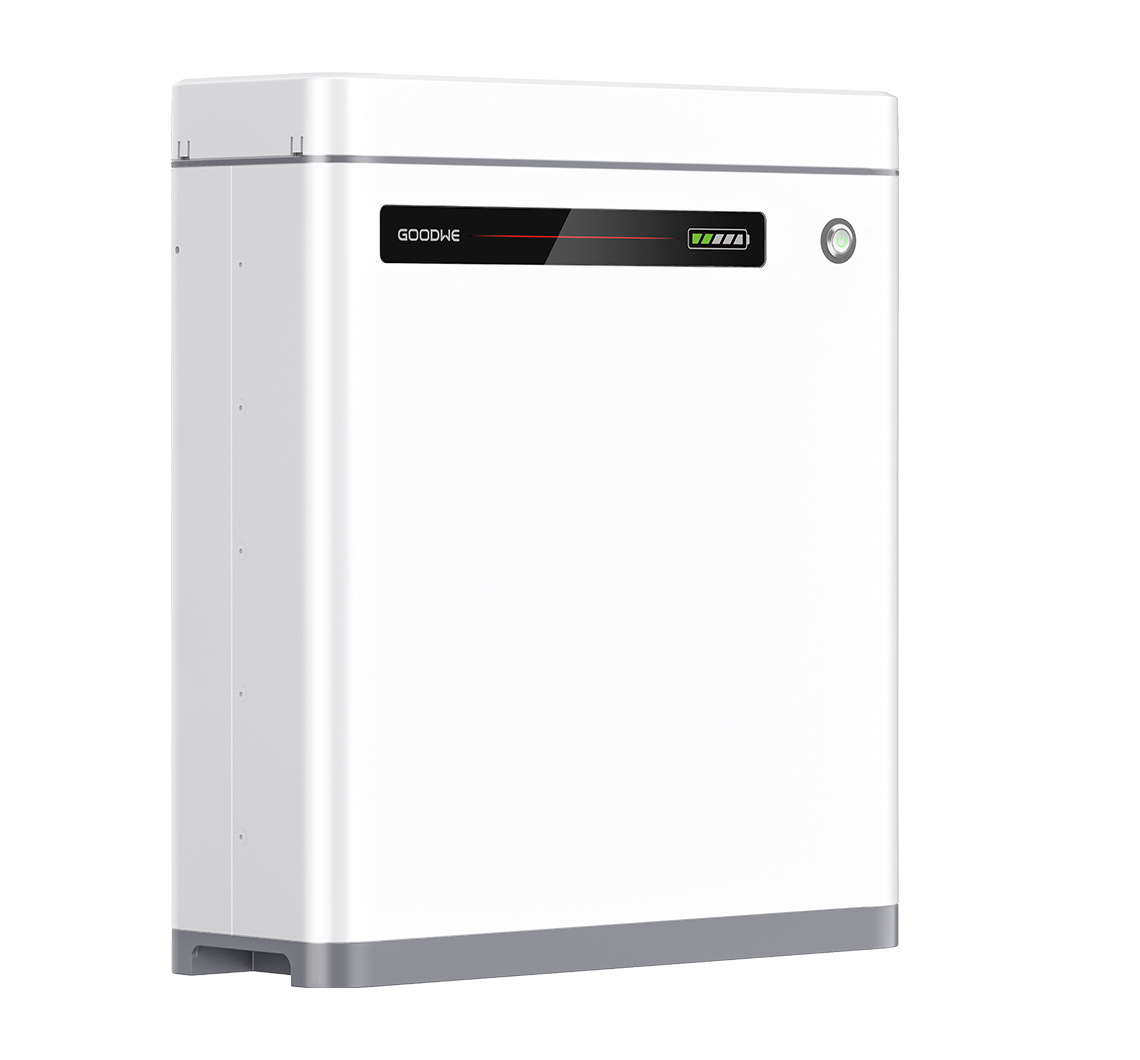

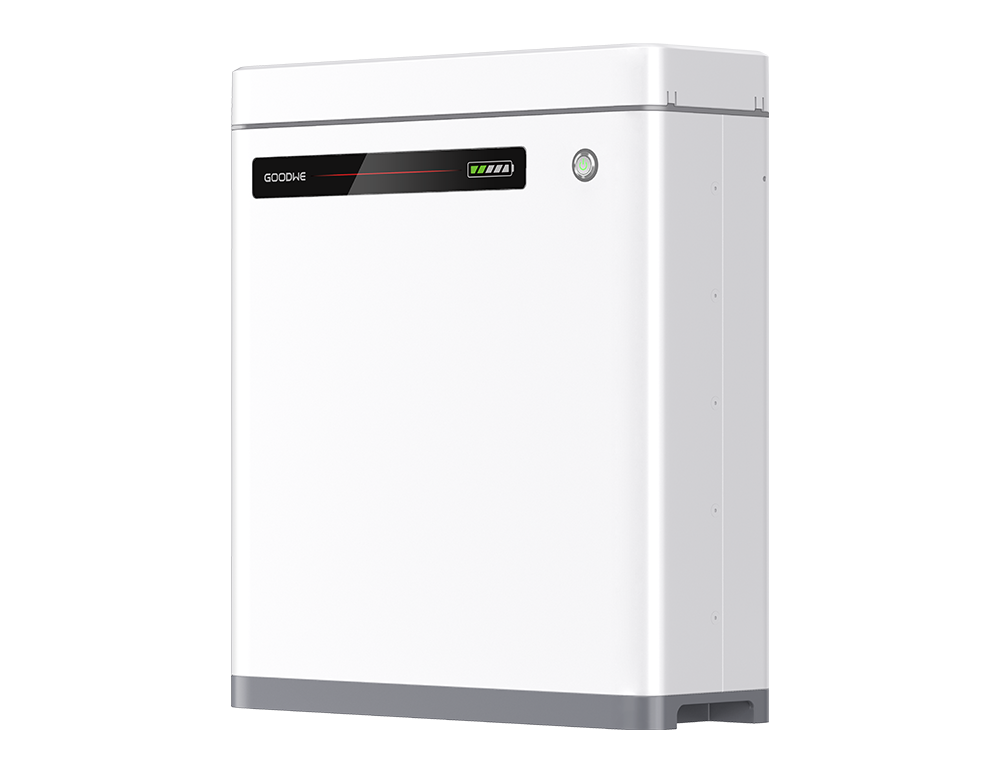

GoodWe’s Lynx Home U Series is a low voltage lithium battery especially designed for residential applications with superior performance, the safest battery technology (LFP) and optimized user experience. The in-built auto recognition function and the plug & play design allow for easy installation.
Module auto recognition
Remote diagnosis & upgrade
Auto under-voltage reboot
IP65 protection level
IP65
Auto recognition
Flexible & Easier Installation
GoodWe Lynx Home U Series is equipped with IP65 protection level, which allows wall-/floor-mounted installation indoor and outdoor.
Easy to Install and Maintain
The battery can be automatically recognized to skip the dial setting progress, simplifying installation. With the most practical functions, remote diagnosis & upgrade and auto under-voltage reboot, Lynx Home U Series helps you economize on the time-consuming installations and maintenance with minimalized efforts.
Module auto recognition
Remote diagnosis & upgrade
Auto under-voltage reboot
OVERVIEW
Model
LX U5.4-20
Usable Energy (kWh)
5.4
Nominal Voltage (V)
51.2
Nominal Charging / Discharging Current (A)
50 / 50
Installation Location
Wall Mounted / Grounded
Enclosure Type
IP65
Model
2*LX U5.4-20
Usable Energy (kWh)
10.8
Nominal Voltage (V)
51.2
Nominal Charging / Discharging Current (A)
100 / 100
Installation Location
Wall Mounted / Grounded
Enclosure Type
IP65
Model
3*LX U5.4-20
Usable Energy (kWh)
16.2
Nominal Voltage (V)
51.2
Nominal Charging / Discharging Current (A)
100 / 100
Installation Location
Wall Mounted / Grounded
Enclosure Type
IP65
Model
4*LX U5.4-20
Usable Energy (kWh)
21.6
Nominal Voltage (V)
51.2
Nominal Charging / Discharging Current (A)
100 / 100
Installation Location
Wall Mounted / Grounded
Enclosure Type
IP65
Model
5*LX U5.4-20
Usable Energy (kWh)
27.0
Nominal Voltage (V)
51.2
Nominal Charging / Discharging Current (A)
100 / 100
Installation Location
Wall Mounted / Grounded
Enclosure Type
IP65
Model
6*LX U5.4-20
Usable Energy (kWh)
32.4
Nominal Voltage (V)
51.2
Nominal Charging / Discharging Current (A)
100 / 100
Installation Location
Wall Mounted / Grounded
Enclosure Type
IP65
