3 MPPTs
200% oversizing

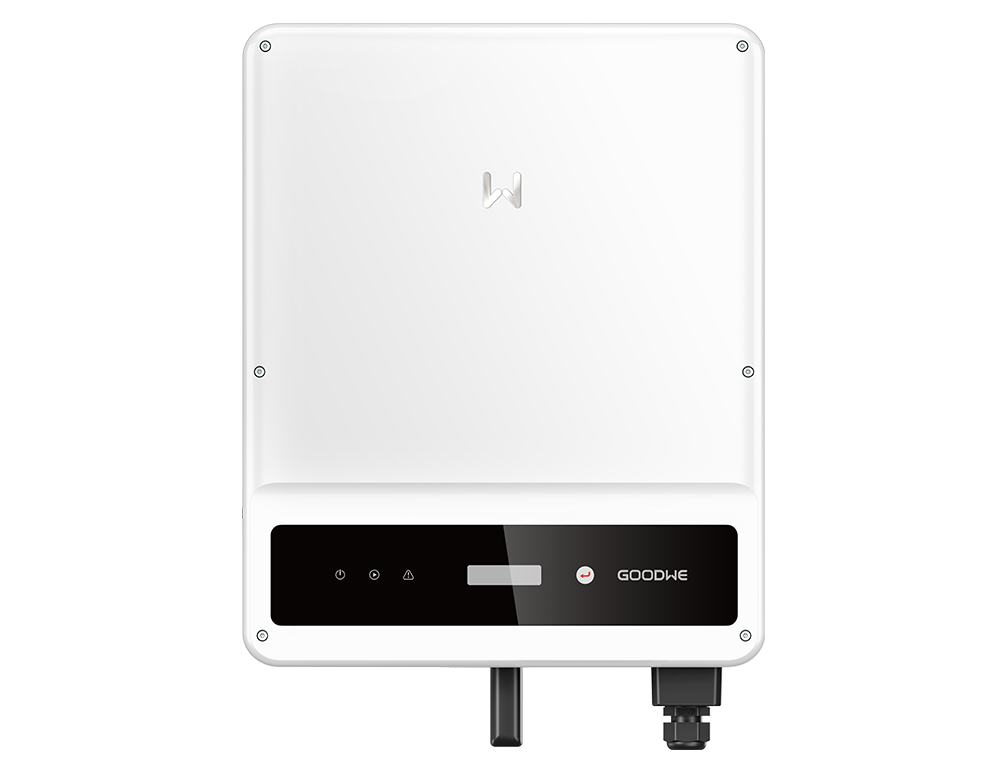

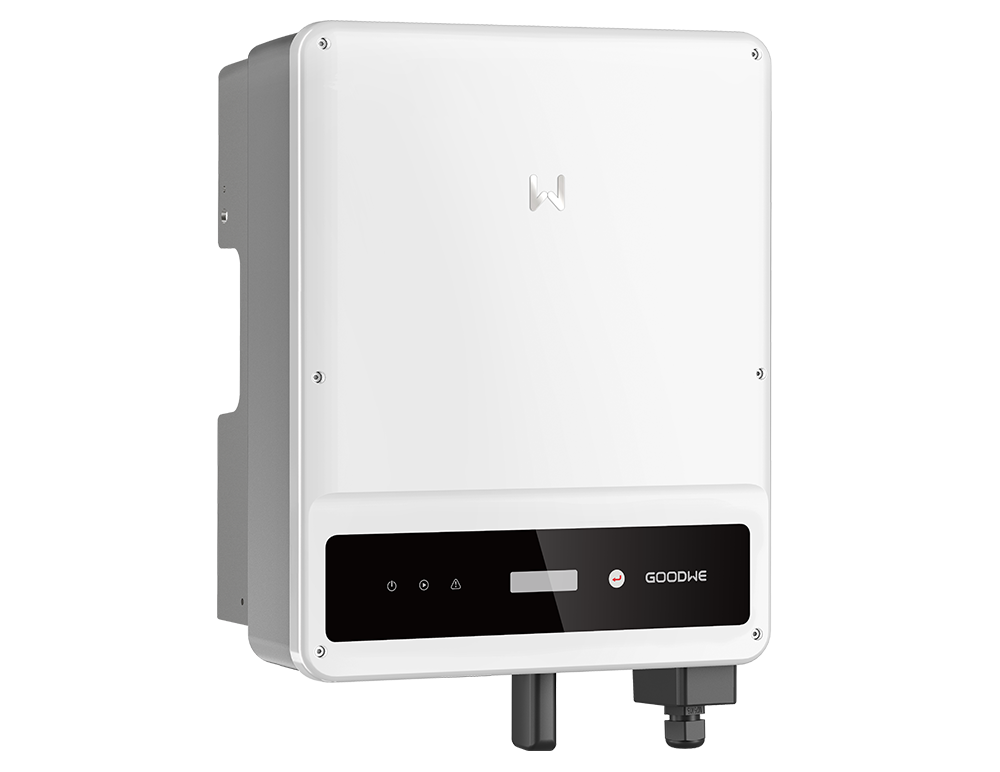

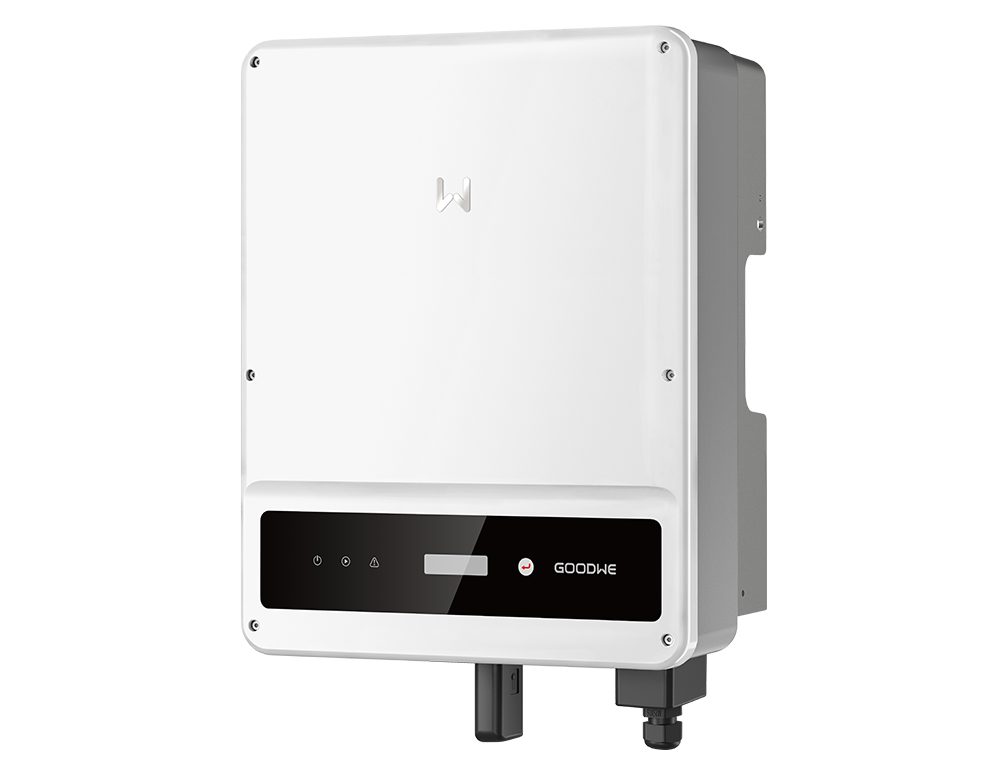

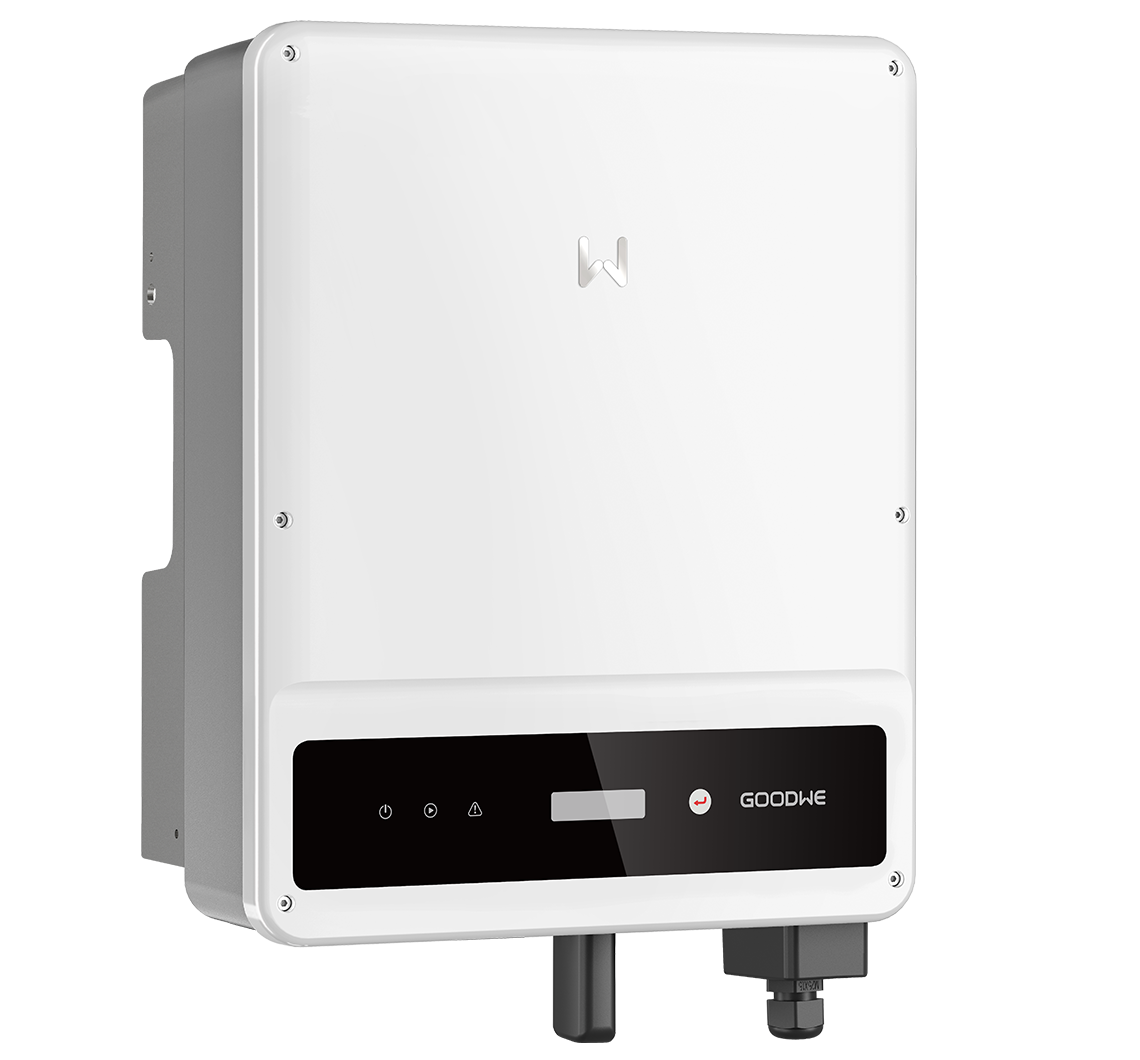

The MS Series of 5-10kW single phase inverters with 3 MPPTs for complex rooftops, is a powerful and versatiles solution for the expanding needs of the residential market. It is truly a champion over the competition in terms of DC oversizing, offering as much as 200% and achieving up to 110% AC overloading. With a start-up voltage of only 80V, the MS series is able to generate electricity earlier than equivalent products, achieving a high efficiency of 97.7%. The MS is compatible with bi-facial modules and its maximum current input reaches 16 A per string. The MS also comes with integrated Arc-Fault Circuit Interrupter (AFCI) protection and is lightweight for easy installation.
Compatible with bi-facial modules
80V startup voltage
Up to 110% AC output overloading
Up to 200% DC input oversizing
3 MPPTs
97.7% max. efficiency
3 MPPTs
200% oversizing
Low Startup Voltage, High Generation Yield
The startup voltage of MS series only requires 80 V. This considerably low startup voltage distinguishes from the competitors that the solar system can generate power from dawn to dusk and even in very weak sunshine or irradiation whether condition, harness as much solar energy as possible.
High Power Generation
With 200% DC input oversizing and 110% AC output overloading capability, the MS series is driven to its full capacity by adding extra reflections from the backside of bifacial panels, to increase the power output under low solar radiation conditions.
High Power Generation
With 200% DC input oversizing and 110% AC output overloading capability, the MS series is driven to its full capacity by adding extra reflections from the backside of bifacial panels, to increase the power output under low solar radiation conditions.
200%
DC INPUT OVERSIZING
110%
AC OUTPUT OVERLOADING
OVERVIEW
Model
GW10K-MS
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
16
Number of MPP trackers/Number of Strings per MPPT:
3/1
Weight (kg) :
22.5
Nominal Output Voltage (V) :
220/230/240
Model
GW8500-MS
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
16
Number of MPP trackers/Number of Strings per MPPT:
3/1
Weight (kg) :
22.5
Nominal Output Voltage (V) :
220/230/240
Model
GW6000-MS
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
16
Number of MPP trackers/Number of Strings per MPPT:
3/1
Weight (kg) :
22.5
Nominal Output Voltage (V) :
220/230/240
Model
GW5000-MS
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
16
Number of MPP trackers/Number of Strings per MPPT:
3/1
Weight (kg) :
22.5
Nominal Output Voltage (V) :
220/230/240
