PLC 2.0
99.0% efficiency

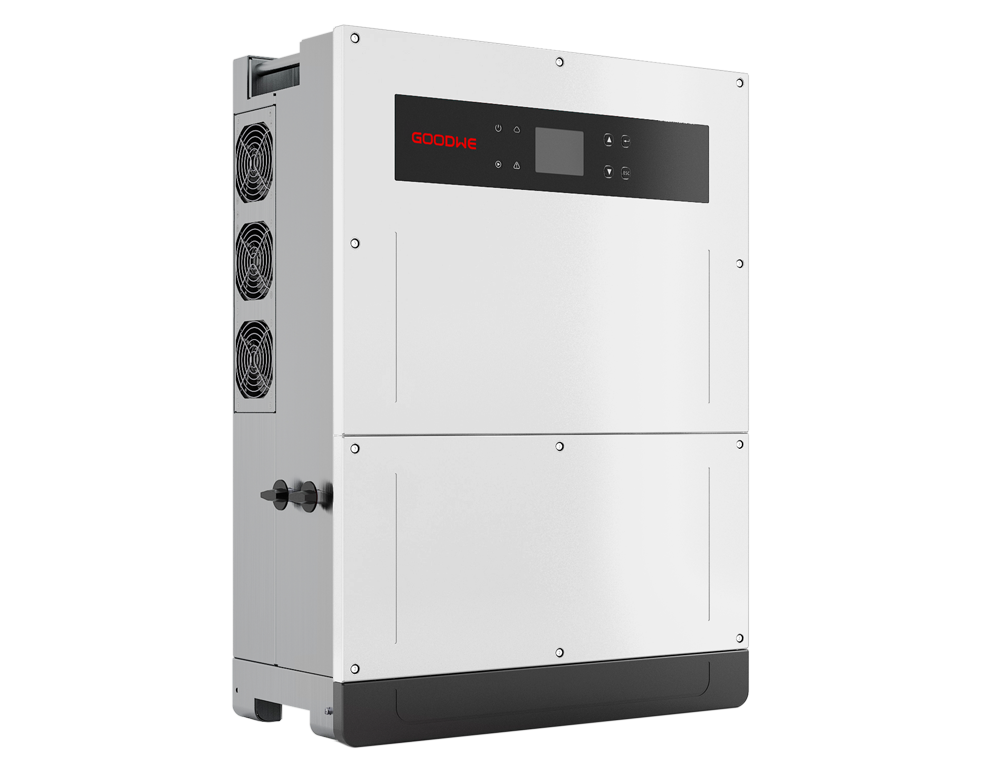

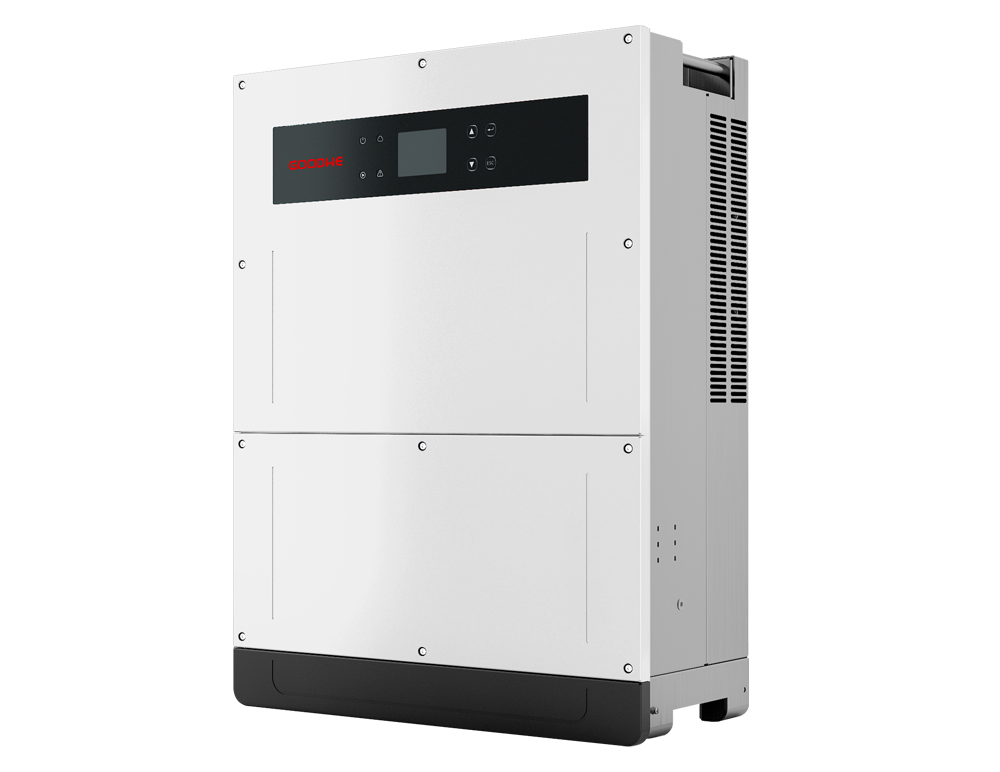

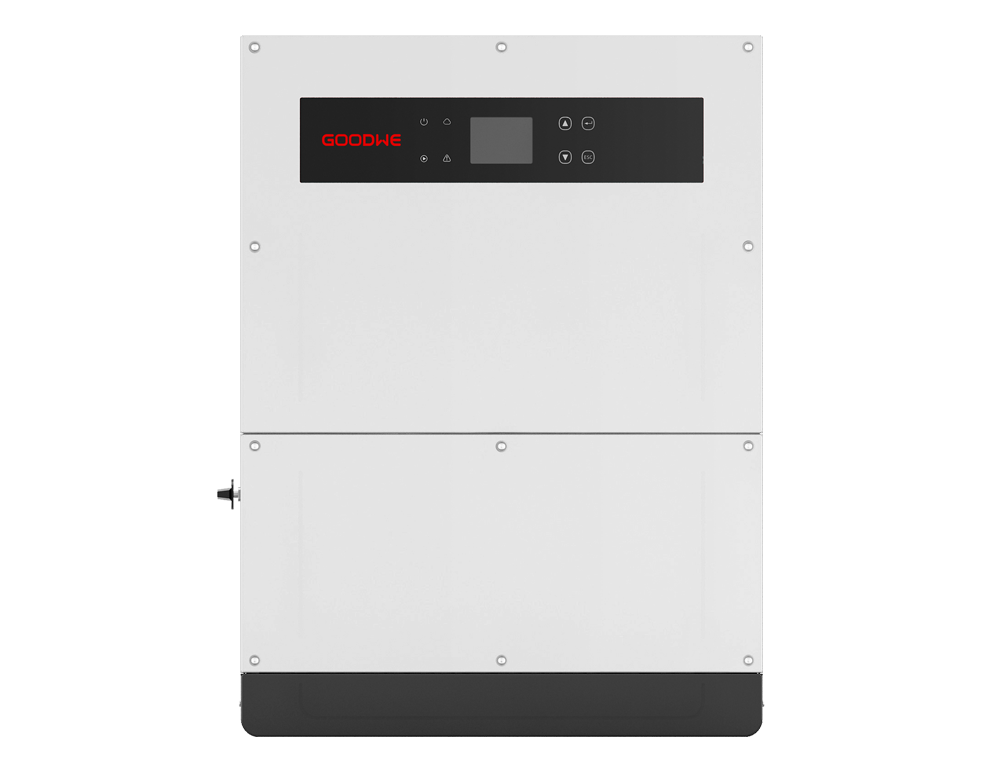

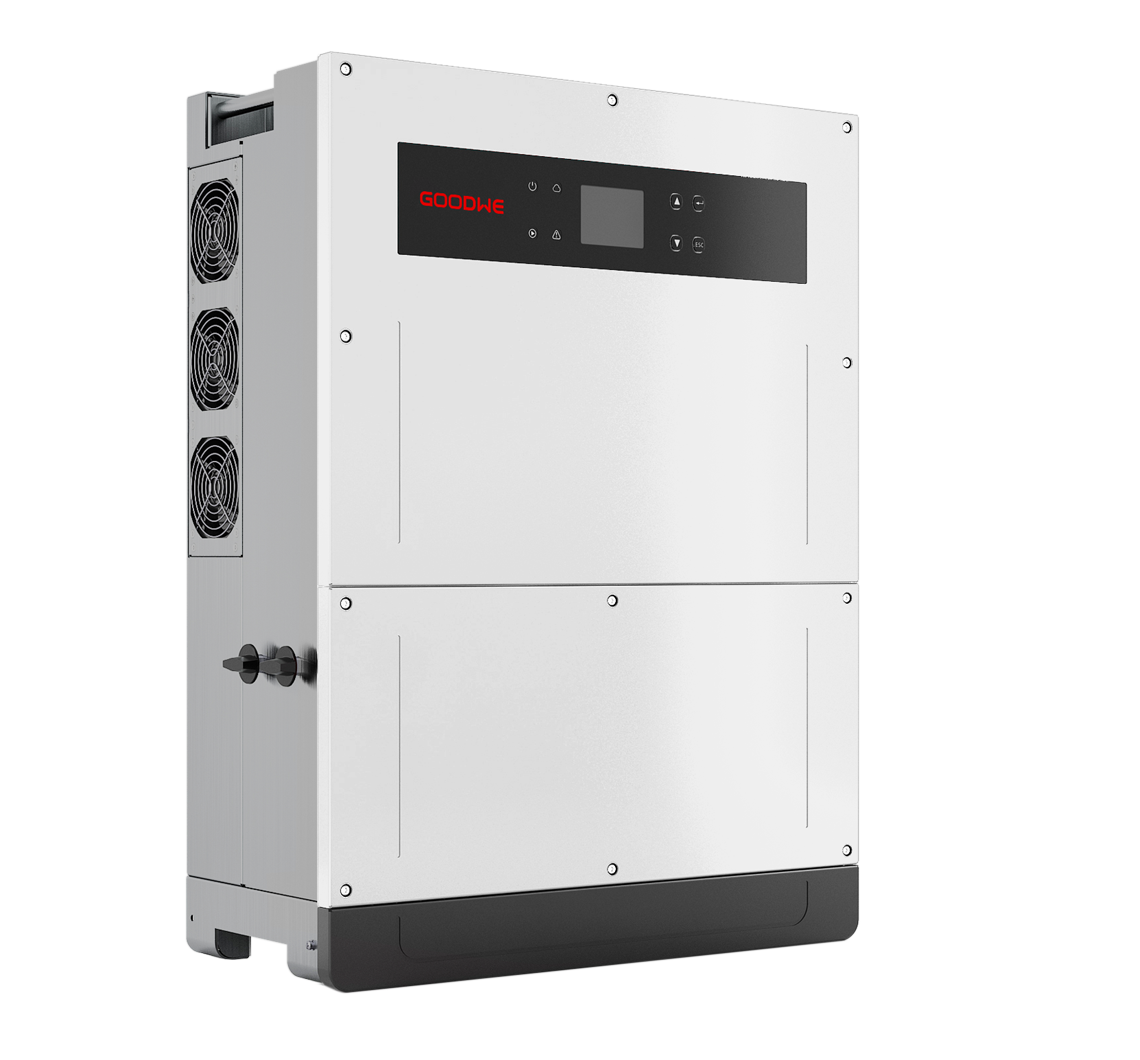

The GoodWe MT series is ideally suited for medium to large scale commercial rooftops and ground-mounted solar PV systems, where maximum versatility and profitability are important. With its compact design and power boost function, the MT series provides a 150% continuous maximum AC output power overload, offering a faster return on investment. The start-up voltage is 200V, much lower than other comparable products on the market, which makes the inverter start up earlier, therefore generating more power over time.
String level monitoring
Up to 150% DC input oversizing
Up to 115% AC output overloading
Up to 99% max. efficiency
Full-load running at 50ºC
Power line communication
PLC 2.0
99.0% efficiency
Four MPPTs Maximize Output
Improve your energy harvest with four MPP trackers to minimize output losses caused by partial shading and other mismatch effects.
High Generation
With 150% DC input oversizing capability, the MT allows users to significantly expand the solar array and drive increased power output even under low solar radiation.
150%
DC INPUT OVERSIZING
115%
AC OUTPUT OVERLOADING
OVERVIEW
Model
GW80K-MT
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
44
Number of MPP trackers/Number of Strings per MPPT:
4/4-3
Max. Efficiency :
98.8%
Nominal Output Voltage (V) :
400, 3L/N/PE or 3L/PE
Model
GW60KN-MT
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
33
Number of MPP trackers/Number of Strings per MPPT:
4/3
Max. Efficiency :
98.8%
Nominal Output Voltage (V) :
400, 3L/N/PE or 3L/PE
Model
GW50KN-MT
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
33/33/22/22
Number of MPP trackers/Number of Strings per MPPT:
4/3-3-2-2
Max. Efficiency :
98.7%
Nominal Output Voltage (V) :
400, 3L/N/PE or 3L/PE
