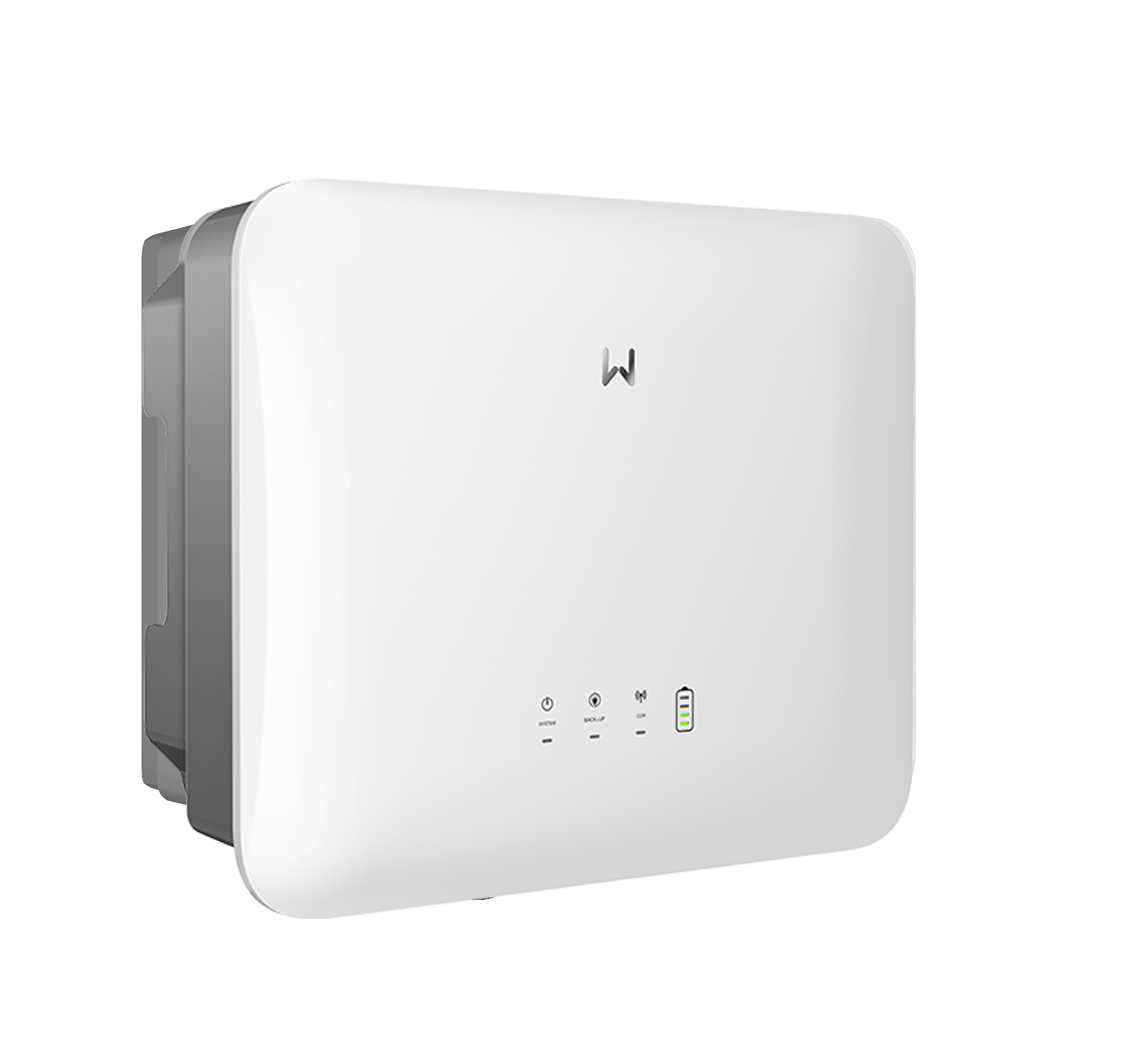

SBP G2 Series
3.6-6kW │ Single Phase | AC-coupled retrofit inverter (LV)
DOWNLOAD PDF >>
.png)
Plug & Play
Elegant & compact
The GoodWe SBP G2 Series, is an AC-coupled inverter designed for retrofitting to existing single-phase or three-phase on-grid PV systems, providing an energy storage solution by adding a battery. The inverter is compatible with low-voltage batteries ranging from 40 to 60V such as the GoodWe Lynx Home U Series batttery, allowing surplus electricity to be stored for later use. The integrated plug-and-play features, compact design, and minimal weight provides easy installation, operation, and maintenance. The SBP G2 has the functionality of providing UPS-level switching to back-up mode in less than 10ms, ensuring a stable and reliable power supply.
Remote Shutdown
IP65 ingress protection
Elegant and compact design
<10ms UPS-level switching
Plug & Play
Elegant & compact
Smart Control for Smart Energy
SBP G2 Series can make a smart UPS-level switching to a back-up mode in less than 10ms, ensuring the critical loads experience no interruption. Supporting a variety of communication protocols, SBP G2 Series makes the integration of smart home systems for users' custom needs possible. Easy, smart, and intuitive.
<10ms UPS-level switching
Smart home integration with multi-protocol communications
Flexible & Adaptable Applications
GoodWe SBP G2 is suitable for both single-phase & three-phase systems, adapting to various architecture conditions of users. As an AC-coupled battery storage retrofit inverter, it can effectively upgrade an existing single-phase or three-phase on-grid PV system into an energy storage system by adding a battery.
AC-coupled battery storage retrofit solution
Suitable for both single-phase & three-phase systems
OVERVIEW
Model
GW6000-SBP-20
Battery Voltage Range (V)
40~60
Max. Continuous Charging / Discharging Current(A)
120/120
Nominal Output Voltage (V)
220/230/240
Max. Apparent Power Output to Utility Grid (VA)
6000
Back-up Nominal Apparent Power (VA)
6000
Model
GW5000-SBP-20
Battery Voltage Range (V)
40~60
Max. Continuous Charging / Discharging Current(A)
120/120
Nominal Output Voltage (V)
220/230/240
Max. Apparent Power Output to Utility Grid (VA)
5000
Back-up Nominal Apparent Power (VA)
5000
Model
GW3600-SBP-20
Battery Voltage Range (V)
40~60
Max. Continuous Charging / Discharging Current(A)
75/75
Nominal Output Voltage (V)
220/230/240
Max. Apparent Power Output to Utility Grid (VA)
3680
Back-up Nominal Apparent Power (VA)
3680
