200% oversizing
98.4% efficiency

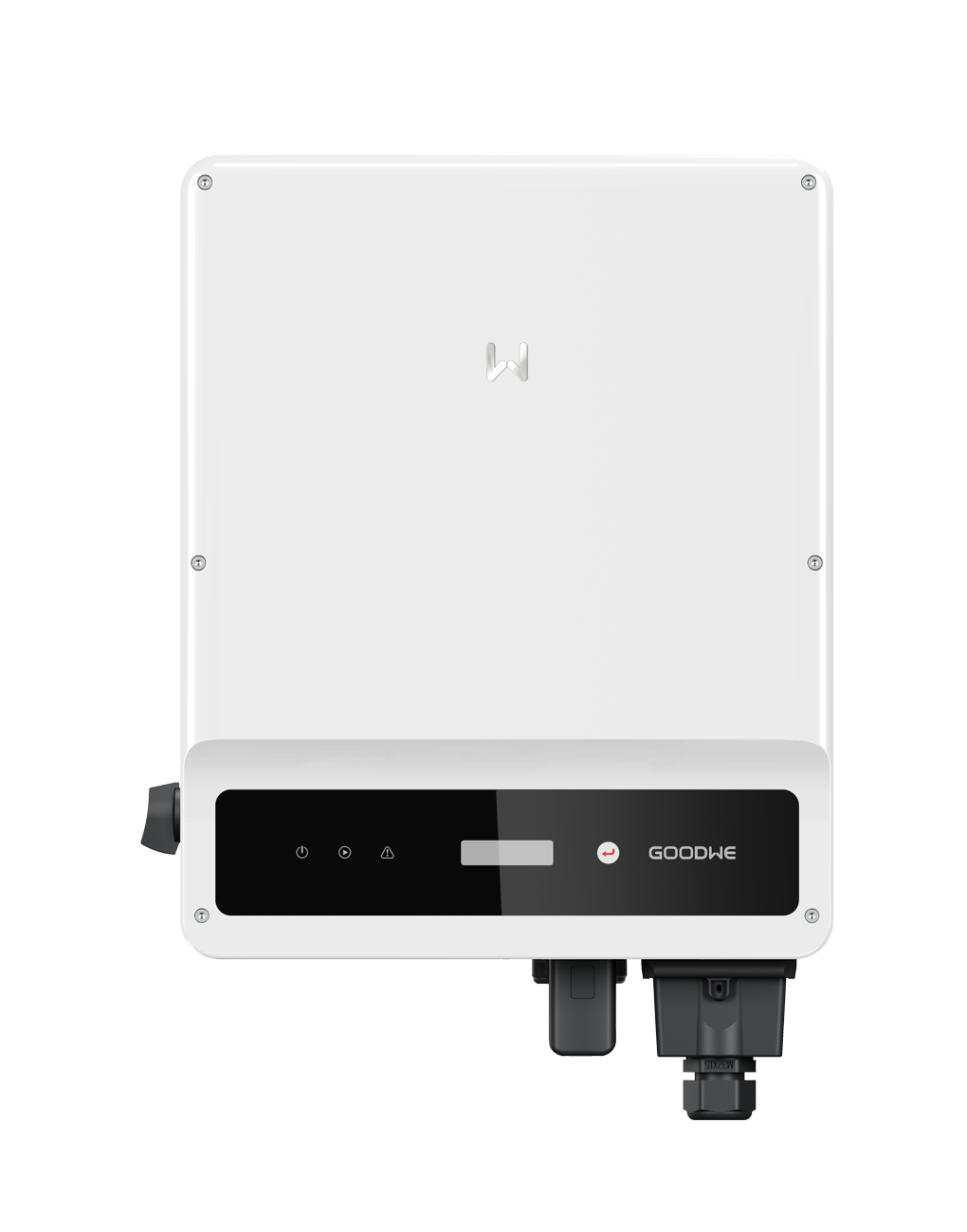

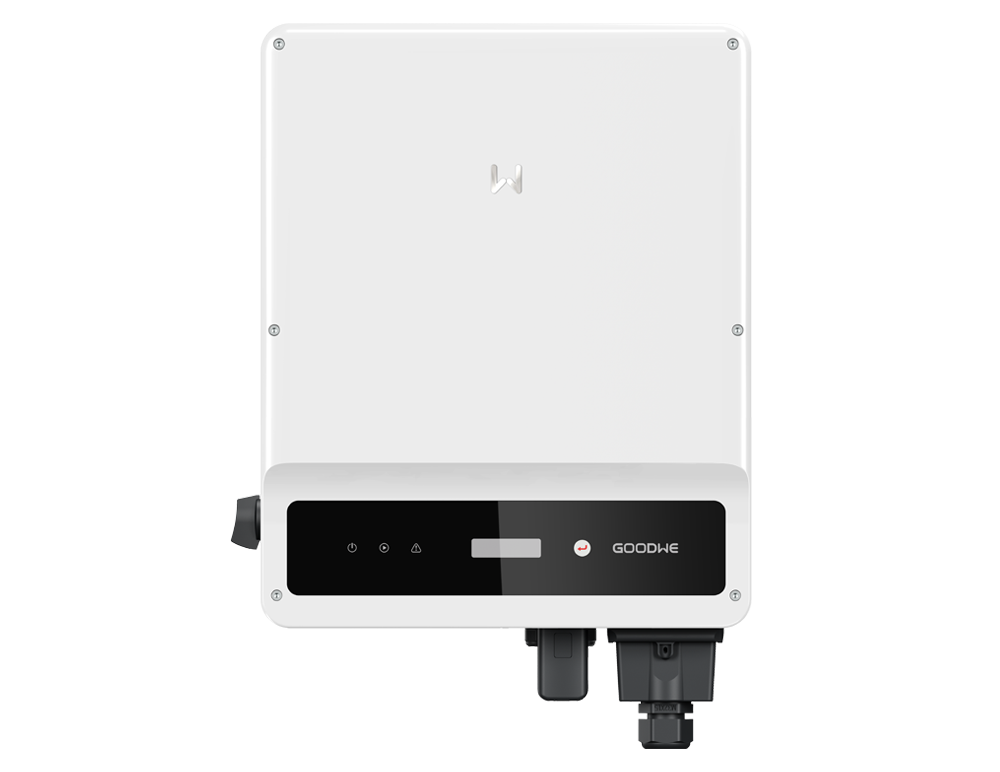

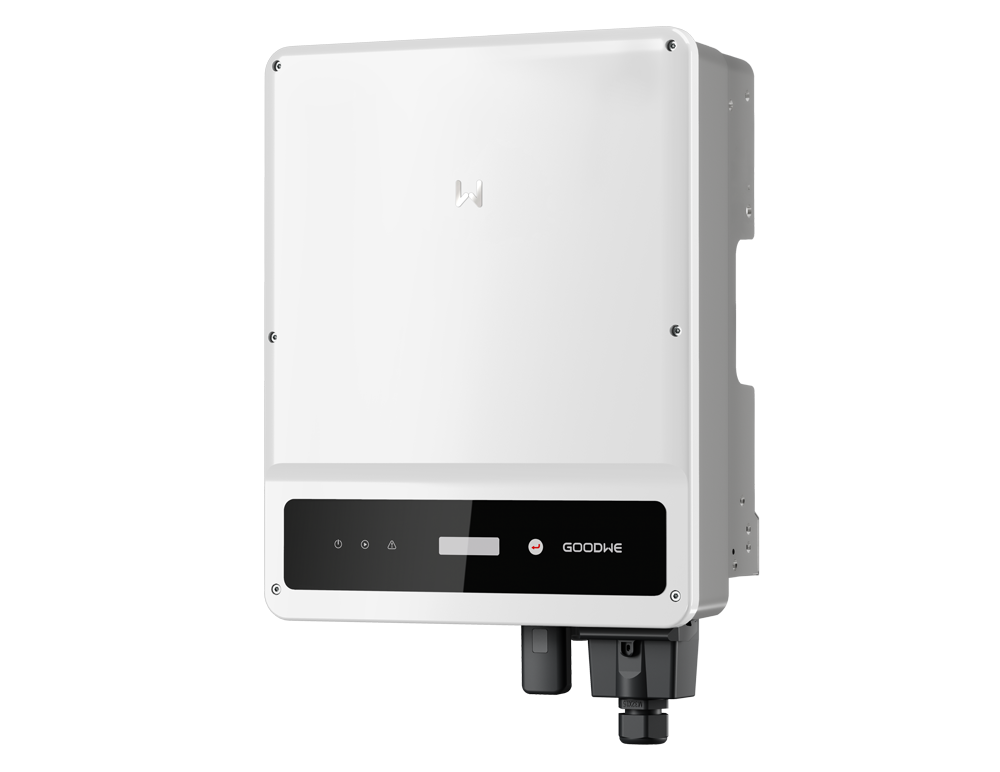

The GoodWe 8-20 kW SDT G2 PLUS+ series inverter is specially designed for three-phase residential and small commercial projects. The integrated features of high efficiency allow for optimized power generation during the inverter's service cycle. With its lightweight and easy-to-install design, the SDT G2 inverter offers comfort and great convenience for operators and installers. Users can also take all-around smart control of energy management utilizing the featuring 24-hour load consumption monitoring enabled by GoodWe HK30001. Meet the perfect choice of maximum energy yield for residential and small-scale commercial usage.
Max. 15 A input current per string
200% DC input oversizing & 110% AC output overloading
Compatible with high-power 182mm/210mm modules
Optional AFCI on DC side
Optional exchangeable DC Type II SPD & SPD failure alarm
Fanless design
200% oversizing
98.4% efficiency
Guaranteed Safety
The emphasizing integrated safety features of optional DC-side AFCI, smart SPD failure alarm, and Type II surge protector on DC side can assure the continuous safety of the whole PV system in extreme conditions. The optional DC type II SPD board, thanks to its modular design, is exchangeable for ease of operation and persistent system safety.
Smart Shadow Scan with adjustable scan interval
With Smart Shadow Scan, the MPP tracker scans the maximum power point regularly to make sure the inverter works at the maximum power of PV strings. SDT G2 now enables flexible scan interval settings from 5 minutes to 300 minutes to accommodate different shading environements and boost energy generation efficiency.
High power generation
Being compatible with high power bifacial 182mm/210mm modules, and allowing a maximum 15 A input current per string, the competency of this inverter is considerably improved. The 200% DC input oversizing and 110% AC output overloading capability, and 98.4% maximum efficiency drive your inverter to its full capacity to increase your power output even under low solar radiation conditions.
15 A
MAX. INPUT CURRENT PER STRING
200%
DC INPUT OVERSIZING
110%
AC OUTPUT OVERLOADING
98.4%
MAX. EFFICIENCY
OVERVIEW
Model
GW20K-SDT-20
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
30/30
Number of MPP trackers/Number of Strings per MPPT:
2/2
Weight (kg) :
20
Nominal Output Voltage (V) :
220/380, 230/400, 240/415
Model
GW17K-SDT-20
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
30/30
Number of MPP trackers/Number of Strings per MPPT:
2/2
Weight (kg) :
17
Nominal Output Voltage (V) :
220/380, 230/400, 240/415
Model
GW15K-SDT-20
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
30/30
Number of MPP trackers/Number of Strings per MPPT:
2/2
Weight (kg) :
15
Nominal Output Voltage (V) :
220/380, 230/400, 240/415
Model
GW12KLV-SDT-20
Max. Input Voltage (V):
800
Max. Input Current per MPPT (A):
30/30
Number of MPP trackers/Number of Strings per MPPT:
2/2
Weight (kg) :
12
Nominal Output Voltage (V) :
220/127
Model
GW12K-SDT-20
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
30/30
Number of MPP trackers/Number of Strings per MPPT:
2/2
Weight (kg) :
12
Nominal Output Voltage (V) :
220/380, 230/400, 240/415
Model
GW10K-SDT-20
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
15/15
Number of MPP trackers/Number of Strings per MPPT:
1/1
Weight (kg) :
10
Nominal Output Voltage (V) :
220/380, 230/400, 240/415
Model
GW8000-SDT-20
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
15/15
Number of MPP trackers/Number of Strings per MPPT:
1/1
Weight (kg) :
8
Nominal Output Voltage (V) :
220/380, 230/400, 240/415
