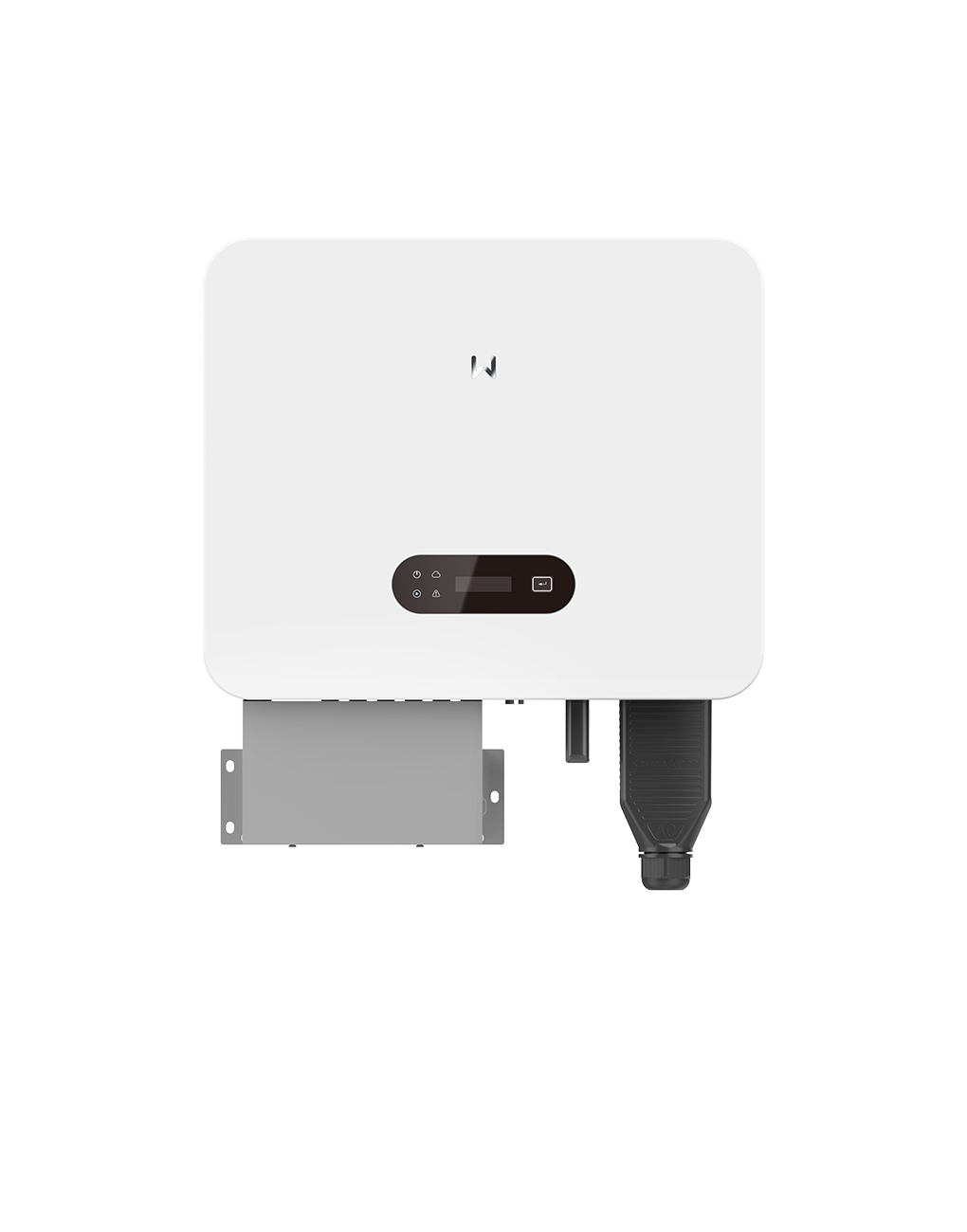

-1.png)
IP66
Light & compact
*The 5-20K models have slight appearance differences.
The GoodWe SDT G3 Series, with a power range of 5-29.9 kW, is specifically engineered to cater to the energy needs of three-phase residential and small commercial projects. The inverter boasts an impressive 150% DC oversizing and 110% AC overloading capabilities, allowing for maximum performance and output even in challenging environments. In addition, the SDT G3 Series inverter's lightweight and easy-to-install design offers exceptional convenience for operators and installers alike.
24/7 load consumption monitoring
.png)
Elegant and compact design
Max. 22A DC input current per string
Optional Type II SPD on both AC and DC sides
IP66
Light & compact
*The 5-20K models have slight appearance differences.
Superb Safety & Reliability
With optional AFCI, the inverter detects arc fault failures, sends alarms through monitoring systems, and breaks the circuit. Optional Type II Surge Protection Device (SPD) on both sides guards against lightning and other hazards.
Optional AFCI
Optional Type II SPD on DC & AC sides

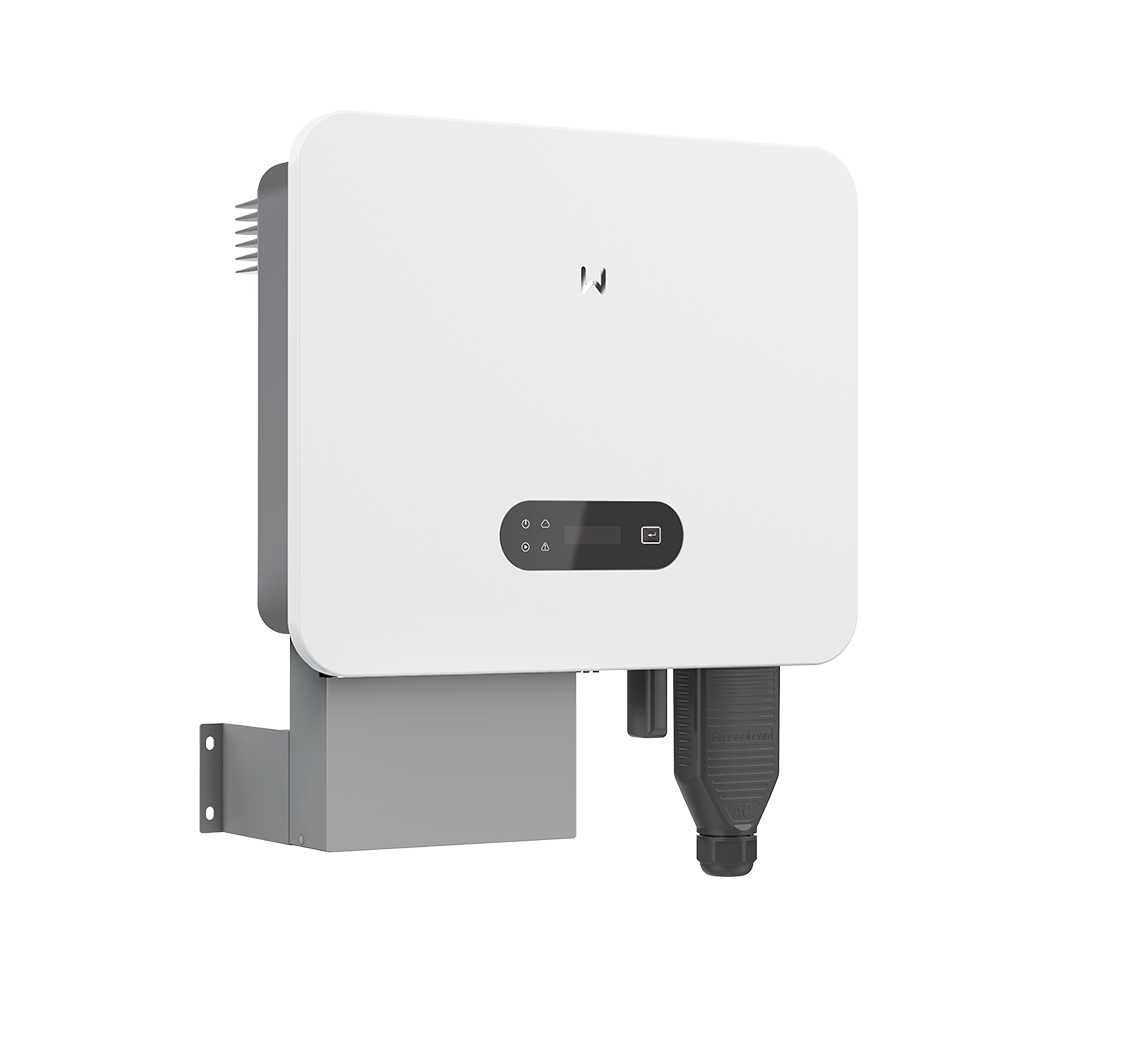

-2.png)
Smart Control & Monitoring
Users can enjoy smart energy management with 24-hour load consumption monitoring enabled by GoodWe's smart meter. Thanks to the integrated export power limit, SDT G3 Series can adapt to the power limit imposed by the local energy provider.
Export power limit
24/7 load consumption monitoring
Optimal Generation
It offers a high maximum input current of 22A per string, ensuring robust performance and efficient energy conversion. Notably, it boasts a substantial 150% DC input oversizing capacity, optimizing energy capture under varying conditions. With a strong focus on efficiency, it achieves a maximum efficiency rating of 98.6%, making it a reliable choice for solar energy applications.
22
Max. 22A input current per string
150%
DC input oversizing
98.6%
Max. Efficiency
OVERVIEW

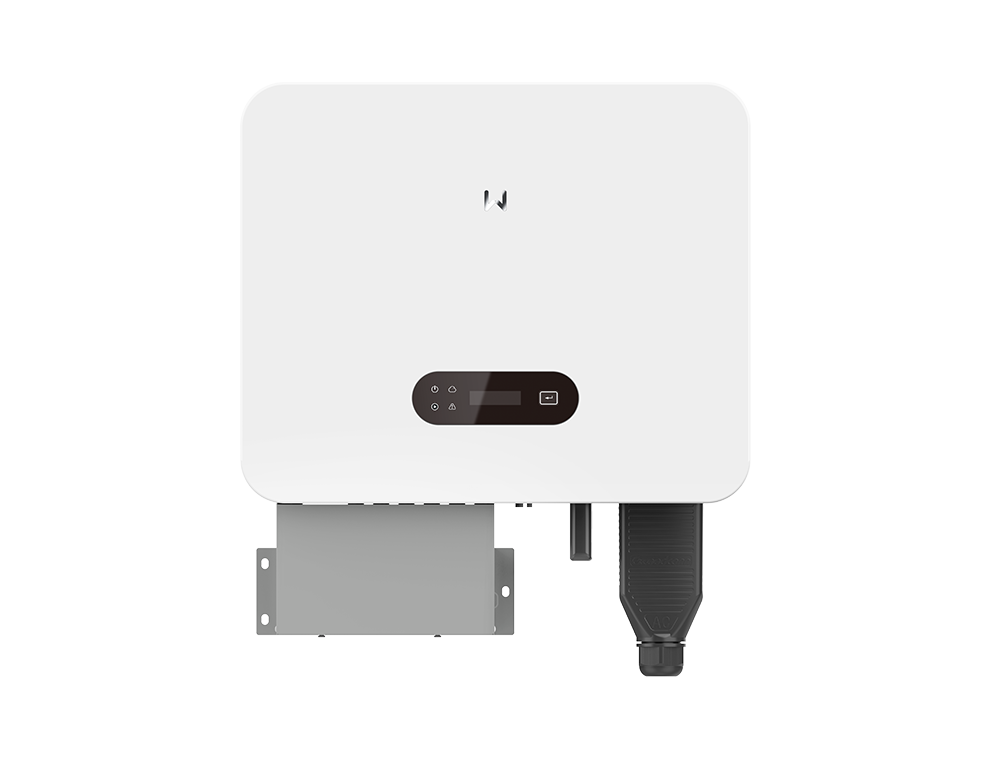

-31.png)

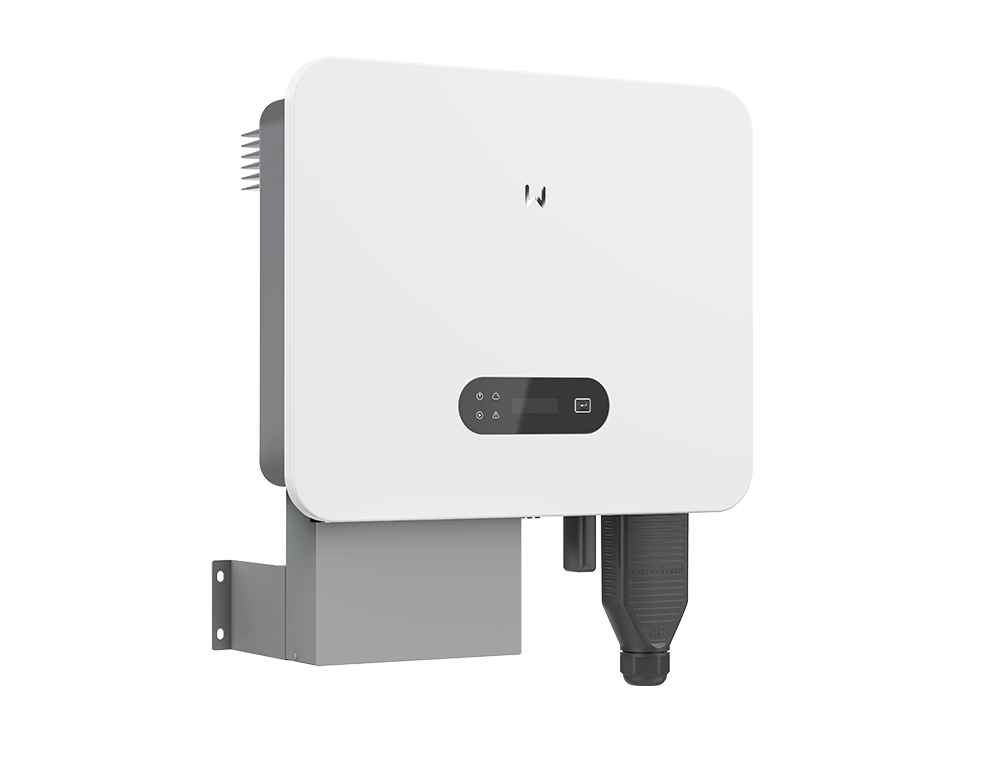

-32.png)

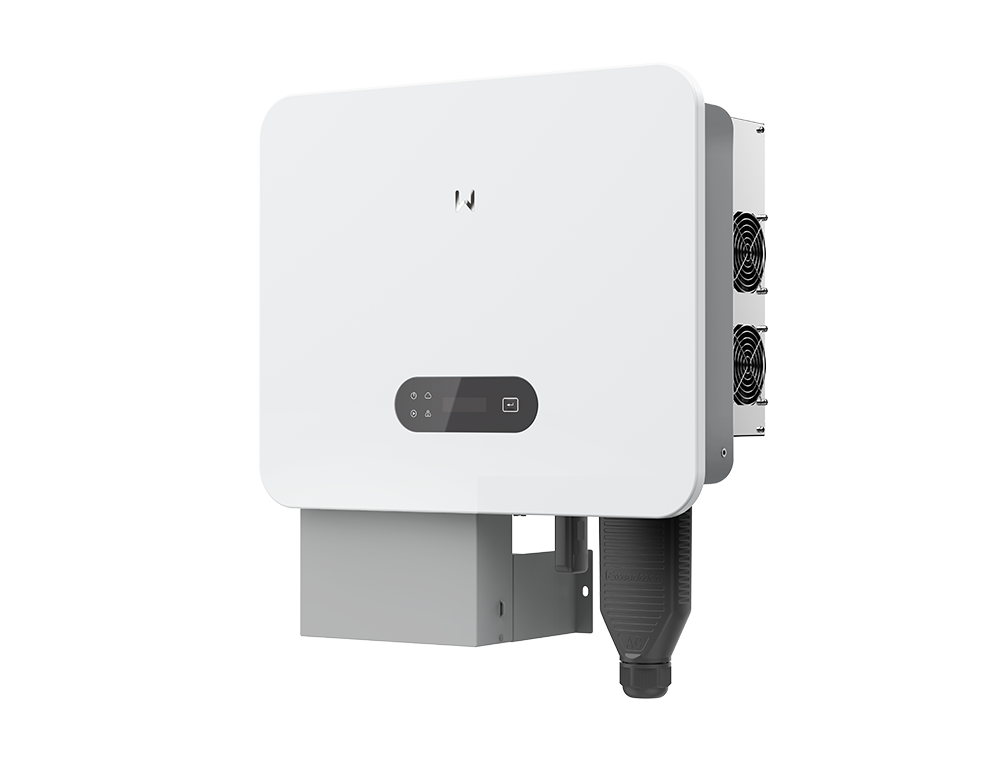

-33.png)
Model
GW29K9-SDT-AU30
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
40 / 40 / 40
Number of MPP trackers/Number of Strings per MPPT:
3 / 2
Weight (kg) :
<30
Nominal Output Voltage (V) :
230 / 400, 3L / N / PE or 3L / PE
Model
GW25KSDT-AU30
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
40 / 40 / 40
Number of MPP trackers/Number of Strings per MPPT:
3 / 2
Weight (kg) :
<30
Nominal Output Voltage (V) :
230 / 400, 3L / N / PE or 3L / PE
Model
GW20KSDT-AU30
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
32 / 32 / 16
Number of MPP trackers/Number of Strings per MPPT:
3 / 2 - 2 - 1
Weight (kg) :
<22
Nominal Output Voltage (V) :
230 / 400, 3L / N / PE or 3L / PE
Model
GW15KSDT-AU30
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
32 / 32 / 16
Number of MPP trackers/Number of Strings per MPPT:
3 / 2 - 2 - 1
Weight (kg) :
<20
Nominal Output Voltage (V) :
230 / 400, 3L / N / PE or 3L / PE
Model
GW9990-SDT-AU30
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
32 / 16 / 16
Number of MPP trackers/Number of Strings per MPPT:
3 / 2 - 1 - 1
Weight (kg) :
<20
Nominal Output Voltage (V) :
230 / 400, 3L / N / PE or 3L / PE
Model
GW8000-SDT-AU30
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
32 / 16 / 16
Number of MPP trackers/Number of Strings per MPPT:
3 / 2 - 1 - 1
Weight (kg) :
<20
Nominal Output Voltage (V) :
230 / 400, 3L / N / PE or 3L / PE
Model
GW6000-SDT-AU30
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
16 / 16 / 16
Number of MPP trackers/Number of Strings per MPPT:
3 / 1
Weight (kg) :
<20
Nominal Output Voltage (V) :
230 / 400, 3L / N / PE or 3L / PE
Model
GW5000-SDT-AU30
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
16 / 16 / 16
Number of MPP trackers/Number of Strings per MPPT:
3 / 1
Weight (kg) :
<20
Nominal Output Voltage (V) :
230 / 400, 3L / N / PE or 3L / PE
