98.8%
40 kG
String level monitoring

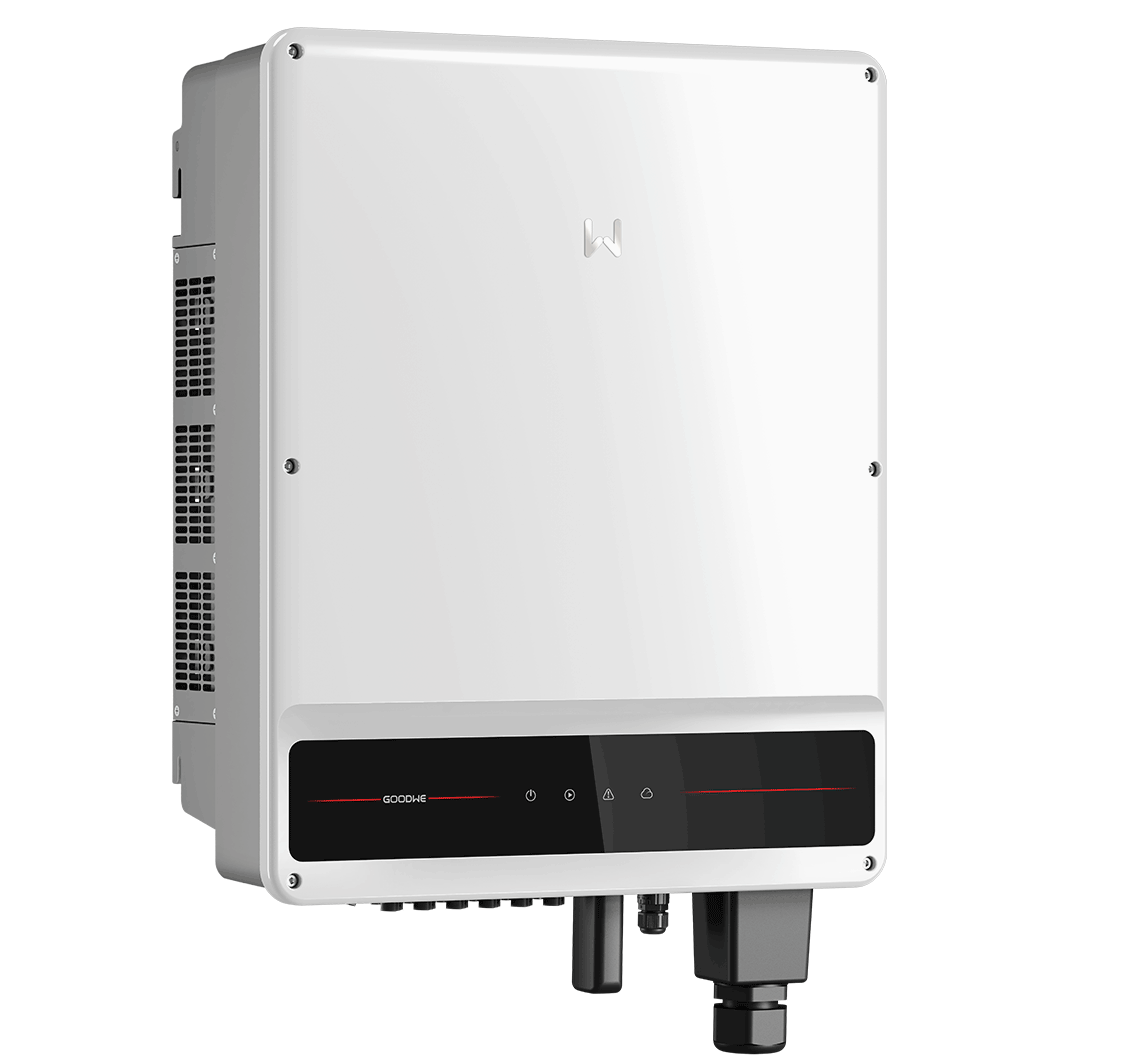

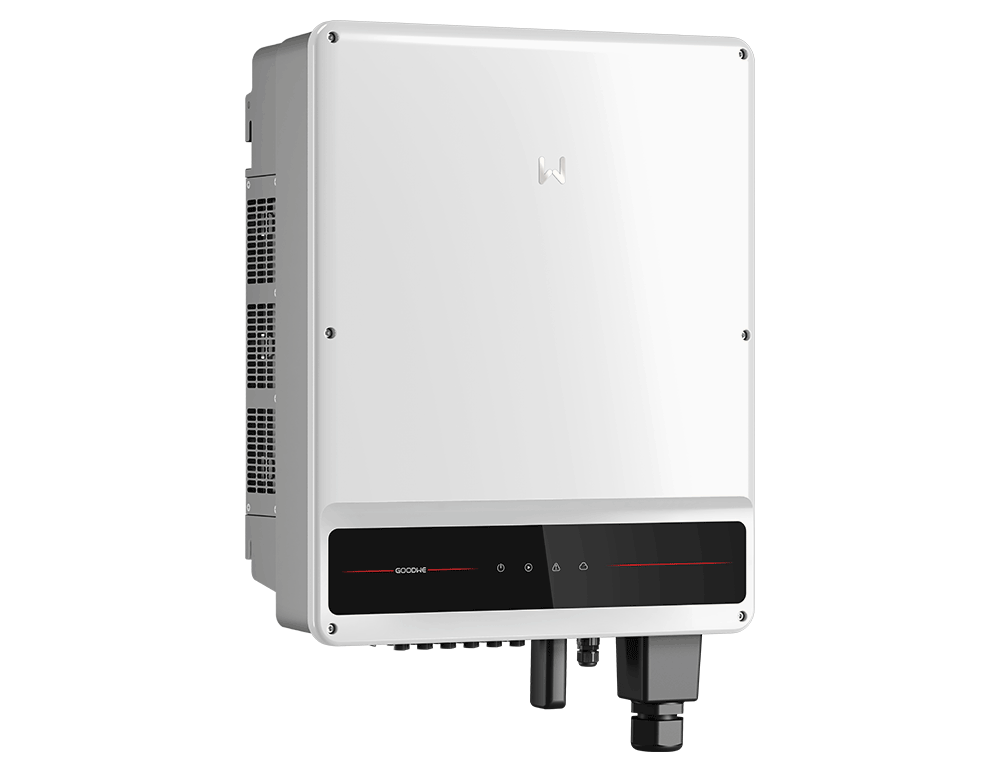

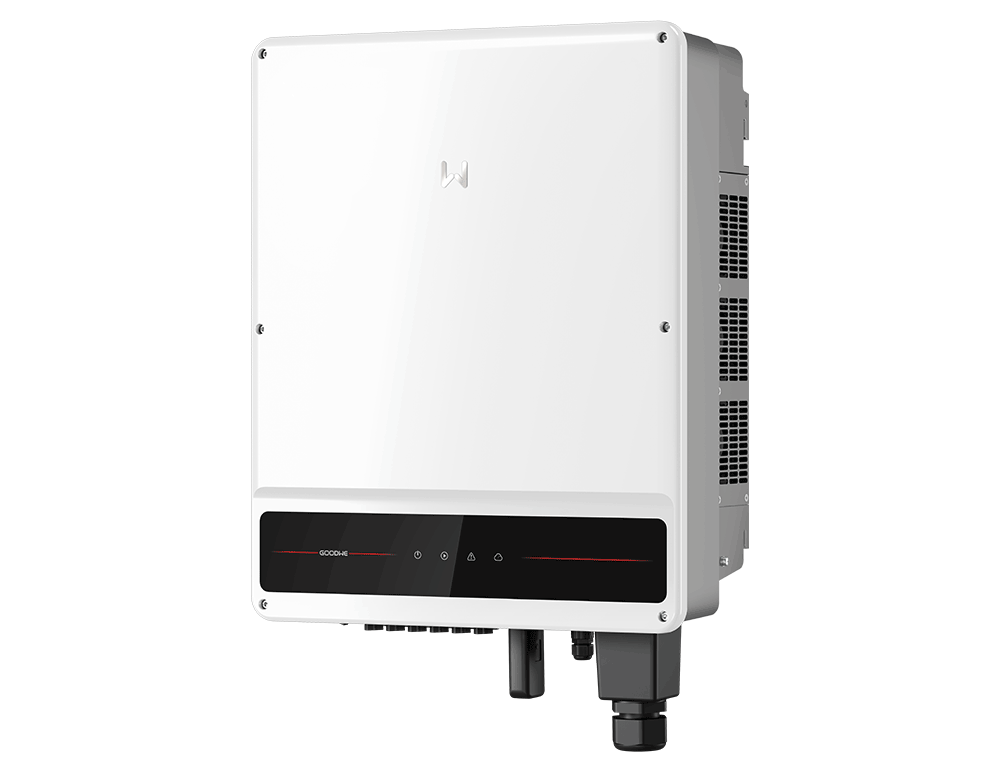

The GoodWe SMT Series features of three phase inverters are ideal for commercial rooftop system solutions. The SMT series achieves a higher maximum efficiency of 98.8% and features unique design highlights including solid capacitors, fuse-free design and optional Arc Fault Circuit Interrupter (AFCI) function. These new features ensure a longer life-span and a higher safety level of operation, allowing for an improved user experience. With a compact design and weight of just 40 kg, the SMT series are more convenient to install. With a maximum DC input voltage of 1100V, wider MPPT range for complex rooftops, and a start-up voltage of 180V, the SMT series guarantees an earlier generation of power and a longer working time in order to maximize long-term returns and profitability in safe operating conditions
98.8% Max. efficiency
Full-load running at 50°C
130% DC input oversizing
String level monitoring
110% AC output overloading
PLC Communication
98.8%
40 kG
String level monitoring
200-950V Wide MPPT Volatge Range
Wide MPPT Range enables the solar system to start at an early stage, fully utilising the daytime to maximise solar powered energy generation, giving the highest yield.
Compatitable with High Power Module
SMT is designed to meet the increasing demand for 182 mm and 210 mm high power modules. With large current input and 130% DC oversizing and 110% AC overloading capacity, the system efficiency is enormously enhanced.
15A
DC INPUT CURRENT
130%
DC INPUT OVERSIZING
110%
AC OUTPUT OVERLOADING
OVERVIEW
Model
GW36K-MT
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
30
Number of MPP trackers/Number of Strings per MPPT:
3/2
Max. Efficiency :
98.8%
Nominal Output Voltage (V) :
400, 3L/N/PE or 3L/PE
Model
GW29.9K-MT
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
30
Number of MPP trackers/Number of Strings per MPPT:
3/2
Max. Efficiency :
98.8%
Nominal Output Voltage (V) :
400, 3L/N/PE or 3L/PE
Model
GW25K-MT
Max. Input Voltage (V):
1100
Max. Input Current per MPPT (A):
30
Number of MPP trackers/Number of Strings per MPPT:
3/2
Max. Efficiency :
98.7%
Nominal Output Voltage (V) :
400, 3L/N/PE or 3L/PE
