Modular Design
Fire Resistance

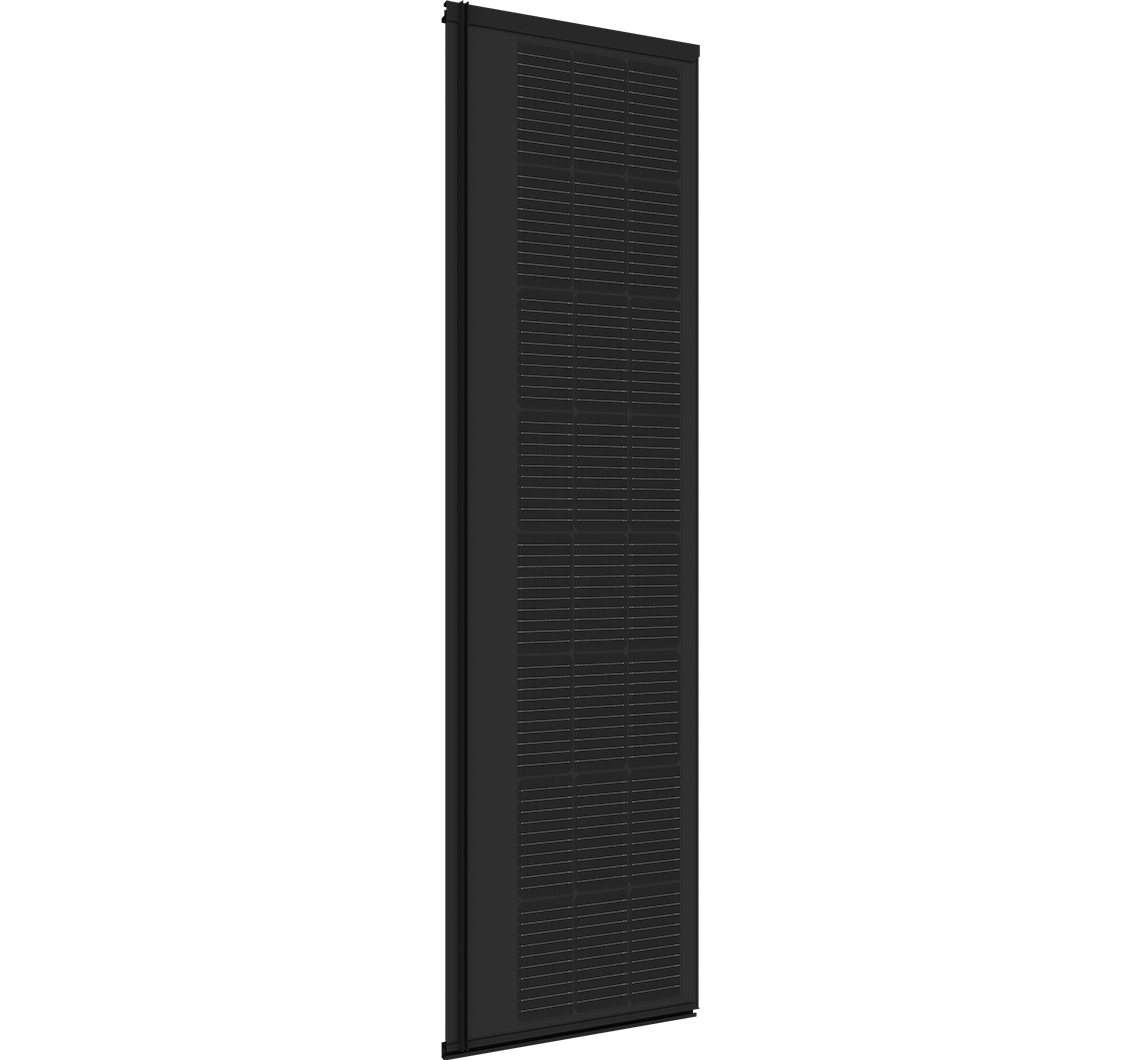

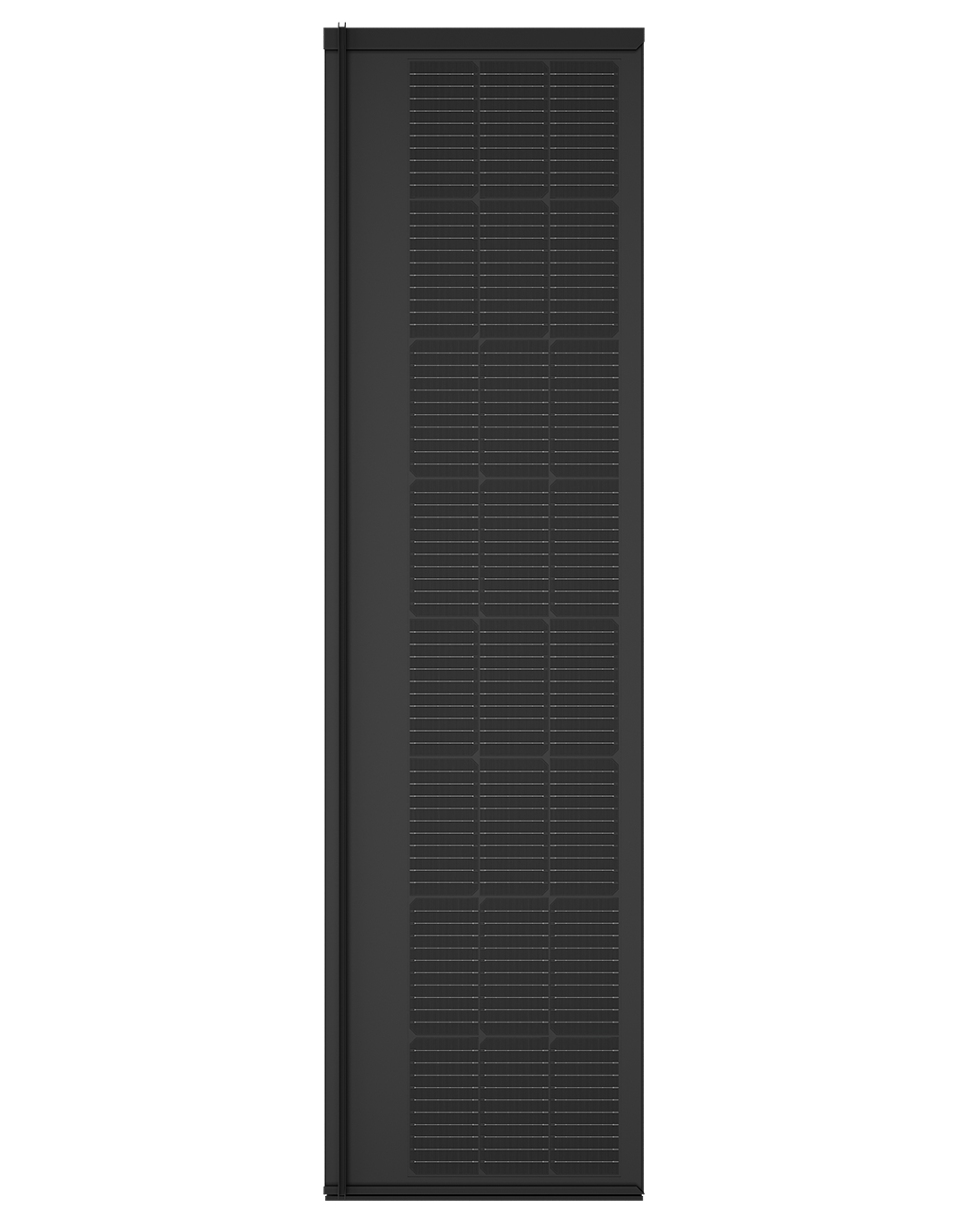

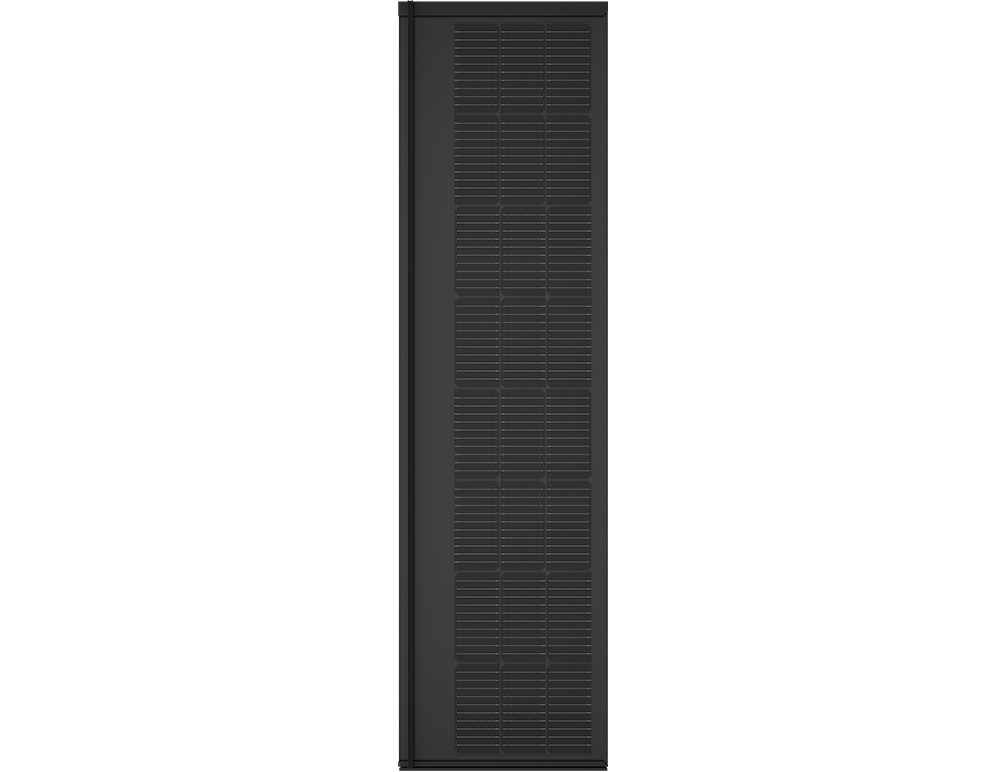

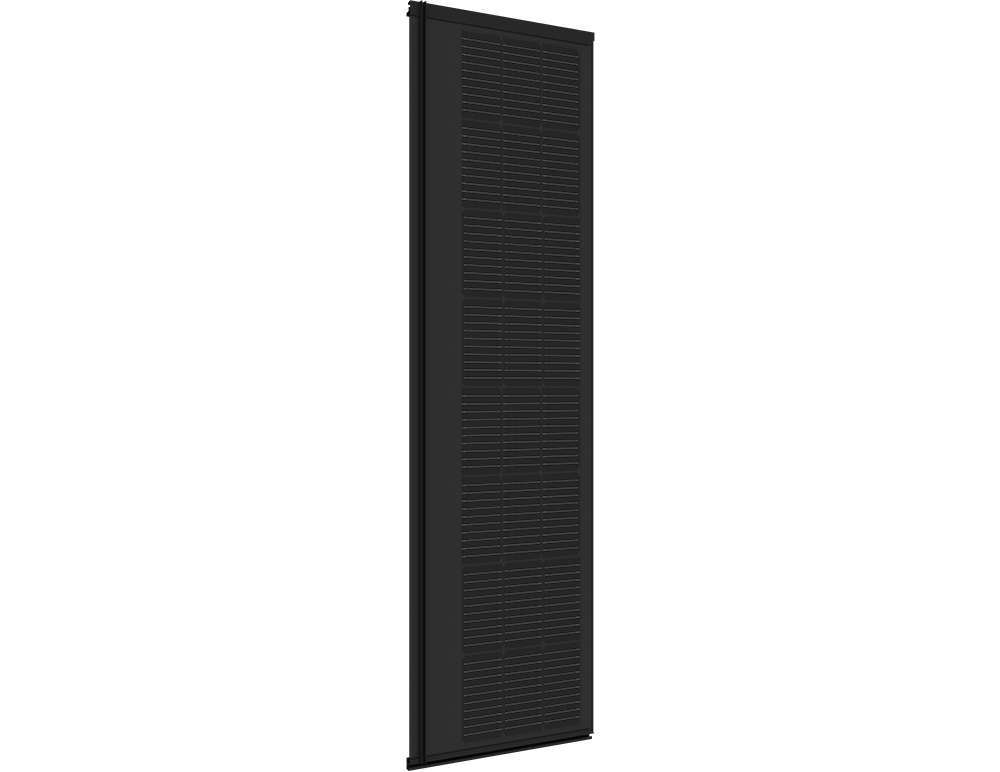

The GoodWe Sunshine Series is an integrated solar roof tile solution for pitched rooftops to replace traditional solar panels and framework for a sleek, aesthetically-pleasing result, that also maximises your rooftop space for more solar production. The integrated tempered double-glass structure ensures the safety of the roof structure. Featuring improved roof ventilation and heat dissipation, as well as fast installation, the Sunshine tiles can not only improve solar power generation efficiency, but also help households lower energy costs while reducing their overall carbon footprint.
Durable
Ultra Safe
Rapid Installation
Aesthetics
Modular Design
Fire Resistance
Ultra Safe
The integrated tempered double-glass structure provides better mechanical performance to protect cells from deformation by fire, wind, and rain, which helps ensure the safety of the roof structure.
Burning block test: 300*300*57mm 30min
Flame spread test: 10min <1.82m
Wind resistance test: Passed 50m/s
Rain test: Passed 9.5L/min
Durable
Sunshine has been certified as a building material and can be used directly for roofing. It is sturdy and durable, with a lifespan that matches that of the building.
Compliant with mandatory certification standards for building materials
Resulting in same life cycle as buildings
Aesthetics
Sunshine has a similar appearance and installation method to traditional roof tiles, with customized colour options to suit most requirements. The end result is a more aesthetically-pleasing rooftop than bulkier, traditional solar panels and framework.
Compatible with most traditional roof tiles
Customized two color options
OVERVIEW
Model
BMT-S2/024A(Ebony)
Size
1556x420x23.5mm
Power
160-175W/m²
Fire Test Rating
Class A
Waterproofing Method
Structural Waterproofing
Function Configuration
Adapted to rapid shutdown, SunSpec compliant/NEC2020-690.12 compliant
