Fanless
Noiseless

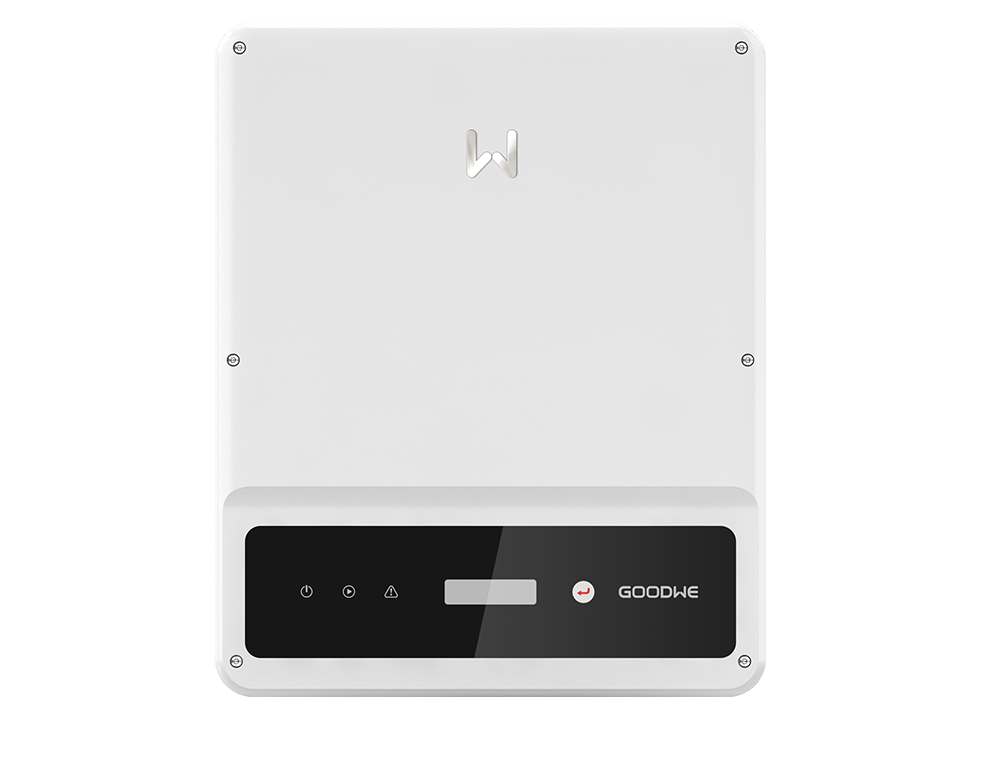

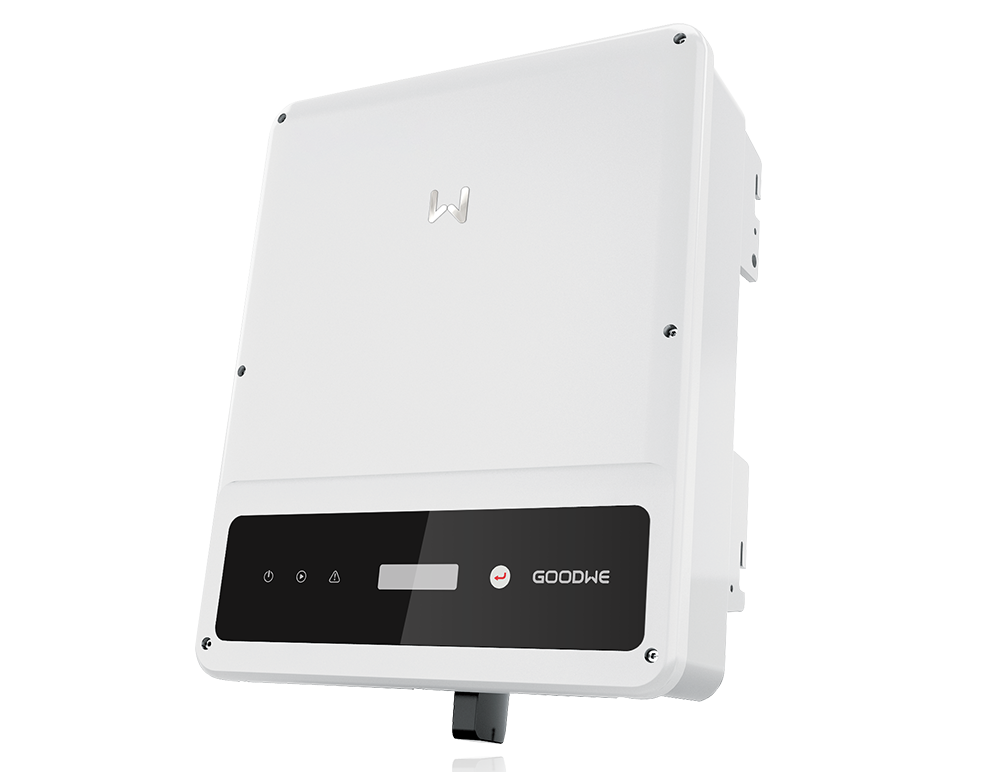

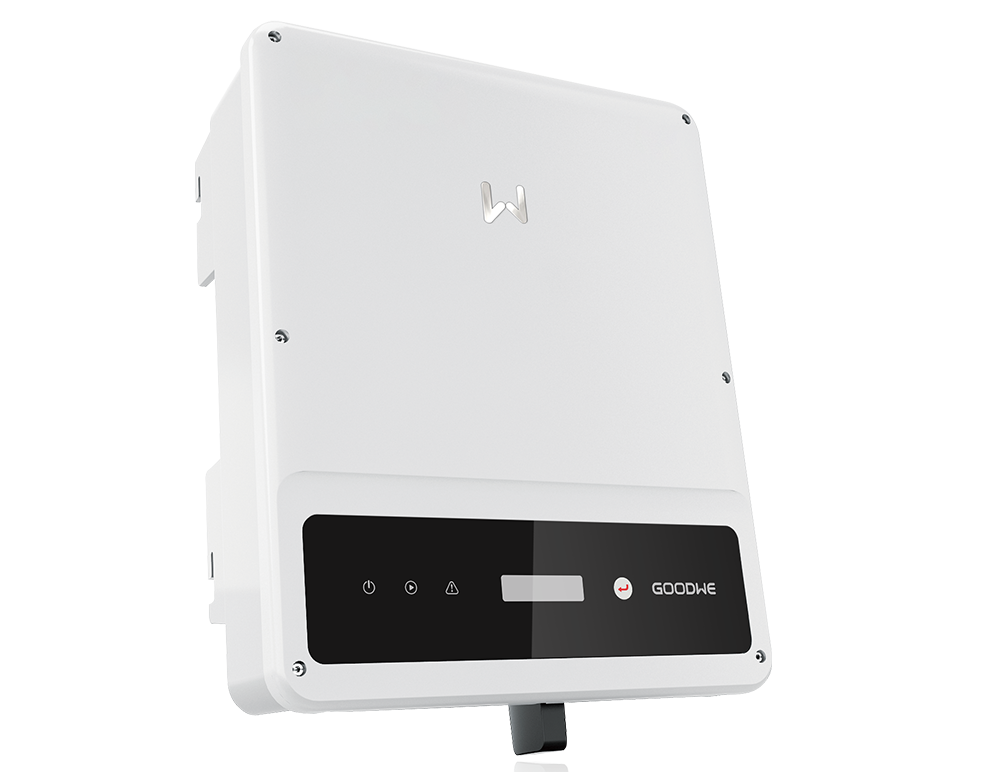

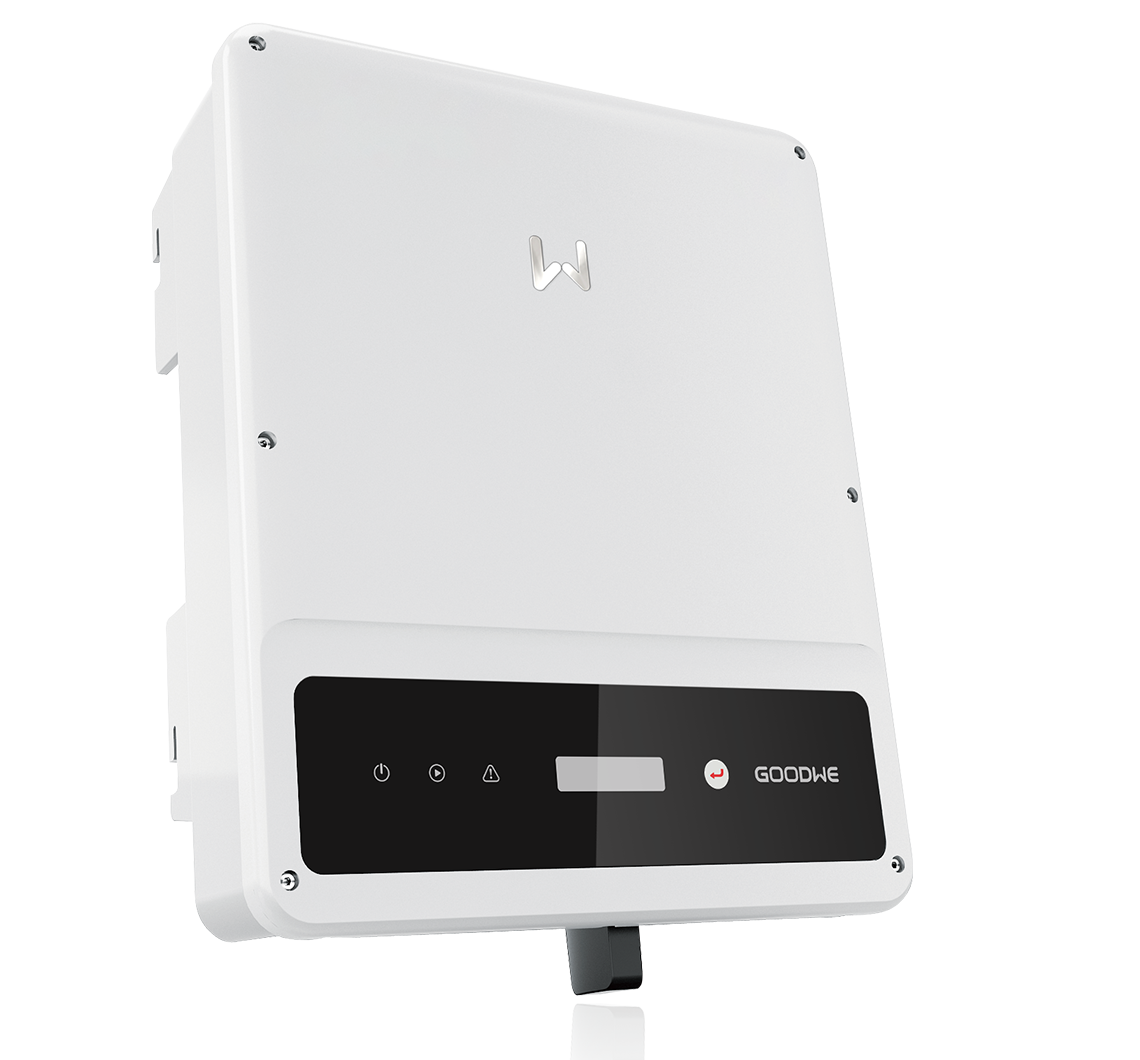

GoodWe DNS series is a perfect solution for residential installations thanks to its compact size. Manufactured for durability and longevity under modern industrial standards, the DNS series is IP65 rated so it can be mounted either indoors or outdoors. With a low start-up voltage of only 80V and the widest MPPT voltage range of 80-550 V, these inverters can provide great versatility for many household systems. The GoodWe DNS series is also 30% lighter than other inverters in its class, making installation more convenient.
80V start-up voltage
Wide range of MPPT voltage
Fanless and noiseless
Small, light weight & easy to install
Export control
Flexible communication methods
Fanless
Noiseless
Export Control
Control the amount of power exported to the grid up to zero output, in compliance with your electricity utility's requirements.
Easy Installation & Maintenance
With its compact size and light weight (30% lighter than other similar inverter products), installation is extremely convenient. Simplified wiring and smart design also reduces maintenance.
Various communication options
30% Lighter than similar products
20% Volume optimization
OVERVIEW
Model
GW4200T-DS
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
13
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
13.0
Nominal Output Voltage (V) :
220/230
Model
GW5000T-DS
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
13
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
13.0
Nominal Output Voltage (V) :
220/230
Model
GW3000T-DS
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
13
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
13.0
Nominal Output Voltage (V) :
220/230
Model
GW5000D-NS
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
11
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
13.0
Nominal Output Voltage (V) :
220/230
Model
GW4200D-NS
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
11
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
13.0
Nominal Output Voltage (V) :
220/230
Model
GW3000D-NS
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
11
Number of MPP trackers/Number of Strings per MPPT:
2/1
Weight (kg) :
13.0
Nominal Output Voltage (V) :
220/230
