A4-sized
5.8kg

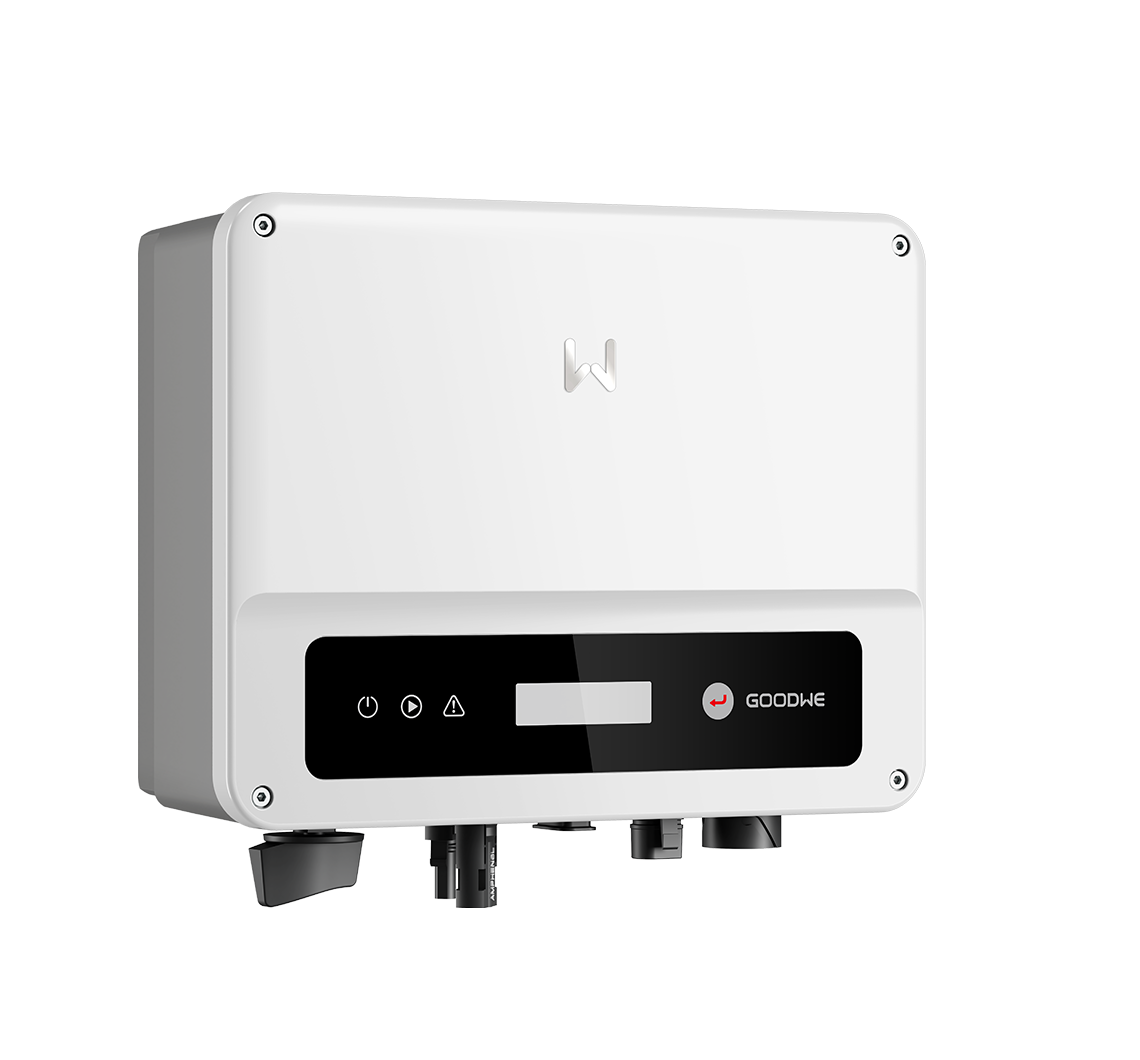

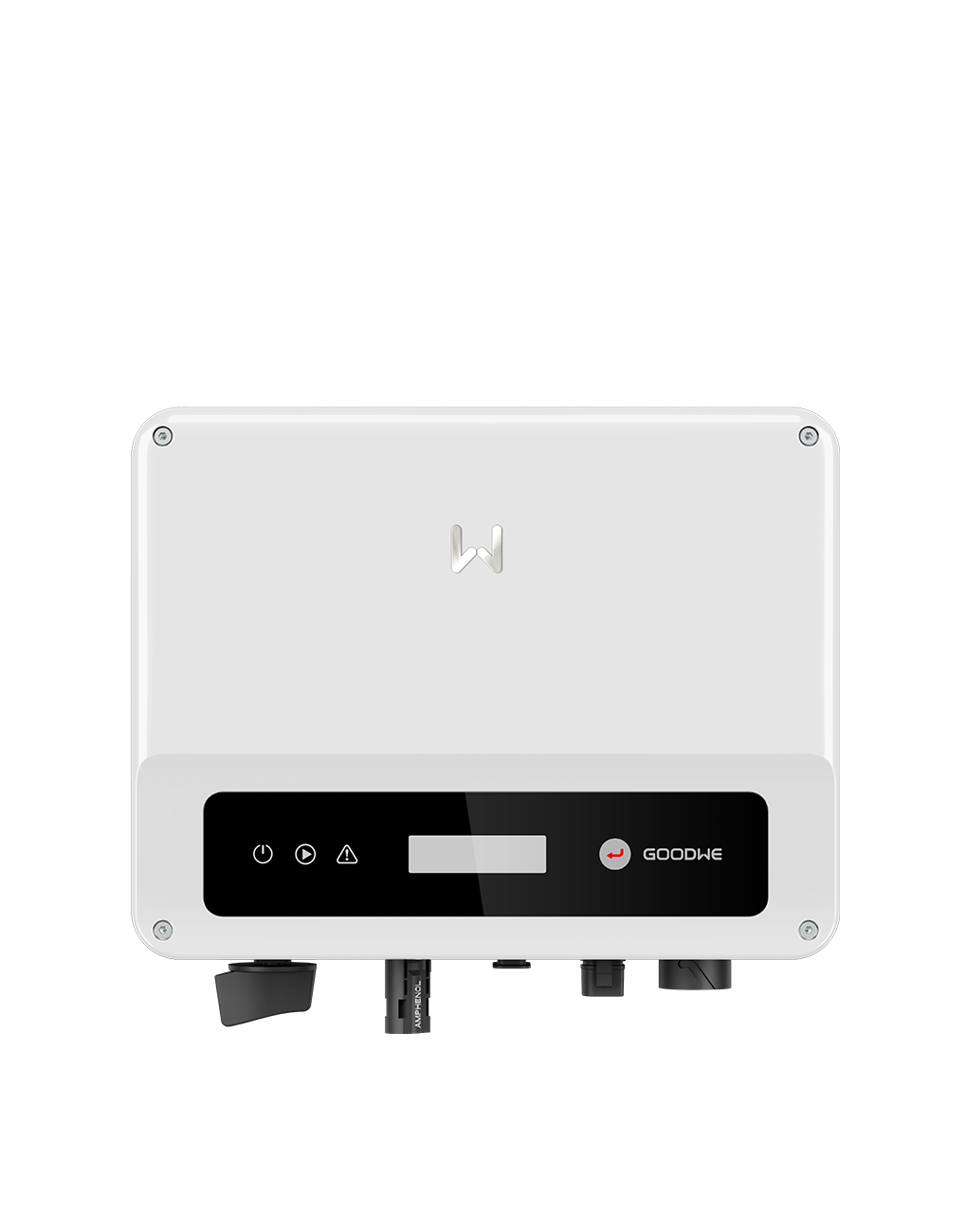

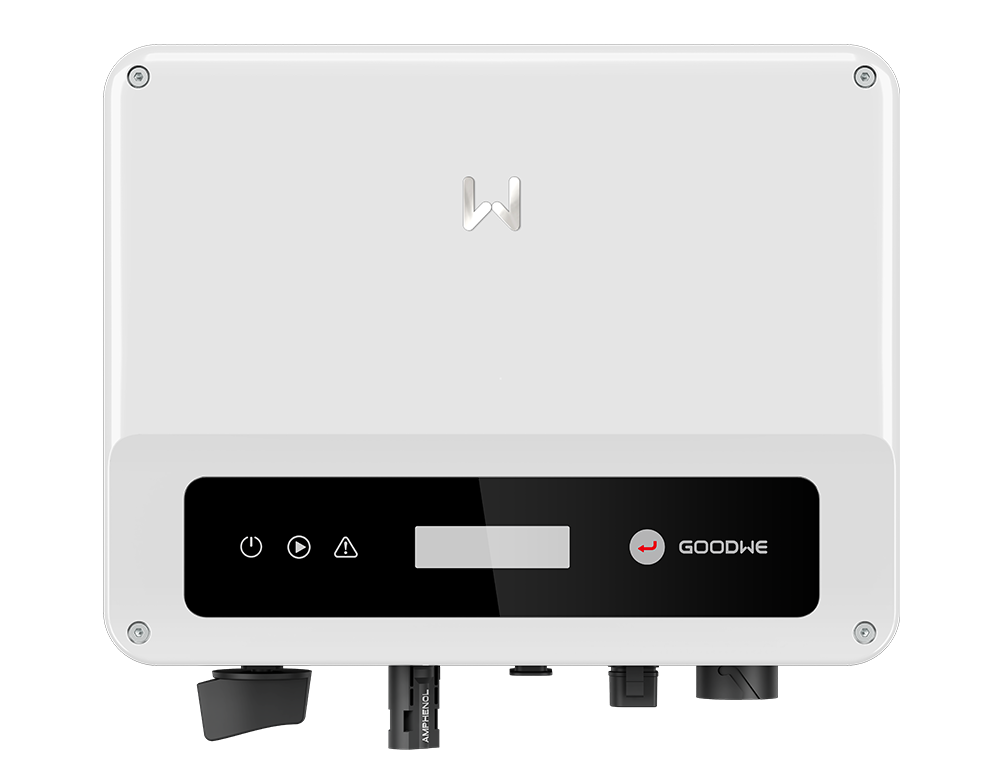

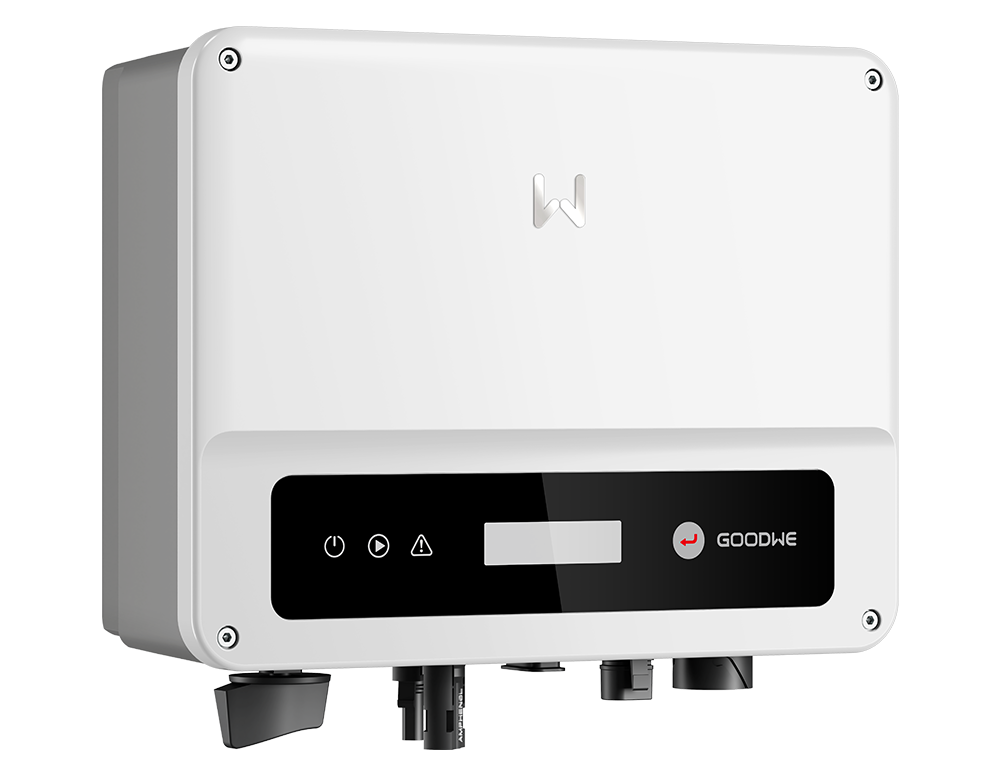

The brand new XS model from GoodWe is an ultra-small residential solar inverter ranging from 0.7kW to 3.0kW. It is specifically designed to bring comfort and quiet operation as well as high efficiency to households. With a fascia size equivalent to a sheet of A4 paper and a weight of just 5.8kg, installation is could not be more convenient. Remarkably, it offers 130% of DC input oversizing and can achieve a maximum European efficiency of 97.2%. Communication options available on this inverter are both LAN and Wi-Fi.
A4 size
Light weight
130% DC oversizing
97.6% Max.efficiency
110% AC overloading
40V start-up voltage
A4-sized
5.8kg
A4 Size,Super Light
Compressing 3kW DC/AC transforming technology into an inverter roughly the length and width of a sheet of A4 paper and weighing less than 6kg, may sound unbelievable, but GoodWe did it! This makes installation much faster and easier, with the added benefits of reduced shipping costs and the ability to carry more stock.
LAN/Wi-Fi Communication
Having both LAN and Wi-Fi communication options means that customers are able to choose the most convenient way to monitor their solar systems. It also allows the customer to switch into another monitoring method after installation.
Small, Light, Compact and Capable!
Even though the XS Series is extremely compact, standard features have not been sacrificed. The XS is still equipped with 130% DC oversizing capability, which allows full load output during extreme weather conditions and what’s more, its European Efficiency can reach 97%.
97.2%
EUROPEAN EFFICIENCY
OVERVIEW
Model
GW3000N-XS
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
13.0
Number of MPP trackers/Number of Strings per MPPT:
1/1
Weight (kg) :
5.8
Nominal Output Voltage (V) :
220/230
Model
GW2500N-XS
Max. Input Voltage (V):
600
Max. Input Current per MPPT (A):
13.0
Number of MPP trackers/Number of Strings per MPPT:
1/1
Weight (kg) :
5.8
Nominal Output Voltage (V) :
220/230
Model
GW3000-XS
Max. Input Voltage (V):
500
Max. Input Current per MPPT (A):
12.5
Number of MPP trackers/Number of Strings per MPPT:
1/1
Weight (kg) :
5.8
Nominal Output Voltage (V) :
230
Model
GW2500-XS
Max. Input Voltage (V):
500
Max. Input Current per MPPT (A):
12.5
Number of MPP trackers/Number of Strings per MPPT:
1/1
Weight (kg) :
5.8
Nominal Output Voltage (V) :
230
Model
GW2000-XS
Max. Input Voltage (V):
500
Max. Input Current per MPPT (A):
12.5
Number of MPP trackers/Number of Strings per MPPT:
1/1
Weight (kg) :
5.8
Nominal Output Voltage (V) :
230
Model
GW1500-XS
Max. Input Voltage (V):
500
Max. Input Current per MPPT (A):
12.5
Number of MPP trackers/Number of Strings per MPPT:
1/1
Weight (kg) :
5.8
Nominal Output Voltage (V) :
230
